Hioki LR8431-20 PRO KIT – Memory HiLogger Kit

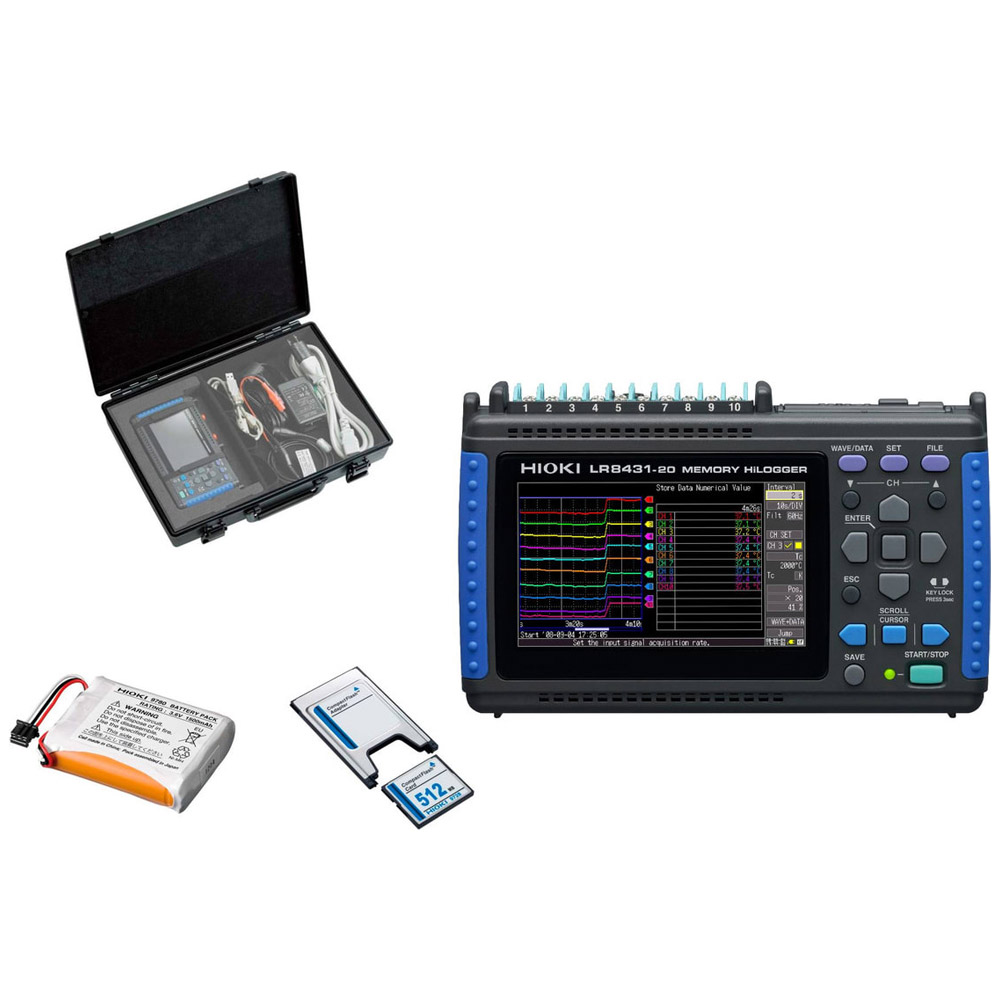

- Kit includes Memory HiLogger (LR8431-20), carrying case (9782), battery pack (9780), PC compact flash card (9728)
- Record measurement data on a USB flash drive for easy transfer to a computer
- Record to reliable Compact Flash cards during long-term measurement applications for increased peace of mind
- Improved thermocouple measurement accuracy and reference junction compensation accuracy
- Ten isolated analog input channels
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, pulse or rotation signals, providing complete isolation between channels and strong noise resistance. The LR8431 logs data at 10ms speeds across 10 channels simultaneously and features a bright color LCD for crystal clear waveform displays.
This compact logger excels in a broad range of settings, from production lines to research and development
For applications such as:
- Evaluating motors and inverters used in electric and hybrid vehicles.
- The LR8431-20 enables stable, low-noise measurement of high-speed, high-resistance targets.
- Efficiency measurement and performance evaluation of air conditioning equipment.
- The LR8431-20 supports simultaneous, multi-point measurement, for example of input and output at multiple air conditioning registers or the temperature of internal components.
- Temperature measurement and performance evaluation of internal components in electronic equipment.
- Used with a wind velocity converter, the LR8431-20 can measure cooling efficiency inside equipment enclosures.
10-channel logger still fits in the palm of your hand
Ultra-compact for convenient portability.
There’s no need to worry about differing potentials of measurement objects when measuring temperature and voltage.
All ten analog channels are isolated.
Even when measuring temperature and voltage at the same time, inter-channel interference and electric shock hazards are eliminated.
The four pulse channels are ideal for counting revolution pulses to measure rotation speed. (Pulse inputs share common ground.)
Featuring USB flash drive and CF card support
The LR8431-20 can record measurement data on a USB flash drive for easy transfer to a computer.
In long-term measurement applications, it can also record to reliable Compact Flash cards for increased peace of mind.
Replace storage media during real-time recording.
Switch out fully loaded storage media with new ones while recording without stopping the measurement so that you can analyze any data recorded so far.
Manufacturer Specs
| Hioki LR8431-20 PRO KIT Specifications | |
| Number of channels | Analog: 10 isolated channels using scanning input method (M3 mm dia. screw terminal block) Pulse: 4 channels (All pulse inputs share common ground with the main unit) |
| Measurement parameters | Voltage : ±100 mV to ±60 V, 1-5V f.s. 6 ranges, Max. resolution 5µV Temperature (thermocouples) : -200 °C to 1800 °C (depend on the sensor), 1 range (K, J, E, T, N, R, S, B), Max. resolution 0.1 °C Temperature (Pt 100 sensor) : not available Humidity : not available Totalized pulses : 0 to 1000M pulse, 1 range (No-voltage ‘a’ contact, open collector or voltage input), Max. resolution 1 pulse Rotation count : 0 to 5000/n (r/s) f.s. 1 range (No-voltage ‘a’ contact, open collector or voltage input), Resolution 1/n (r/s) Note: n = pulses per rotation (1 to 1,000) |
| Max. allowable input | DC 60 V (Analog input), DC -5 V to 10 V (Pulse input)Max. rated voltage to earth: AC 30 Vrms, DC 60 V (Upper limit voltage that does not cause damage when applied between input channel and chassis, and between each input channels) |
| Recording intervals | 10 ms to 1 hour, 19 selections (All input channels are scanned within each recording interval.) |
| Selectable filters | 50 Hz, 60 Hz, or OFF (digital filtering of high frequencies on analog channels) |
| Memory capacity | Internal storage: 3.5 M-words, External storage: CF card or USB memory stick (only the HIOKI CF card is guaranteed for correct operation) |
| External interface | USB 2.0 mini-B receptacle x1; Functions: Control from a PC, Transfers files from the installed CF card to a PC (cannot transfer files from the connected USB memory stick to a PC via USB communication), Data copy between CF card and USB memory stick |
| Display | 4.3-inch WQVGA-TFT color LCD (480 x 272 dots) |
| Functions | Save data to the CF card or USB memory stick in real time, Numerical Calculations, etc. |
| Power supply | AC adapter Z1005: 100 to 240 VAC (50/60 Hz) |
| Battery pack 9780 | Continuous use 2.5 hours |
| 12 V DC supply | 10 to 16 V (please contact HIOKI distributor for cable; less than 3 m/9.84 ft cable length) |
| Dimensions and mass | 176 mm (6.93 in) W x 101 mm (3.98 in) H x 41 mm (1.61 in) D, 550 g (19.4 oz) (Battery pack 9780 not installed) |
| Accessories | Measurement Guide x1, CD-R (Instruction manual PDF, Logger Utility Instruction Manual PDF, Data acquisition application program Logger Utility) x1, USB cable x1, AC adapter Z1005 x1 |
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Type (Recorders) | Data Logger |
| Style (Recorders) | Bench / Portable |
| # Channels Expanded plus Logic (Recorders) | 10 EA |
| # Channels Base Unit (Recorders) | 10 EA |
| Display (Recorders) | Built-in, Included w/ Base Unit |
| Sampling Interval (Controllers/Recorders) | 10 ms |
| Sampling Frequency (Recorders) | 100 S/s (0.0001 MS/S) |
| Input Types (Controllers/Recorders) | Digital / Logic / On-Off, Frequency / Pulse, T/C – RTD, Voltage |
| Output Types (Controllers/Recorders) | Logic / SSR |
| Power Source | AC Line, Battery |
| Screen Size | 4.3 IN |
| Special Functions (Recorders) | External Trigger, Flow / Speed Totalization, PC Software Available |
| Data storage | Yes |
| Isolated Inputs (Recorders) | Yes |
Test Equipment General Attributes |
|
| Unique Features | -Portable data logger with 10 channels |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Interfaces I/O | LAN / Ethernet, Web Host / Web Server, Analog Input , USB |
| Storage | Compact Flash |
| Product Weight | 1.21 LBS |
| Product Height | 1.61 IN |
| Product Length | 1.61 IN |
| Product Width | 6.93 IN |
| Shipping Weight | 2 LBS |
| Data Logging | Yes |
| Battery Type | NimH |
| Country of Origin | Japan |
| Shipping Height | 5.5 IN |
| Shipping Length | 9 IN |
| Shipping Width | 6.5 IN |
