Volt/mA Calibrator

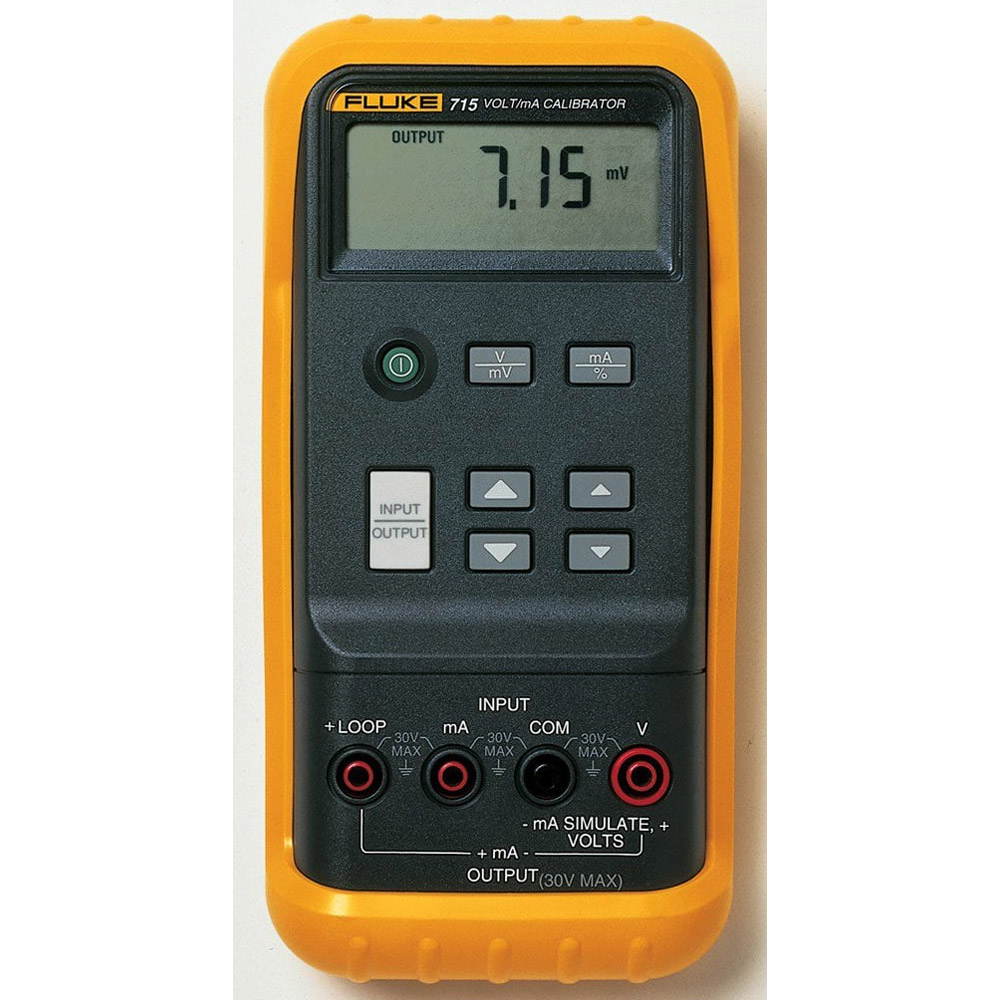

The Fluke 715 Volt/ mA Calibrator delivers outstanding performance, durability and reliability. Offered in the rugged Fluke 80 Series DMM package, the calibrator is compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 715 is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.
In The Box
- Protective Yellow Holster with Test Lead Storage
- Instructions Sheet (14 languages)
- Single 9V alkaline battery
- Test Leads and Alligator Clips
- NIST- traceable calibration report and data
Manufacturer Specs
| Functional specifications | |
| Measure / Source mV | |
| Range: | 0 to 200 mV |
| Resolution: | 0.01 mV |
| Accuracy: | 0.015% + 2 counts |
| Measure / Source V | |
| Range: | 0 to 20 V |
| Resolution: | 0.001 V |
| Accuracy: | 0.01% + 2 counts |
| Measure / Source/ Simulate mA (% of span) | |
| Range: | 0 to 24 mA (-25% to 125%) |
| Resolution: | 0.001 mA |
| Accuracy: | 0.01% + 2 counts Note: Sink (simulate transmitter) Display mA or % of span |
| Specifications | |
| Loop Power | |
| Range: | 24 V dc |
| Accuracy: | +/- 10% Note: Drive; 20 mA into 1000 O for battery >6.8V; 700 O for battery 5.8 to 6.8 V |
| Display | Clear 5 digit LCD |
| Environmental Specifications | |
| Operating Temperature | -10ºC to 55ºC |
| Storage Temperature | -40ºC to 60ºC |
| Humidity (Without Condensation) | 95% (10 ºC to 30 ºC) 75% (30 ºC to 40 ºC) 45% (40 ºC to 50 ºC) 35% (50 ºC to 55 ºC) |
| Operating Altitude | 3,000m max |
| Safety Specifications | |
| Safety | CSA C22.2 No. 1010.1:1992 |
| Mechanical & General Specifications | |
| Size | 187 mm L x 87mm W x 32 mm (7.93 in. L x 3.86 in. W x 2.06 in D) |
| Weight | Approx. 330 g (21 oz) |
| Batteries | One 9V battery Alkaline |
| Warranty | Three years |
| Shock & Vibration | Random, 2G, 5-500 Hz 1m drop test |
| Battery type | Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline |
Tech Specs
Process / Calibration/Milliamp Calibrators Template |
|
|---|---|
| Current Measurement Max | 24 mA |
| Source/Simulate DC Current | Yes |
| Measure DC Current | Yes |
| Two Wire Transmitter Simulation | Yes |
| Percent Display | Yes |
| Simulate Loop Voltage | Yes |
| Backlight | No |
| Ramp/Step Output | Yes |
| FieldBus Compatible | No |
Process / Calibration/Signal Calibrators/Loop Calibrators Template |
|
| Intrinsically Safe | No |
Test Equipment General Attributes |
|
| Product Height | 2.50 IN |
| Product Length | 9.60 IN |
| Product Width | 7.20 IN |
| Data Logging | No |
| Calibration Included | NIST Calibration |
| Country of Origin | China |
| Shipping Height | 2.50 IN |
| Shipping Length | 9.60 IN |
| Shipping Width | 7.20 IN |
