Descripción

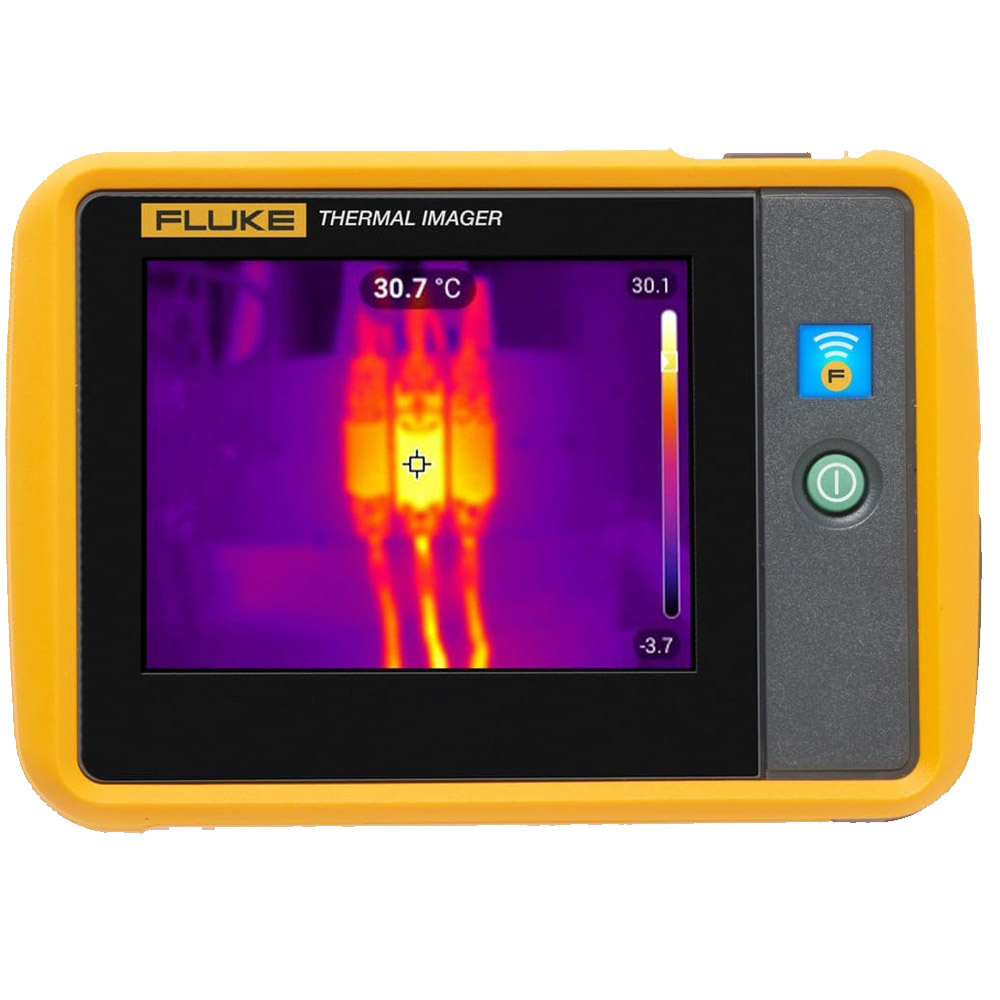

Fluke PTI120 9HZ – Pocket Thermal Imager
- Automatically organize and file thermal images with Fluke Connect® Asset Tagging
- Fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels)
- 3.5” LCD touchscreen display for easy troubleshooting
Rugged portable thermal camera for industrial inspection.
Small enough to carry every day without worry. Pocket sized. Stands up to dirt and water. Quick scans of electrical equipment, machinery and other assets.
The 3.5” LCD touchscreen offers IR-Fusion™ to blend a visible light image with an infrared image to more easily locate problems. Simply slide your finger across the screen to adjust the setting.
With Fluke Connect® Asset Tagging you eliminate the tedium of sorting and organizing your infrared images. By simply scanning your asset’s QR code or barcode, your infrared image and all of your date and time stamped information will be stored to your predefined folders.
Manufacturer Specs
| General Specification | |
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Refresh rate | 9Hz |
| Infrared spectral band | 8 μm to 14 μm (long wave) |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Relative humidity | 95 % non-condensing |
| Center-point temperature | Yes |
| Spot temperature | Hot and cold spot markers |
| Safety | EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery) |
| Electromagnetic compatibility | EN301 489-1 V2.1.1 EN301489-17 V3.1.1 |
| US FCC | CFR, Part 15C |
| Vibration and shock | 2G, IEC 68-2-6 and 25G, IEC 68-2-29 |
| Drop | 1 meter |
| Size (H x W x L) | 8.9cm x 12.7cm x 2.5cm (3.5 in x 5.0 in x 1.0 in) |
| Weight | 0.233 kg (0.514 lb) |
| Enclosure rating | IP54 |
| Warranty | Two-years |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
| IFOV (spatial resolution) | 7.6 mRad |
| Infrared resolution | 120 x 90 (10,800pixels) |
| Field of view | 50° H x 38° V |
| Distance to spot | 130:1 |
| Temperature measurement range(not calibrated below -10 °C) | -20 ° C to 150 ° C |
| Focus system | Fixed focus, minimum focus distance 22.8 cm |
| USB | Mini USB used to transfer image to PC |
| Wifi | Yes |
| Fluke Connect® Instant Upload | Yes, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect® system or your local server for storage and viewing on your PC (802.11 bgn (2.4 GHz)) |
| Image quality | |
| IR-Fusion technology | Yes, adds the context of the visible details to your infrared image |
| AutoBlend mode | Continuous 0% to 100% |
| Touchscreen display | 3.5″ (landscape), 320 x 240 LCD |
| Rugged, ergonomic design | Yes |
| Thermal sensitivity (NETD) | 60 mK |
| Frame rate | 9 Hz |
| Data storage and image capture | |
| Memory | ≥2 GB internal flash memory |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files |
| Software | Fluke Connect® desktop software—full analysis and reporting software with access to the Fluke Connect system |
| Export file formats with software | JPG, IS2 |
| Measurement Range | -20 °C~150 °C |
| Battery | |
| Batteries (rechargable) | Internal rechargeable lithium ion battery. |
| Battery life | ≥ 2 hours continuous (without WiFi) |
| Battery charging time | ≤ 1.5 hours |
| Battery charging system | Micro USB cord from product to PC |
| AC operation | With separate AC to USB adapter. Not included in box |
| Power saving | Automatic Shutdown: 5, 10, 15 and 20 minutes or never |
| Temperature measurement | |
| Temperature measurement range (not calibrated below -10 °C) | -20 ° C to 150 ° C |
| Accuracy | Target temp at or over 0 °C: Accuracy: ± 2° C or ± 2 % |
| On-screen emissivity correction | Yes |
| On-screen reflected background temperature compensation | Yes |
| Color palettes | Standard palettes 6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale |
Tech Specs
Thermal Imagers/Building and Industrial Thermal Imagers Template |
|
|---|---|
| Detector Size | 120 x 90 Sensor |
| Thermal Sensitivity | 60 mK (NETD) |
| Temperature Range Max | 150 C (302 F) |
| Temperature Range Min | -20 C (-4 F) |
| Image Frequency | 9 Hz |
| Field of View | 50 x 38 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | No |
| Focus | Fixed |
| Laser Spot | No |
| Picture in Picture | Yes |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | Yes |
| Accuracy | Accuracy: ± 2° C or ± 2 % |
| Battery operating time Continuous | 2 HR |
| Camera Light | Yes |
| Voice Annotation | No |
| Intrinsically Safe | No |
Test Equipment General Attributes |
|
| Warranty | 2 YEARS |
| Interfaces I/O | Wifi, Micro USB |
| Storage | Internal Memory |
| IP Rating | IP54 |
| Product Weight | 0.514 LBS |
| Product Height | 3.5 IN |
| Product Length | 1 IN |
| Product Width | 5.0 IN |
| Shipping Weight | 0.55 LBS |
| HTS/Schedule B Number | 902750402 |
| ECCN Number | 6A993 |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 8.50 IN |
| Shipping Length | 2.38 IN |
| Shipping Width | 5.07 IN |
