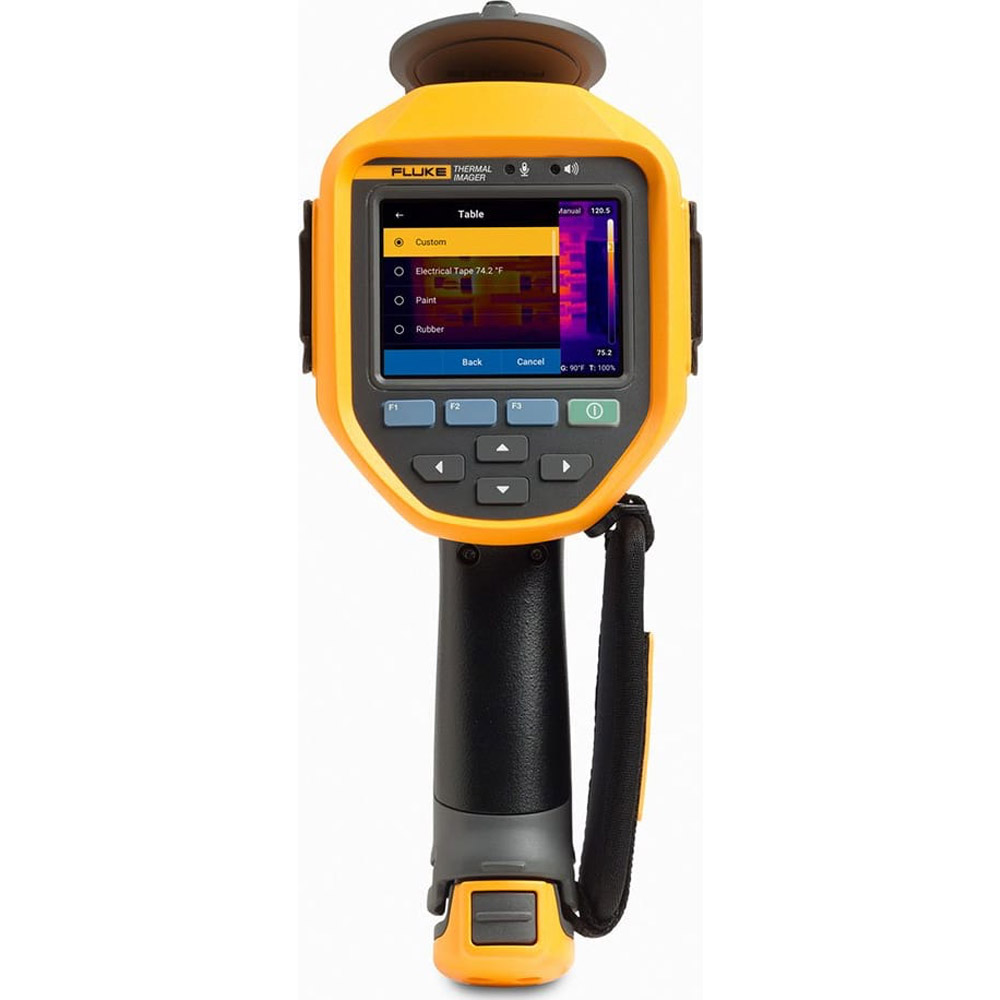

Fluke Ti480 PRO 60HZ Thermal Imager
- Capture a clear, accurate image focused throughout the field of view with MultiSharp Focus
- Reduce the need to take notes in the field with two helpful features; IR-PhotoNotes and voice annotations
- Highlight areas that are outside your pre-set ‘normal’ temperature ranges quickly with color alarms
- More intuitive visual interface, improved, user-tested, touch screen interface
The Fluke PRO series cameras introduce a leading-edge visual infrared experience. Smartest, most intuitive user interface. Increased thermal sensitivity to capture the smallest differences. Latest technology for on-screen clarity. Lens compatibility to capture targets tiny-to-large.
Powerful, easy-to-use Fluke Connect
A comprehensive and connected platform that represents the future of integrated equipment maintenance, monitoring, analysis and reporting. It’s easier than ever to optimize thermal images, perform analytics, generate quick, customizable, robust reports, and export images to the format of your choice in the cloud. And you will be able to integrate with Fluke Connect—the largest integrated system of maintenance software and tools in the world.
- Modern visual design
- Intuitive navigation easier to learn, easier and faster to work in
- Simplified work flows
- Simplified reporting workflow and better report templates
- Fluke Connect Cloud storage
100 % Focused–Every object. Near and far. MultiSharp Focus.
Manual focus
MultiSharp Focus, available on the Ti450 PRO
Save time and improve the reliability of your maintenance data by wirelessly syncing measurements using the Fluke Connect system.
- Eliminate data-entry errors by saving measurements directly from the tool and associating them with the work order, report or asset record.
- Maximize uptime and make confident maintenance decisions with data you can trust and trace.
- Move away from clipboards, notebooks and multiple spreadsheets with a wireless one-step measurement transfer.
- Access baseline, historical and current measurements by asset.
- Share your measurement data using ShareLiveTM video calls and emails.
- The Ti450 PRO and Ti480 PRO infrared cameras are part of a growing system of connected test tools and equipment maintenance software. Visit the website to learn more about the Fluke Connect system.
Manufacturer Specs
| Ti480 PRO General Specifications | ||
| Key features | ||
| Detector resolution | 640 x 480 (307,200) or 1280 x 960 with SuperResolution | |
| SuperResolution | Yes, in software. Captures and combines 4x the data to create a 1280 x 960 image | |
| IFOV with standard lens (spatial resolution) | 0.93 mRad, D:S 1065:1 | |
| Field of view | 34 °H x 24 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view | |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images. Every. Single. Time. | |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen | |
| Advanced manual focus | Yes | |
| Wireless connectivity | Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) | |
| Fluke Connect® app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing | |
| Fluke Connect® Assets optional software | Yes*, assign images to assets and create work orders. Easily compare measurement types in one location. | |
| Fluke Connect® Instant Upload | Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC | |
| Fluke Connect® tool compatible | Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen. | |
| IR-Fusion® technology | Yes, adds the context of the visible details to your infrared image | |
| AutoBlend mode | Min, Mid, Max IR plus full visible on camera; continously variable in software | |
| Picture-In-Picture (PIP) | Yes | |
| Ruggedized touchscreen display | 3.5 inch (landscape) 640 x 480 LCD | |
| Rugged, ergonomic design for one-handed use | Yes | |
| Thermal sensitivity (NETD)** | ≤ 0.05 °C at 30 °C target temp (50 mK) | |
| Level and span | Smooth auto and manual scaling | |
| Fast auto toggle between manual and auto modes | Yes | |
| Fast auto-rescale in manual mode | Yes | |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) | |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) | |
| Built-in digital camera (visible light) | 5MP | |
| Frame rate | 60 Hz or 9 Hz versions | |
| Laser pointer | Yes | |
| LED light (torch) | Yes, improved output torch | |
| Digital zoom | 2x and 4x | |
| Data storage and image capture | ||
| Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to for permanent storage | |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability | |
| Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files | |
| Memory review | Thumbnail and full screen review | |
| Software | SmartView® software—full analysis and reporting software | |
| Export file formats with Fluke Connect® desktop software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF | |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required | |
| IR-PhotoNotes | Yes (5 images) | |
| Text annotation | Yes | |
| Video recording | Standard and radiometric | |
| File formats video | Non-radiometric (MPEG – encoded .AVI) and fully-radiometric (.IS3) | |
| Remote display viewing | Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor | |
| Remote control operation | Yes, through SmartView® software or Fluke Connect® mobile app | |
| Auto capture (temperature and interval) | Yes | |
| Battery | ||
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level | |
| Battery life | 2-3 hours per battery (*Actual life varies depending on settings and usage) | |
| Battery charge time | 2.5 hours to full charge | |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter | |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) | |
| Power saving | User selectable sleep and power off modes | |
| *Fluke Connect analysis and reporting software is available in all countries but Fluke Connect is not. Please check availability with your authorized Fluke distributor. ** Best possible |
||
| Ti480 PRO | ||
| Temperature measurement | ||
| Temperature measurement range (not calibrated below -10 °C) | ≤ -10 °C to +1000 °C (-14 °F to 1832 °F) | |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) | |
| On-screen emissivity correction | Yes (both value and table) | |
| On-screen reflected background temperature compensation | Yes | |
| On-screen transmission correction | Yes | |
| Live line marker | Yes | |
| Color palettes | ||
| Standard palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted | |
| Ultra Contrast palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted | |
| Specification | ||
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) | |
| Infrared spectral band | 7.5 μm to 14 μm (long wave | |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) | |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries | |
| Relative humidity | 10 % to 95 % non-condensing | |
| Center-point temperature measurement | Yes | |
| Spot temperature | Hot and cold spot markers | |
| User-definable spot markers | 3 user-definable spot markers | |
| Center box | Up to 3 expandable-contractible measurement box with MIN-MAX-AVG temp display | |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 | |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A | |
| Australian RCM | IEC 61326-1 | |
| US FCC | CFR 47, Part 15 Subpart C Sections 15.207, 15.209, 15.249 | |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6 | |
| Shock | 25 g, IEC 68-2-29 | |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop with standard lens | |
| Size (H x W x L) | 27.7 cm x 12.2 cm x 16.7 cm (10.9 in x 4.8 in x 6.5 in) | |
| Weight (battery included | 1.04 kg (2.3 lb) | |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) | |
| Warranty | Two-years (standard), extended warranties are available | |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) | |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish | |
| RoHS compliant | Yes | |
Tech Specs
Thermal Imagers/Building and Industrial Thermal Imagers Template |
|
|---|---|
| Detector Size | 640 x 480 Sensor |
| Thermal Sensitivity | 50 mK (NETD) |
| Temperature Range Max | 1832 F |
| Temperature Range Min | -14 F |
| Image Frequency | 60 Hz |
| Field of View | 34 x 24 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | Yes |
| Focus | Adjustable and Fixed |
| Laser Spot | Yes |
| Picture in Picture | Yes |
| Video Recording | Yes |
| Moveable Spots | Yes |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 6 IN (0.152 M) |
| Accuracy | ± 2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Battery operating time Continuous | 3 HR |
| Camera Light | Yes |
| IR Digital Zoom | Yes |
| Voice Annotation | Yes |
Test Equipment General Attributes |
|
| Unique Features | MultiSharp™ Focus. Keeps everything in view, in focus. SuperResolution mode makes images 640 x 480. IR Fusion® technology with AutoBlend™ mode. Communicate with other Fluke Connect devices. Interchangeable Smart Lenses, no calibration needed. LaserSharp® Auto Focus with Built in laser distance meter for consistently in-focus images. Every. Single. Time |
| Warranty | 2 YEARS |
| Warranty Details | Two-years (standard), extended warranties are available |
| Safety Approval | CSA, UL |
| Interfaces I/O | Bluetooth, Wifi, HDMI |
| Storage | Internal Memory, Micro SD, USB Flash Drive |
| IP Rating | IP54 |
| Product Weight | 2.3 LBS |
| Product Height | 10.9 IN |
| Product Length | 6.5 IN |
| Product Width | 4.8 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027.50.4020 |
| ECCN Number | 6A003.b.4.b |
| Calibration Included | None |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | United States |
| Shipping Height | 11.00 IN |
| Shipping Length | 7.00 IN |
| Shipping Width | 5.00 IN |
