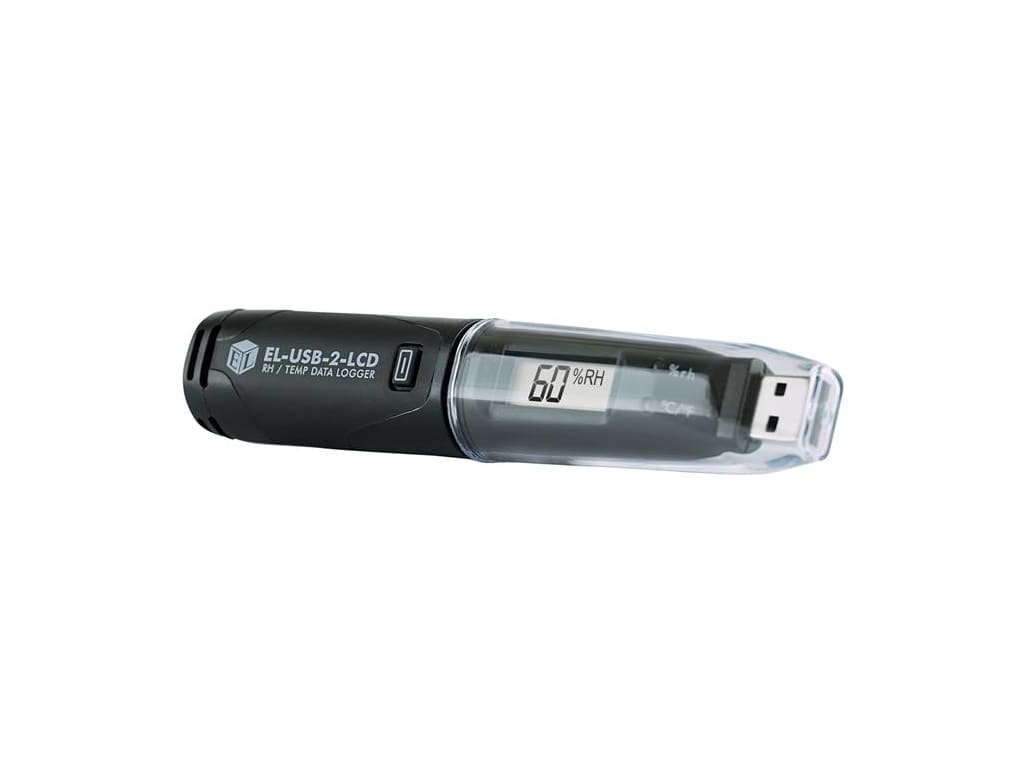

Lascar EL-USB-2-LCD Temperature and Humidity USB DataLogger with LCD Display
Temperature and humidity USB data logger with LCD display
This standalone data logger measures and stores up to 16,379 relative humidity and 16,379 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logger and view downloaded data by plugging the module into a PC’s USB port and using the supplied software. Relative humidity, temperature and dew point (the temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications.
The high contrast LCD can show a variety of temperature and humidity information. At the touch of a button, the user can cycle between the current temperature and humidity, along with the maximum and minimum stored values for temperature and humidity.
The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year.
This is a new part and due to high demand availability is limited. For the latest information on availability please contact your nearest Lascar representative.
WINDOWS CONTROL SOFTWARE
Easy to install and use, the control software runs under Windows 98, 2000, XP (Home and Professional Editions)* and Vista (32-bit). It allows the user to set up and download any EL-USB-2-LCD.
DISPLAY FUNCTIONS
Six different functions are available, which can be cycled through using the built-in push button. The most recent logged value, maximum logged value and minimum logged value can be displayed separately for humidity and temperature. In addition, logging and alarm status is shown using two high intensity LEDs.
DATA LOGGER SETUP VARIABLES
- Logger name
- °C, °F
- Logging Rate (10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
- High and low alarms
- Immediate, delayed and push-to-start logging
- Display off, on for 30 seconds after button press , or permanently on
- Data rollover (Allows unlimited logging periods by overwriting the oldest data when the memory is full)
Application Information
The EL-USB-1-PRO is suitable for a wide variety of applications, these include:
- Pharmaceutical fridge monitoring
- Transportation
- Food & drink
- Building & site monitoring
- HVAC
Manufacturer Specs
| Specification | Min | Typ | Max | Unit | |
| Relative Humidity | Measurement range | 0 | 100 | %RH | |
| Repeatability (short term) | ±0.1 | ||||
| Accuracy (overall error) (20-80%RH) | ±3.0* | ||||
| Internal resolution | 0.5 | ||||
| Long term stability | 0.5 | ||||
| Temperature | Measurement range | -35 (-31) | +80 (+176) | °C (°F) | |
| Repeatability | ±0.1 (±0.2) | ||||
| Accuracy (overall error) (20-80%RH) | ±0.5 (±1) | ||||
| Internal resolution | 0.5 (1) | ||||
| Dew Point | Accuracy (overall error) (25°C, 40-100%RH) | ±1.1 (±2)*** | °C (°F) | ||
| Logging rate | every 10s | every 12hr | – | ||
| Operating temperature range | -35 (-31) | +80 (+176) | °C (°F) | ||
| 1/2AA 3.6V Lithium Battery Life | 1* year | ||||
| * This specifies the overall error in the logged readings, for relative humidity measurements between 20 and 80%RH | |||||
| ** This specifies the overall error in the calculated dew point, for realtive humidity measurements between 40 and 100%RH at 25°C | |||||
| *** Depending on sample rate, ambient temperatures and use of alarm LEDs † At temperatures below -20ºC (-4ºF) the LCD will exhibit slower response times of approximately 10 seconds | |||||
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Height | 1.55 IN |
| Product Length | 5.60 IN |
| Product Width | 4.05 IN |
| HTS/Schedule B Number | 9025.80.5000 |
| ECCN Number | EAR99 |
| Country of Origin | China |
| Shipping Height | 1.55 IN |
| Shipping Length | 5.60 IN |
| Shipping Width | 4.05 IN |
