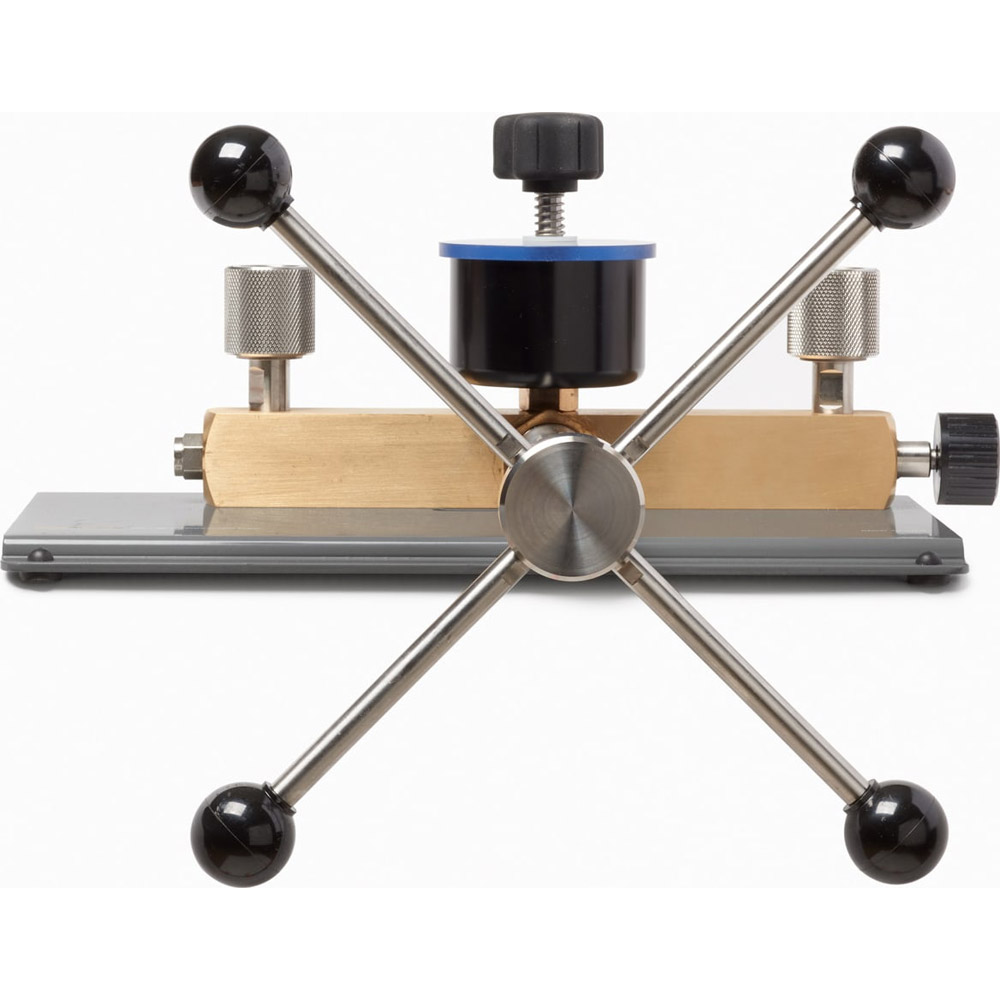

Fluke P5514B-70M-EP – Hydraulic Comparison Test Pump, EP Seals – 0 to 10,000 psi (70 MPa)
- Pressure range 0 to 10,000 psi (70 MPa)
- Hydraulic comparison test pump, EP seals
- Vernier fine adjustment control enables cardinal point calibrations
- Improved test port connectors adapters: included for common sizes of NPT and BSP
- Use on the bench or in the field
The P5514B Hydraulic Pressure Comparator is a simple, robust and economical pressure test pump for calibrating gauges, switches and transducers with accurate, fine adjust capabilities. It generates pressure to 10,000 psi (70 MPa), with a new Vernier that enables cardinal point calibrations.
The P5514B can be mounted easily on a bench or used in mobile applications. Its robust design, with improved reservoir valve sealing, makes it a more stable pressure generator than previous versions of this model.
The test ports have been improved with a rotating collar design that make it a snap to connect devices under test (DUTs). Test port connections include adapters for common sizes of NPT and BSP. Connections are tool free, another improvement over the previous model.
Manufacturer Specs
| Fluke P5514B-70M-EP Specifications | |
| P5514B Hydraulic Pressure Comparator | |
| Pressure Range | 0 to 10,000 psi (700 bar) |
| Test Port Adapters | 1/4 NPT (Qty 2), 1 each of 1/2 NPT, 1/4 BSP and 1/2 BSP |
| Instrument Size (W x D x H) | 11 x 11 x 10 in (280 x 280 x 254 mm) |
| Instrument Weight | 11 lb (5 kg) |
| Reservoir Volume | 75 cc |
| Screw Press Displacement | 20 cc |
| Fluid Media | The standard O-ring seals are Viton. Ethylene Propylene seals are available for use with solvents, fuel oils, brake fluids or other similar aggressive fluids. P5514B-70M: Viton Seals P5514B-70M-EP: Ethylene Propylene Seals |
Tech Specs
Process / Calibration/Pressure Calibration/Pressure Calibrators Template |
|
|---|---|
| Max Pressure | 10000 psi (10000 hPa) |
| Intrinsically Safe | No |
Test Equipment General Attributes |
|
| Unique Features | Ethylene propylene seal |
| Warranty | 1 YEARS |
| Product Weight | 11 LBS |
| Product Height | 6 IN |
| Product Length | 11 IN |
| Product Width | 3 IN |
| Shipping Weight | 16.70 LBS |
