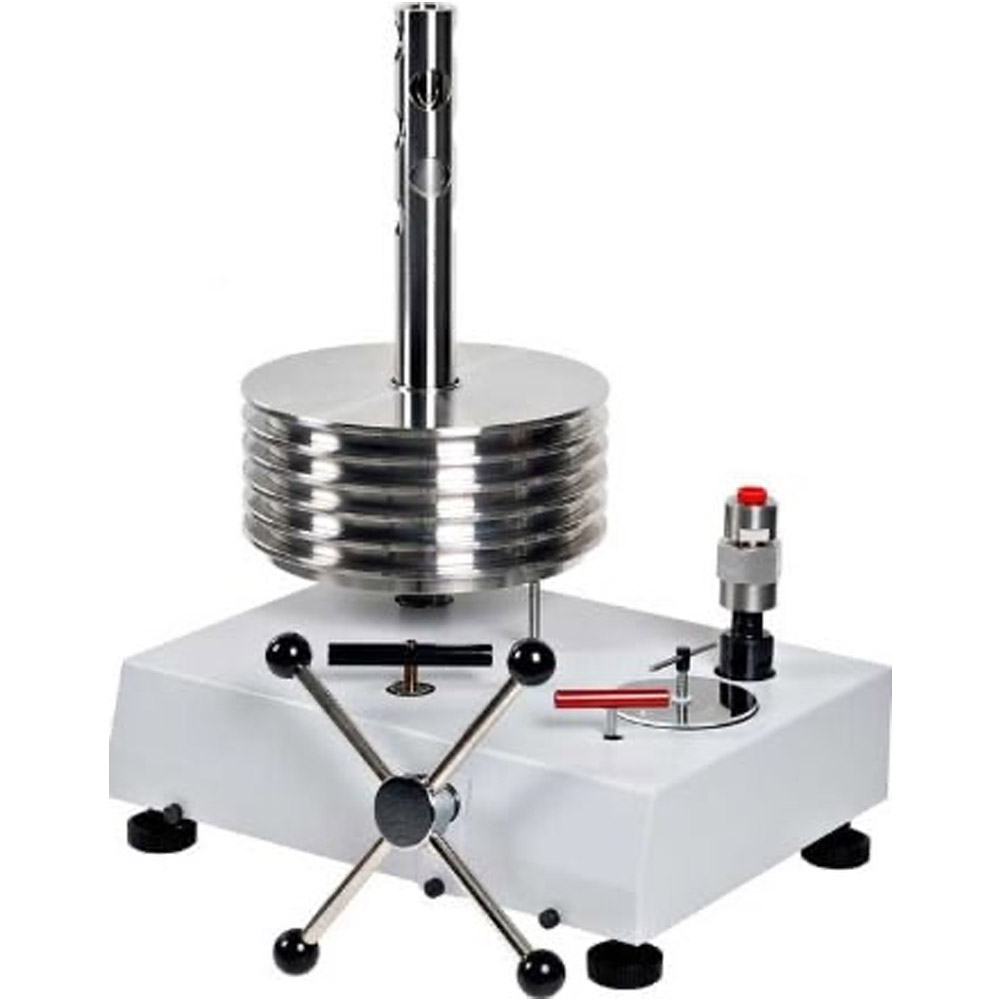

The Pressurements P3800 Series High Pressure Hydraulic Deadweight Testers are the culmination of over 50 years of experience in the production and design of high performance pressure standards. With features and options designed to improve accuracy, increase reliability, and simplify operation, the P3800 Series can be used to calibrate virtually any high pressure sensing device including transducers, transmitters, gauges, pressure switches or other calibrators.
The Pressurements P3800 Series High Pressure Hydraulic Deadweight Testers are the culmination of over 50 years of experience in the production and design of high performance pressure standards. With features and options designed to improve accuracy, increase reliability, and simplify operation, the P3800 Series can be used to calibrate virtually any high pressure sensing device including transducers, transmitters, gauges, pressure switches or other calibrators.
Three models are available, P3830, P3840 and P3860 offering pressure ranges of 30,000, 40,000 and 60,000 psi respectively (2000, 3000 and 4000 bar). All models are available in two accuracy classes, 0.02% or 0.015% of Reading. The Series P3800 offers an accurate and economical approach to calibrating high pressure devices.
Manufacturer Specs
| General Specifications | |
| Accuracy | |
| Accuracy* | Standard accuracy is 0.02% of Reading*. Optional accuracy of 0.015% of Reading is available. ISO/IEC 17025 accredited calibration is provided with each instrument. *Accuracy is based on % of Reading from 10% to 100% of the piston range when used in accordance with the corrections found on the calibration certificate. Below 10%, ± (accuracy class) x 10% of the piston range. See the “Guide for the Uncertainty Analysis in Pressure when Using P3000 Series Deadweight Testers” technical note for more information. |
| Materials of Construction | |
| Standard weight material | Series 3 non-magnetic, austenitic, stainless steel |
| Weight density | 7.8 g/cm3 |
| Piston Material | Tungsten carbide with nickel binder |
| Cylinder Material | Tungsten Carbide with cobalt binder |
| Thermal Coefficient of Expansion | 11 ppm/°C |
| General | |
| Test port adapters | 9/16 – 18 UNF (Autoclave); 3/8 BSP; 1/2 BSP & 3/4 BSP |
| Instrument Weight | 66 lbs. (30 Kg) Instrument Base only |
| Instrument Size | 18 in. X 13.5 in. X 19 in. (455 X 340 X 478 mm) |
| Reservoir Volume | 235 cc (14.3 cu.in.) |
| Intensifier ratio | 7 to 1 |
| Seal Materials | Nitrile |
| Operating Fluid | Dioctyl Sebacate (DOS), our reference 55-600 |
| Options | |
| Presscal software | Windows based software program that allows users to easily apply all necessary corrections to enhance the deadweight tester performance. Supports additional 12 pressure units (bar, mbar, MPa, kPa, psi, kg/cm2, atm, in H2O, mH2O, mmH2O, inHg, mmHg). |
| Conversion Weight Sets | For applications that require nominal pressure increments in measurement units different than the main unit, conversion weight sets are available. Available measurement units are: PSI, bar kgf/cm2 or MPa. |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| ECCN Number | EAR99 |
| Country of Origin | United States |
