Descripción
AEMC SL50
- The operator of the logger’s status
- The sample rate is 16/sec
- Quick 2 wire input connection
- Real-time graphs can be displayed
Simple Logger, Temperature, Thermocouple

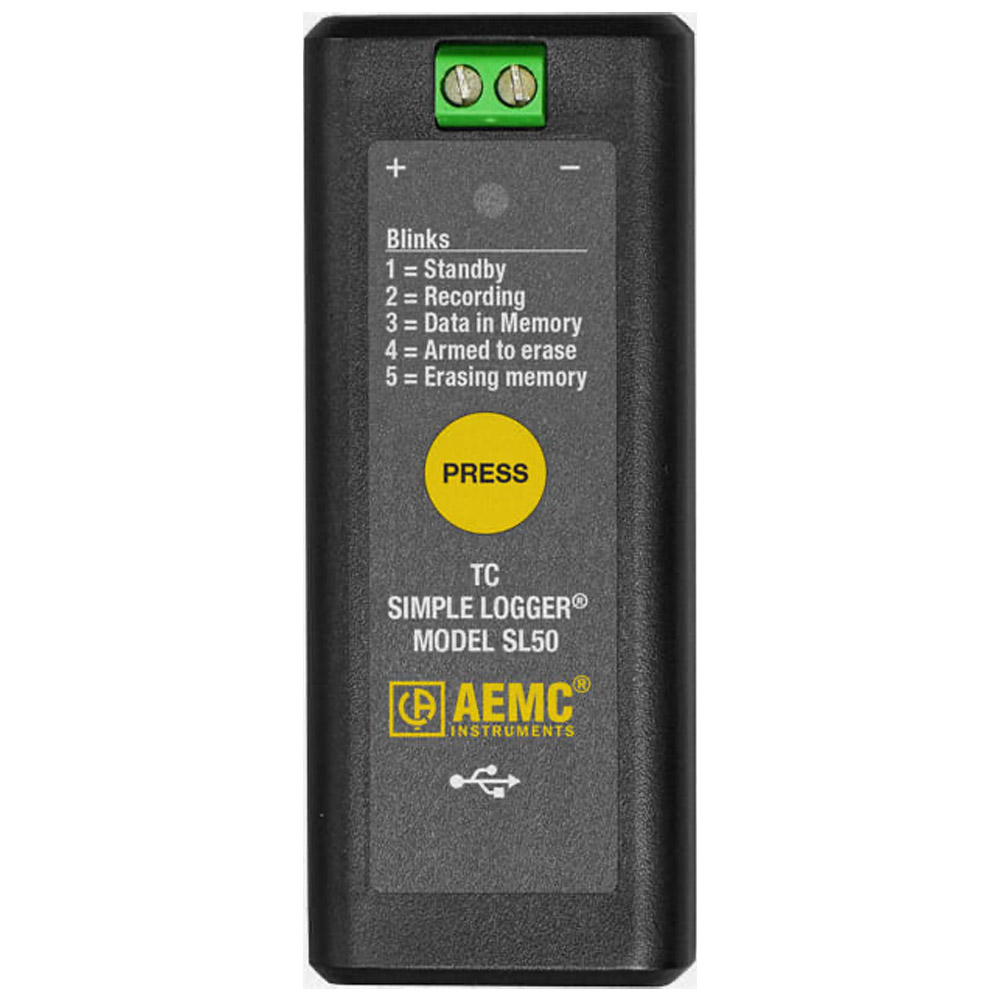

The Simple Logger Model SL50 is a small one-channel recording device powered by two AA alkaline batteries. It can also be powered by 5V using the USB interface cable supplied. The input is configured to measure temperature from thermocouples. Types J, K, N, T, E, R, and S are supported. Inputs are facilitated by two screw terminals. The sample rate is 16/sec with a storage rate of once every two seconds of the average of all (32) samples. Application software is included with the unit by plugging it into your computer using the USB cable and downloading it from our website. Scaling units of measure and recording length can be set through the software. Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed.
The main advantage of the logger is its ability to begin recording with only the need to configure the length of time for the recording. A simple one-button operation is all you need. The front panel LED alerts the operator of the logger’s status.
Manufacturer Specs
| General Specifications | ||
| Channels | One | |
| Input | Screw connector | |
| Connection | °F | °C |
| Measurement Range:(Thermocouple Dependent) | J -346 to +2192 | J-210 to +1200 |
| K-328 to +2502 | K-200 to +1372 | |
| T-328 to +752 | T-200 to +400 | |
| N-328 to +2372 | N-200 to +1300 | |
| E-328 to +1832 | E-200 to +1000 | |
| R-32 to +3200 | R-0 to +1760 | |
| S-32 to +3200 | S-0 to +1760 | |
| Accuracy (J, K, N, T, E) | θ ≤ -148°F/-100°C · ± (0.4% of R + 9°F/5°C) -148°F/-100°C < θ ≤+212°F/+100°C · ± (0.3% of R +7.2°F/4°C) ≥ +212°F/+100°C · ± (0.2% of R + 5.4°F/3°C) | |
| Accuracy (R, S) | θ = 32°F/0°C to +212°F/+100°C · ± (0.3% of R + 18°F/10°C) θ ≥ +212°F/+100°C · ± (0.2% of R + 14°F/8°C) |
|
| Resolution | θ < 1000°F or °C · 0.1°F or °C θ > 1000°F or °C · 1°F or °C |
|
| Sample Rate | 16 samples/second | |
| Storage Rate | 2 second | |
| Storage Modes | Start/Stop | |
| Recording Length | ≥43 days | |
| Memory | 2 million measurements (8Mb). Recorded data is stored in non-volitile memory and will be retained even if battery is low or removed. | |
| Communication | USB 2.0 (Simple Logger software free to download from web site) | |
| Power Source | 2×1.5V AA (LR6) alkaline batteries or USB 5VDC | |
| Battery Life | 43 days with new batteries when recording | |
| Low Battery | Battery voltage display in software (Batteries need replacement when the LED is dim or does not blink) | |
| Dimensions | 3.6 x 1.44 x 1.32″ (91.44 x 36.58 x 34.8mm) | |
| Weight (with battery) | 3.5oz (99g) | |
| Case | Polycarbonate | |
| Operating Temperature | 14° to 122°F (-10° to 50°C) | |
| Storage Temperature | -4° to 140°F (-20° to 60°C) | |
| Relative Humidity | Up to 85% @ 95°F (35°C) | |
| Ingress Protection (IP) | IP40 | |
| EMC | EN 61326-1 | |
| Safety Compliance | IEC 61010-1 | |
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Type (Recorders) | Data Logger |
| Style (Recorders) | Bench / Portable |
| Power Source | Battery, USB Powered |
| Data storage | Yes |
Test Equipment General Attributes |
|
| Product Weight | 0.22 LBS |
| Shipping Weight | 4.00 LBS |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
