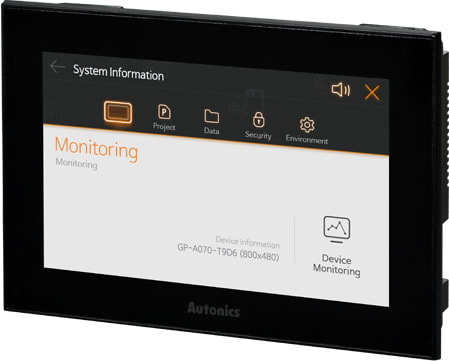

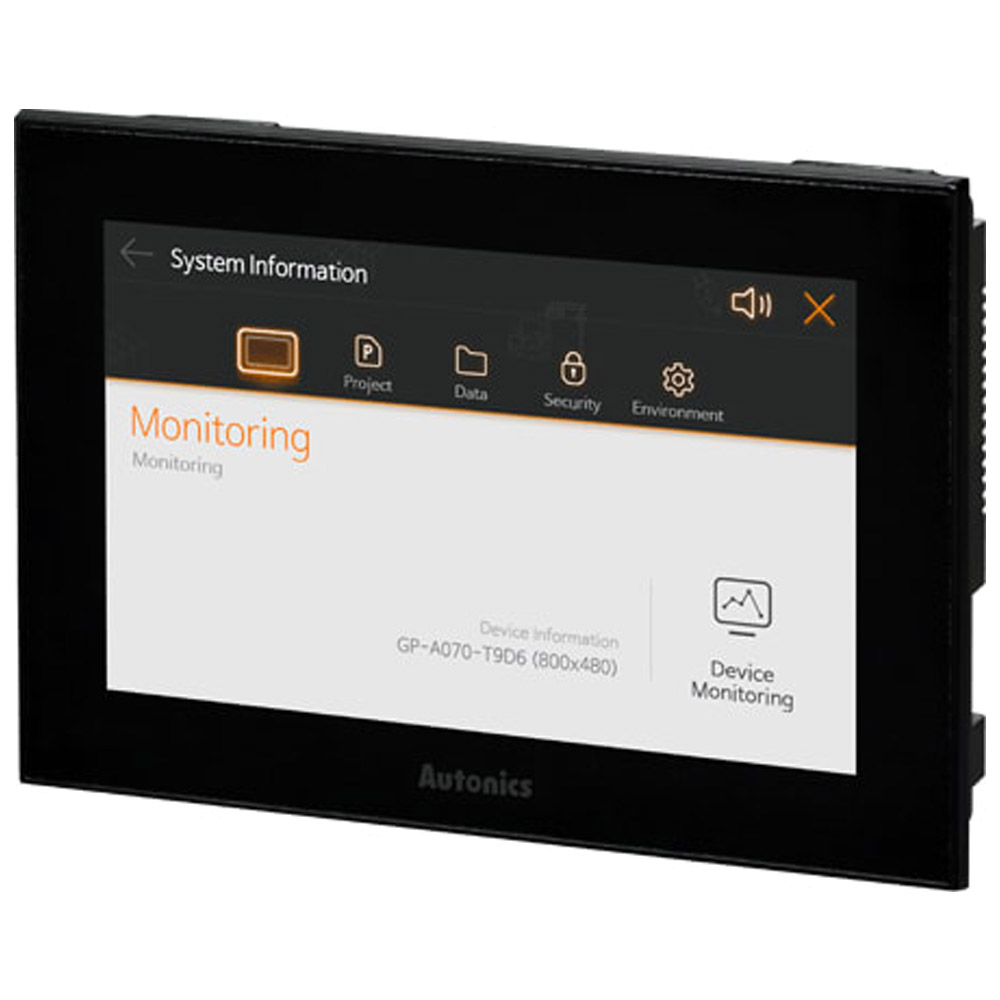

Autonics GP-A070-T9D7 – 7-Inch Color LCD Graphic Panel
- Interface RS232C: 2 EA
- Display Specifications LCD Type: TFT Color LCD
- Display Specifications Resolution: 800×480 dot
- Display Specifications Display Area: 152.4×94.44mm
- Display Specifications Color: 16,777,216 colors
- Graphic Drawing Memory: 64MB
7-Inch Color LCD Graphic Panels
The GP-A070 series graphic panels are 7-inch widescreen TFT LCD graphic HMIs offering excellent visibility and data management capability. The resistive touchscreen (analog touch) allows flexible tag arrangements, and the data logger function allows data storing and backup from various control devices. The units can be installed horizontally or vertically, and also feature support for various connection interfaces including USB Host/Device and Ethernet.
Elegant and Stylish Design
The HMI features an elegant and stylish design with black bezels and hidden logo.
Horizontal or Vertical Installation Depending on User Needs
The panels can be installed horizontally or vertically depending on user needs or applications, offering high installation flexibility.
atDesigner Screen Editor Software with User Oriented UI/UX Design
All data on the GP screen can be edited using the dedicated screen editor software atDesigner. The user oriented UI/UX design allows users to easily utilize all features on the software.
The image library can be upgraded to create more realistic looking screen layouts.
Simple Screen Editor Project Conversion
Users can easily change projects from S series panels to A series panels using the project conversion tool (atDesigner).
Main Features
- Horizontal/vertical installation
- Various communication interface support: RS232C, RS422/485, Ethernet
- Device monitoring of connected device possible without screen data
- Multi-language table feature allows users to switch languages with a single button
- atDesigner screen editor software provided
- Various support functions, extensive image library
- Convenient user interface
- 7-inch TFT LCD True Color display capable up to 16,777,216 color variations
- Resistive touchscreen allows operation with bare hands, gloved fingers, or stylus
Manufacturer Specs
| General Specifications | |
| Display Specifications LCD Type | TFT Color LCD |
| Display Specifications Resolution | 800×480 dot |
| Display Specifications Display Area | 152.4×94.44mm |
| Display Specifications Color | 16,777,216 colors |
| Graphic Drawing Memory | 64MB |
| Touch method | Analog touch (resistive type) |
| Interface RS232C | 2 EA |
| Interface Ethernet | IEEE802.3(U), 10/100Base-T |
| Power supply | 24VDC |
| Protection structure | IP65(front panel, IEC standard) |
| Dedicated Software | atDesigner, atLogic |
| Interface USB(Host) | 1 EA |
| Interface USB(Device) | 1 EA |
| Graphic drawing Performance Language | English, Korean |
| Graphic drawing Performance Text | Bitmap ASCII and vector font |
| Graphic drawing Performance Number of user screen | 100 pages |
| Real-time controller | RTC embedded |
| Accessories | Fixing bracket: 6, battery (included) |
| Environment Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | 706g(520g) |
