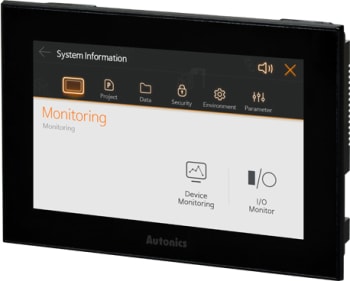

Autonics LP-A070-T9D6-C5T 7-Inch Color LCD Logic Panel
- Terminal block connector
- 7-Inch touchscreen
- Space and cost saving
- Vertical/Horizontal setup
- 800x 480 resolution
- atDesigner screen editor software
- atLogic programming software
The Autonics LP-A070 series logic panels are all-in-one devices featuring functions of PLC, HMI, and I/O modules with 16 input and 16 output contact points. The 7-inch widescreen TFT LCD display offers excellent visibility and data management capability. The resistive touchscreen (analog touch) allows flexible tag arrangements, and the data logger function allows data storing and backup from various control devices. The units can be installed horizontally or vertically, and also feature support for various connection interfaces including USB Host/Device, and Ethernet.
All-in-one touch panel with PLC, HMI, and I/O module functions
The all-in-one device features functions of PLC, HMI, and I/O modules offering easy space-saving installation with minimal wiring. Convenient total control is possible from a single access device.
Simple screen editor project conversion
Users can easily change projects from S series panels to A series panels using the project conversion tool (atDesigner).

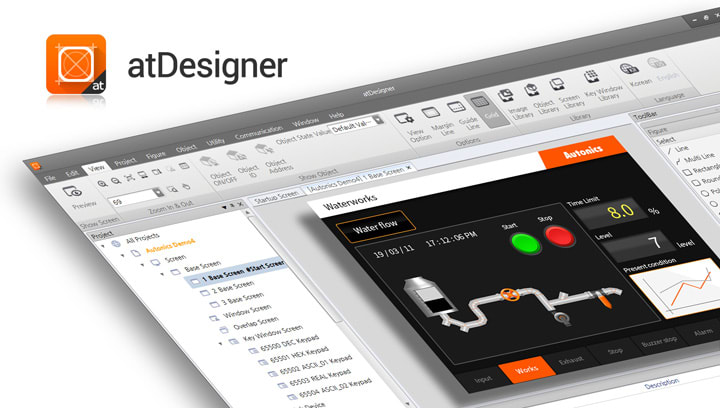

atDesigner Screen Editor Software with User Oriented UI/UX Design
All data on the LP screen can be edited using the dedicated screen editor software atDesigner. The user oriented UI/UX design allows users to easily utilize all features on the software.

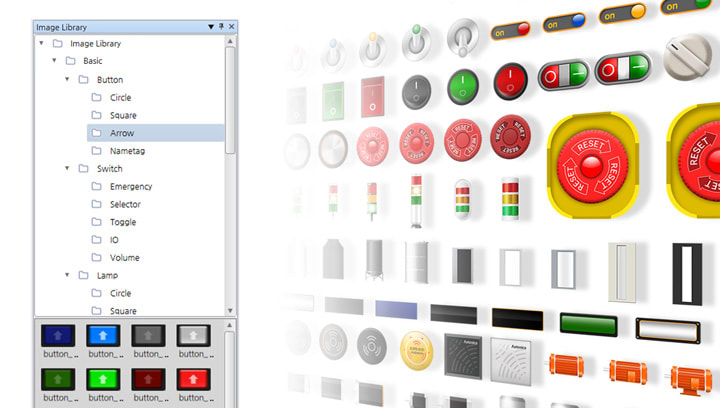

The image library can be upgraded to create more realistic looking screen layouts.
atLogic Logic Programming Software
Users can create and edit ladder programs using the atLogic logic programming software.
Manufacturer Specs
| Model: LP-A070-T9D6-C5T Specifications | |
| Display Specifications_LCD Type | TFT Color LCD |
| Display Specifications_Resolution | 800×480 dot |
| Display Specifications_Display Area | 152.4×94.44mm |
| Display Specifications_Color | 16,777,216 colors |
| Graphic Drawing Memory | 64MB |
| Touch method | Analog touch (resistive type) |
| Interface_RS232C | 1 EA |
| Interface_RS422 | 1 EA |
| Interface_Ethernet | IEEE802.3(U), 10/100Base-T |
| Power supply | 24VDC |
| Protection structure | IP65(front panel, IEC standard) |
| Dedicated Software | atDesigner, atLogic |
| Approval | CE, KC |
| Interface_USB(Host) | 1 EA |
| Interface_USB(Device) | 1 EA |
| Graphic drawing Perfomance_Language | English, Korean |
| Graphic drawing Perfomance_Text | Bitmap ASCII and vector font |
| Graphic drawing Perfomance_Number of user screen | 100 pages |
| Real-time controller | RTC embedded |
| Accessories Fixing bracket | 6, battery (included) |
| Environment_Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | 약 742g(약 540g) |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Weight | 1.64 LBS |
