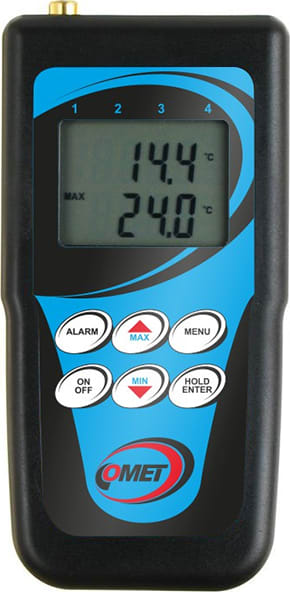

Comet D0211 Single Channel Thermometer Ni1000/Pt1000
- Designed for direct measurement
- Datalogging of temperature into the internal non-volatile memory
- Dual line LCD display
- Possible to store values into the non volatile memory
Instrument is designed for measurement and logging of temperature from one RTD Pt1000 or Ni1000/6180ppm external probe. Measured values are displayed on a dual line LCD display and it is possible to store values into the non volatile memory. Then it is possible to transfer data to a personal computer. Instrument compares measured values of temperature with two adjustable levels. Breaking the level is indicated by blinking the proper value on display and by audio indication (switchable). Instrument is equipped with minimum and maximum memory and Hold function. Minimum and maximum values and Hold value are possible to display on the LCD.
Manufacturer Specs
| Comet D0211 Specifications | |
| Technical Parameters | Value |
| Measured Value | Temperature |
| Construction Type | For External Temperature Probes |
| Temperature Measuring Range | -200 to 500 °C |
| Data Logging Function | Yes |
| Operating temperature range | -30 to +65°C |
| Temperature input | RTD Pt1000-3850ppm; -200 to +500°C RTD Ni1000/6180ppm; -50 to +250°C |
| Accuracy of Pt1000 input without external probe | ±0.3°C from -50 to +100°C ±0.3% from reading from +100 to 500°C ±0.6% from reading from -200 to -50°C |
| Accuracy of Ni1000 input without external probe | ±0.2°C from -50 to +100°C ±0.2% from reading from +100 to +250°C |
| Power | battery 9V |
| Battery life | 6 months typically |
| Real time clock | year, leap year, month, day, hour, minute, second |
| PC interface | USB |
| Sampling interval in data logging mode | 10s to 24hours (18 adjustable intervals) |
| Total memory capacity | up to 16000 recorded values |
| Data logging modes | noncyclic – data logging stops after filling the memory cyclic – after filling memory oldest data is overwritten by new |
| Dimensions | 141 x 71 x 27 mm |
| IP protection | IP20 |
| Weight including battery | approximately 150 g |
| Warranty | 3 years |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Weight | 0.33 LBS |
| Shipping Weight | 0.4 LBS |
| Country of Origin | Czech Republic |
