Descripción
Comet T0510
- Designed for measurement of temperature
- Relative humidity
- Atmospheric pressure in the air without aggressive substances
- Measured quantities are according to device type
- Dew point temperature
- Absolute humidity
- Specific humidity

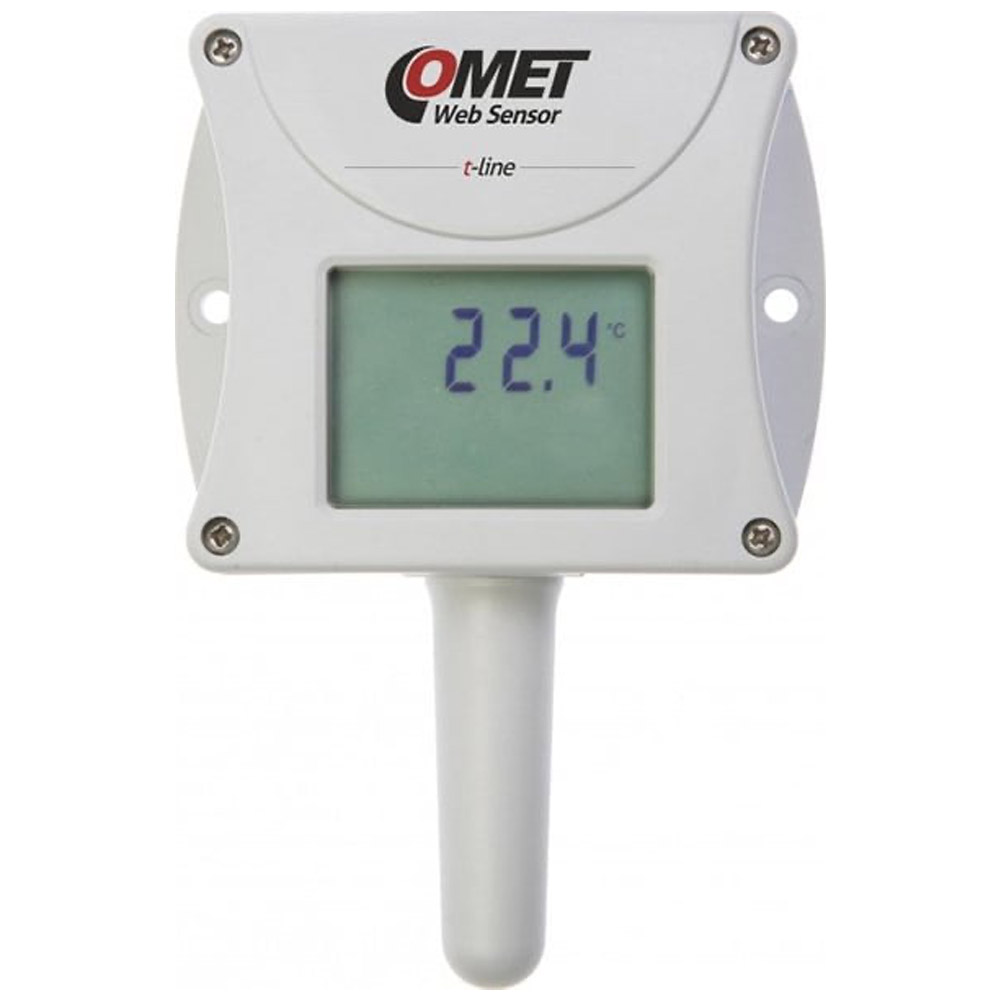

Web Sensor, Remote Thermometer with Ethernet Interface
The Web Sensor devices are designed for the measurement of temperature, relative humidity, and atmospheric pressure in the air without aggressive substances. Measured quantities are according to device type. Devices with relative humidity measurement can show one of the computed quantities: dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy. Temperature units are °C or °F. Pressure units are hPa, PSI, inHg, mBar, oz/in 2, mmHg, inH2O, and kPa. Communication interface of Web Sensors is Ethernet.
Applications
- Server Rooms Monitoring
- Museums, archives, galleries
- Building HVAC Management
- Factories and Manufacturing
- Warehouses
- Air-Conditioned Room
Software
- Comet Database
- Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Sensors.
- T-Sensor Software
- Free configuration utility for COMET sensor.
- SensorReader Software
- Basic data acquisition utility for COMET Sensors. Software is free for download.
Manufacturer Specs
| Comet T0510 Specifications | |
| Technical Parameters | Value |
| Output | Ethernet |
| Measured Value | Temperature |
| Construction Type | Ambient Air |
| Design | Industrial |
| Temperature Measuring Range | -30 to 80 °C |
| Relay Output | No |
| Two-State Input | No |
| Lcd Display | Yes |
| PoE | No |
| Accuracy of temperature output | ±0.6°C |
| Resolution | 0.1°C |
| Measuring interval | 2s |
| Available temperature units | degrees Celsius, degrees Fahrenheit |
| Temperature operating range | -30 to +80°C |
| IP protection | IP30 |
| LAN connection | RJ-45 connector, 10Base-T or 100Base-TX |
| Communication protocols | WWW, ModbusTCP, SNMPv1, SOAP, XML |
| Alarm protocols | E-mail, SNMP Trap, Syslog |
| Configuration | T-Sensor, WWW configuration |
| Power | 9 to 30Vdc, maximum consumption 1W |
| Power connector | co-axial, diameter 5.5 x 2.1mm |
| Dimensions | 88.5 x 126 x 39.5mm (W x H x D), stem length 53mm |
| Weight | approximately 145g |
| Warranty | 3 years |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 80 C |
| Min Temperature | -30 C (-22 F) |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| IP Rating | IP30 |
| Product Weight | 0.32 LBS |
| Product Height | 2.30 IN |
| Product Length | 8.10 IN |
| Product Width | 4.10 IN |
| Shipping Weight | 0.40 LBS |
| Country of Origin | Czech Republic |
| Shipping Height | 2.30 IN |
| Shipping Length | 8.10 IN |
| Shipping Width | 4.10 IN |
