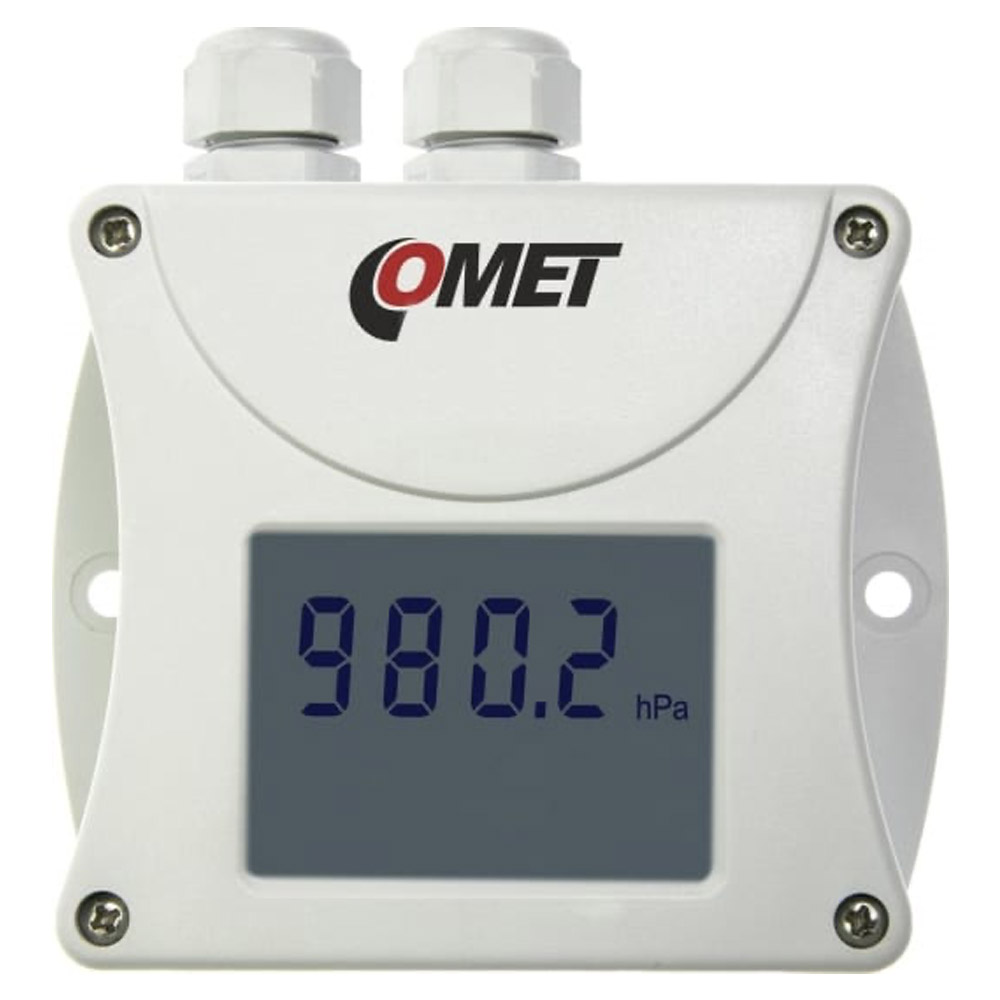

Comet T2414
- Barometric pressure transmitter
- For outdoor and indoor use
- Display reading
- Pressure output is user selectable in these units: hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2
Barometric Pressure Transmitter, RS485 Interface
Atmospheric pressure transmitter. Outdoor, indoor use.
Barometric pressure transmitter for outdoor and indoor use. Display reading and pressure output is user selectable in these units: hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2.
Measured pressure values are converted to RS485 serial output. Transmitter circuitry is galvanically isolated from power circuitry to prevent collision in RS485 network.
Serial output RS485 – transmitter works with ModBus RTU communication protocol or with Advantech ADAM compatible protocol. Protocol is user selectable in special configuration mode by means of the PC. Serial link enables to read actual readings and modify transmitter configuration. Instrument works always in slave mode, i.e. responds only to master device query. Transmitters have the address space available from 1 to 255. Communication speed is 110 to 115200Bd.
Applications
- Building HVAC management
- Building HVAC automation
- Warehouses
- Glasshouses
- Manufacturers
- Museums, archives, galleries
- Air-conditioned rooms
- Weather stations
Software
- Comet Database
- Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Transmitters and Regulators.
- Sensor RS485/232 utility
- allows communication of sensors with RS485/RS232 output and sending data to Comet Database.
- T-Sensor Software
- Free configuration utility for Comet Transmitters and Regulators.
- Sensor Reader Software
- Basic data acquisition utility for Comet Transmitters and Regulators. Software is free for download.
Manufacturer Specs
| Comet T3510 Specifications | |
| Technical Parameters | Value |
| Output | RS485 |
| Measured Value | Atmospheric Pressure |
| Construction Type | Ambient Air |
| Design | Industrial |
| Temperature Measuring Range | to °C |
| Relay Output | No |
| Two-State Input | No |
| Lcd Display | Yes |
| PoE | No |
| Maximum measuring range | 600 to 1100hPa |
| Accuracy | ±(1,3hPa+0.06% from adjusted output span) at 23°C from 800 to 1100hPa |
| Available pressure units | hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2 |
| Temperature operating range | -30 to +80°C |
| Temperature operating range of LCD display | readable to operating temperature +70°C, it is recommended to switch OFF the LCD over +70°C |
| Communication protocol | ModBus RTU and Advantech ADAM compatible protocol |
| Communication speed | 110 to 115200 Bd |
| IP protection | IP54 |
| Power | 9-30Vdc, current consumption approximately 0.5W |
| Dimensions | 88.5 x 98 x 39.5 mm (W x H x D) |
| Weight | approximately 135g |
| Warranty | 3 years |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Warranty | 3 YEARS |
| IP Rating | IP54 |
| Product Weight | 0.3 LBS |
| Shipping Weight | 0.35 LBS |
| Country of Origin | Czech Republic |
