Comet T4611

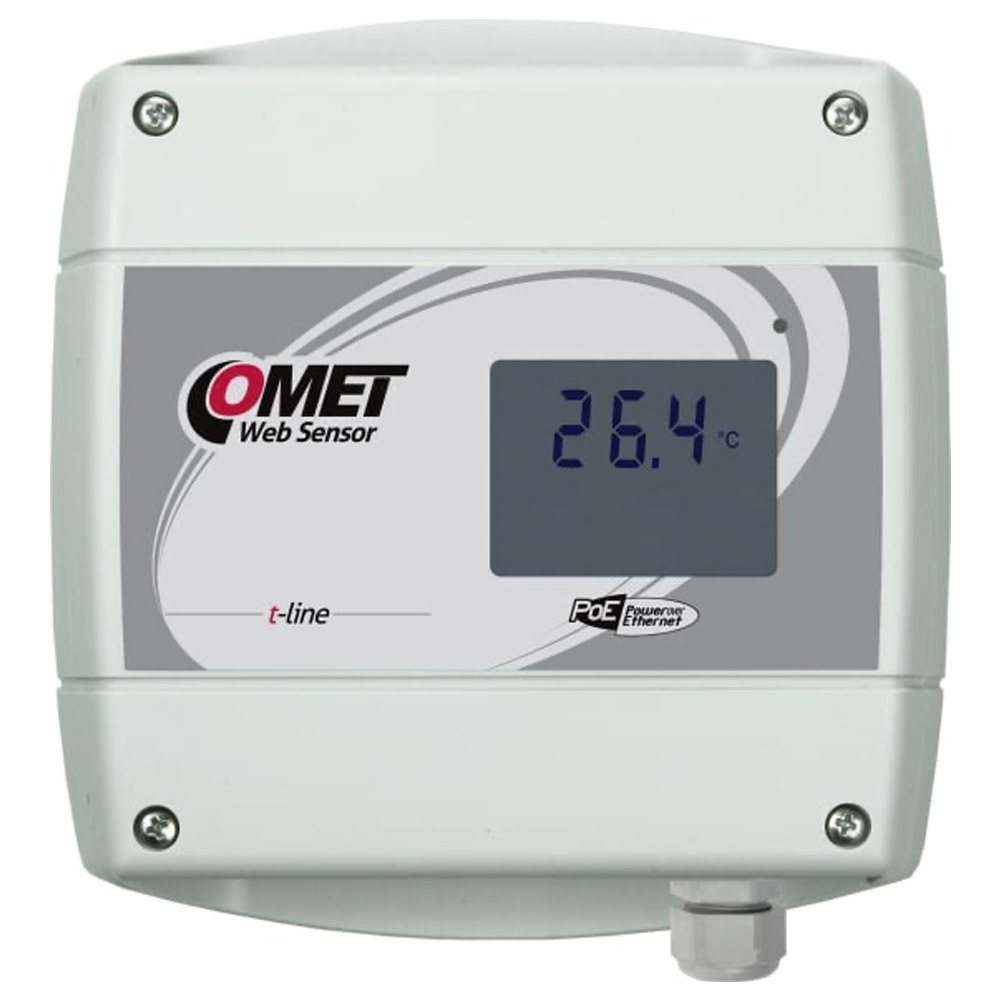

- Comet T4611 Web Sensor with PoE – Remote Thermometer with Ethernet Interface
- Power over Ethernet
- History values memory
- SNTP protocol – Time synchronization
- History export to CSV
- Actual values via XML
Web Sensor with PoE, Remote Thermometer with Ethernet Interface
Ambient temperature t-line Web sensor for Pt1000 sensor with Power over Ethernet feature. Remote alarm. PoE Web Sensor for external Pt1000 temperature probe. Power over Ethernet feature according to IEEE 802.3af is supported.
Applications
- Server Rooms Monitoring
- Museums, archives, galleries
- Building HVAC Management
- Factories and Manufacturing
- Warehouses
- Air-Conditioned Room
- Home Automation
Software
- Comet Database
- Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Transmitters and Regulators.
- Sensor RS485/232 utility
- Allows communication of sensors with RS485/RS232 output and sending data to Comet Database.
- T-Sensor software
- Free configuration utility for Comet Transmitters and Regulators.
- Sensor Reader software
- Basic data acquisition utility for Comet Transmitters and Regulators. Software is free for download.
Manufacturer Specs
| Comet T4611 Specification | |
| Technical parameters | Value |
| Output | Ethernet |
| Measured Value | Temperature |
| Construction Type | For External Temperature Probe Pt1000 |
| Design | Industrial |
| Temperature Measuring Range | -200 to 600 °C |
| Relay Output | No |
| Two-State Input | No |
| Lcd Display | Yes |
| PoE | Yes |
| Accuracy of temperature output | ±0.2°C without probe |
| Resolution | 0.1°C |
| Measuring interval | 2s |
| Available temperature units | degrees Celsius, degrees Fahrenheit |
| Temperature operating range | -20 to +60°C |
| IP protection | IP30 |
| LAN connection | RJ-45 connector, 10Base-T or 100Base-TX |
| Communication protocols | WWW, ModbusTCP, SNMPv1, SOAP, XML |
| Alarm protocols | E-mail, SNMP Trap, Syslog |
| Configuration | T-Sensor, WWW configuration |
| Power | Power over Ethernet according to IEEE 802.3af or 5Vdc |
| Power connector | co-axial, diameter 5.5 x 2.1mm |
| Dimensions | 136 x 148 x 45mm (W x H x D) |
| Weight | approximately 310g |
| Warranty | 3 years |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 600 C |
| Min Temperature | -200 C (-328 F) |
| Accuracy | ±0.2°C |
| LCD Screen | No |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| IP Rating | IP30 |
| Product Weight | 1 LBS |
| Shipping Weight | 1.15 LBS |
| Country of Origin | Czech Republic |
