Descripción
Comet U0110
- Measured value: Internal temperature
- Temperature range: (-30 to +70) °C
- High quality, accurate and stable sensors
- Built-in battery operated

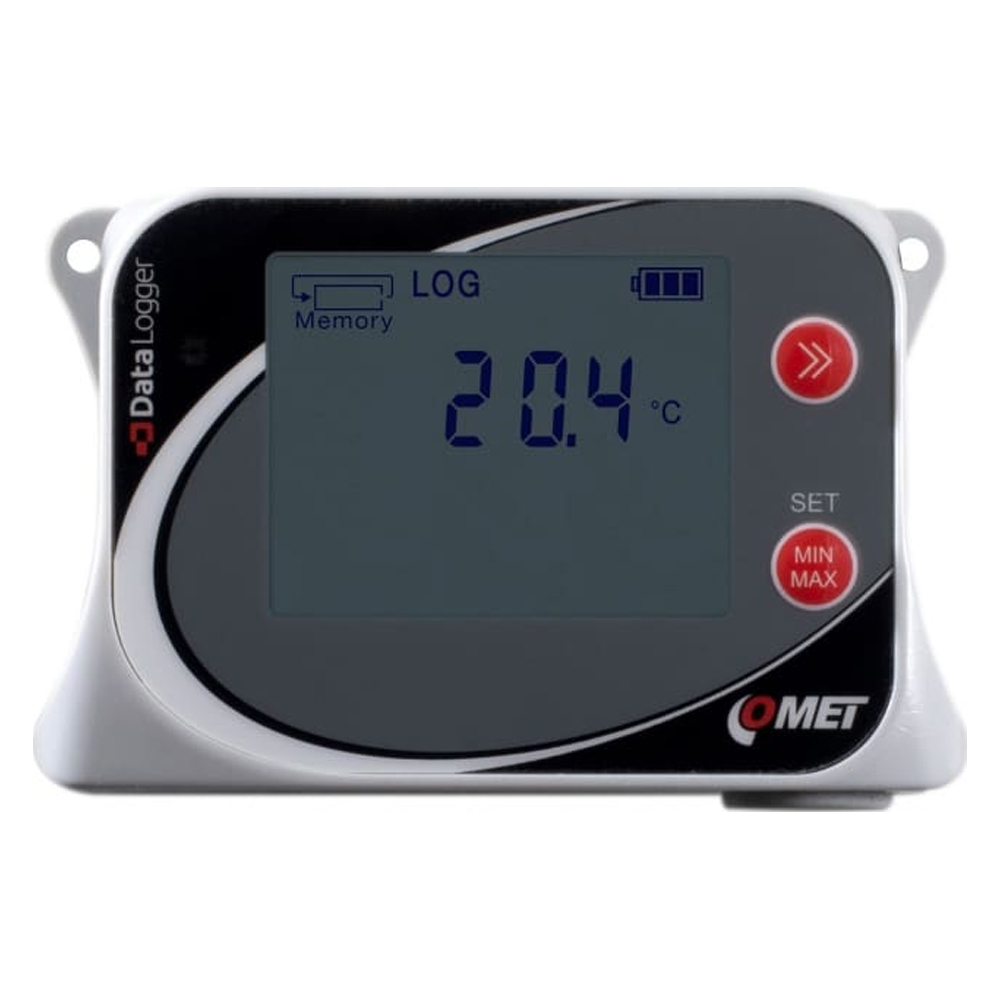

Temperature Data Logger with Built-in Sensor, One-Channel Thermometer
This model is equipped with only one internal temperature sensor, no additional probes and sensors can be connected. It is characterized by a simple and compact design and a relatively long response to a temperature jump. The device is placed directly in the measured space. The battery in the device cannot be charged.
Datalogger is designed for temperature recording
The recording is performed in non-volatile electronic memory. The data can be transferred to a PC via USB-C. In case of exceeded set limits alarms are indicated by LED, LCD, and acoustically by built-in beeper.
The device includes a Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
Manufacturer Specs
| Temperature Sensor | |
| Measuring range | -30 to +70 °C |
| Accuracy | ±0.4 °C |
| Resolution | 0.1 °C |
| Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) | 15 min |
| General Technical Data | |
| Operating temperature | -30 to +70 °C |
| Channels | internal temperature sensor |
| Memory | 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode |
| Recording interval | adjustable from 1 s to 24 h |
| Display and alarm refresh | adjustable 1 s, 10 s, 1 min |
| Recording mode | noncyclic – data logging stops after filling the memory cyclic – after filling memory oldest data is overwritten by new |
| Real time clock | year, leap year, month, day, hour, minute, second |
| Power | Lithium battery 3.6 V, size AA |
| Protection class | IP67 |
| Dimensions | 61 x 93 x 32 mm |
| Weight (including batteries) | approx. 120 g |
| Warranty | 3 years |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 70 C |
| Min Temperature | -30 C (-22 F) |
| Power Source | Battery |
| SAMPLE RATE/Intervals | Adjustable from 1s to 24h |
| Accuracy | ±0.4 °C |
| LCD Screen | Yes |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| Interfaces I/O | USB-C |
| IP Rating | IP67 |
| Product Weight | 0.26 LBS |
| Shipping Weight | 0.3 LBS |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Czech Republic |
