Comet U0122
- A solution for every need, every budget – economy and premium dataloggers
- High quality, accurate and stable sensors
- Built-in battery operated
- Built-in printer

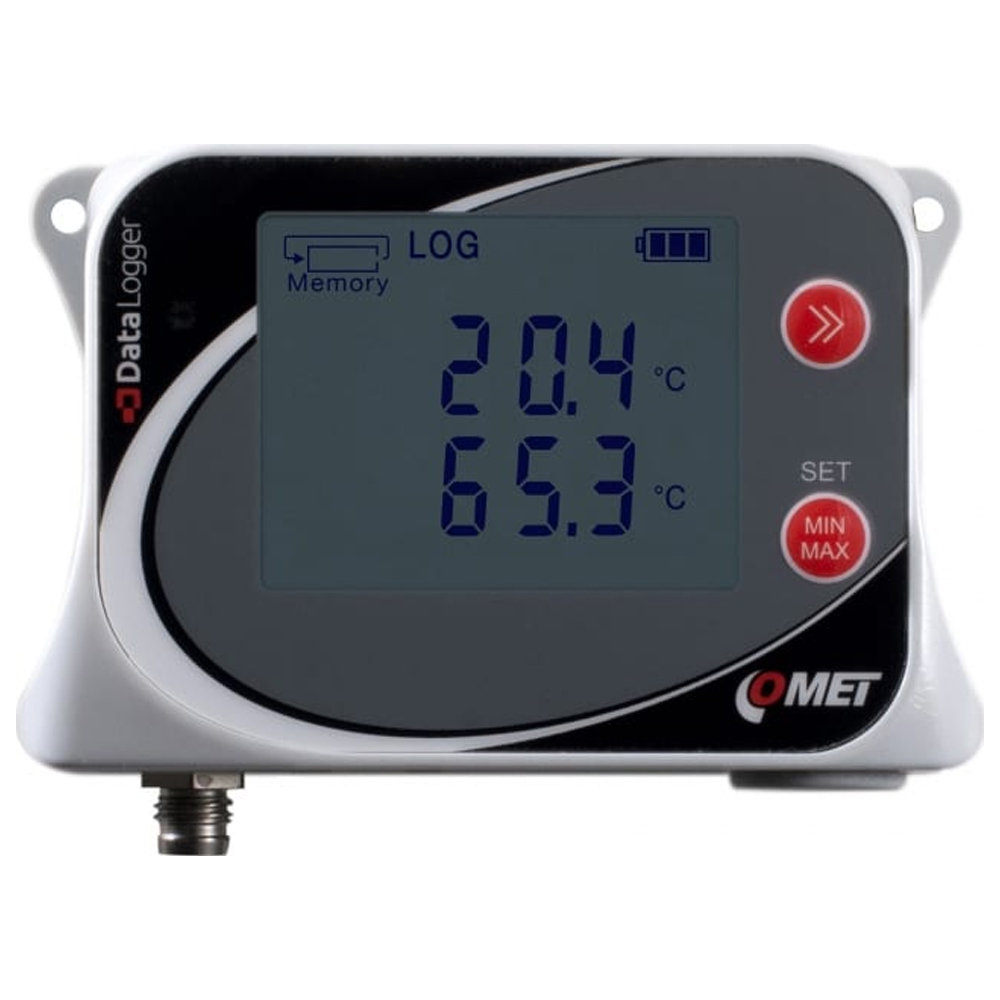

Dual Channel Temperature Data Logger for One External Pt1000 Probe with Internal Temperature Sensor
Datalogger is designed to record temperature from one external Pt1000 probe and internal temperature sensor. The recording is performed in non-volatile electronic memory. The data can be transferred to a PC via USB-C.
In case of exceeded set limits alarms are indicated by LED, LCD, and acoustically by built-in beeper. The device includes a Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
This model allows measuring the temperature of the internal sensor and one external probe series Pt1000/E. The response to a temperature jump depends on the connected probe design but is usually much faster than the response of the internal sensor. It is often used, among other things, to monitor large areas where a device requiring individual monitoring is located. The maximum length of each probe lead should not exceed 15 m. It is recommended to use shielded cables. To maintain the IP rating, the unused probe connectors should be provided with a supplied closing cap. The battery in the device cannot be charged.
Manufacturer Specs
| Technical Data | |
| Measuring range | -30 to +70 °C |
| Accuracy | ±0.4 °C |
| Resolution | 0.1 °C |
| Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) | according to the connected probe |
| General Technical Data | |
| Operating temperature | -90 to +260 °C |
| Channels | internal temperature + 1x external temperature probe |
| Memory | 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode |
| Recording interval | adjustable from 1 s to 24 h |
| Display and alarm refresh | adjustable 1 s, 10 s, 1 min |
| Recording mode | noncyclic – data logging stops after filling the memory cyclic – after filling memory oldest data is overwritten by new |
| Real time clock | year, leap year, month, day, hour, minute, second |
| Power | Lithium battery 3.6 V, size AA |
| Protection class | IP67 |
| Dimensions | 61 x 93 x 32 mm |
| Weight (including batteries) | approx. 120 g |
| Warranty | 3 years |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 70 C |
| Min Temperature | -30 C (-22 F) |
| # Inputs/Channels | 2 |
| SAMPLE RATE/Intervals | Adjustable from 10s to 24h |
| Accuracy | TEMPERATURE SENSOR: ±0.4 °C TEMPERATURE SENSOR – EXTERNAL PROBE PT1000: ±0.2 °C (-50 to +100 °C); ±0.2 % from reading from +100 to +260 °C; ±0.4 % from reading from -90 to -50 °C |
| LCD Screen | Yes |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| IP Rating | IP67 |
| Product Weight | 0.26 LBS |
| Shipping Weight | 0.3 LBS |
| Battery Type | AA |
| Country of Origin | Czech Republic |
