Descripción

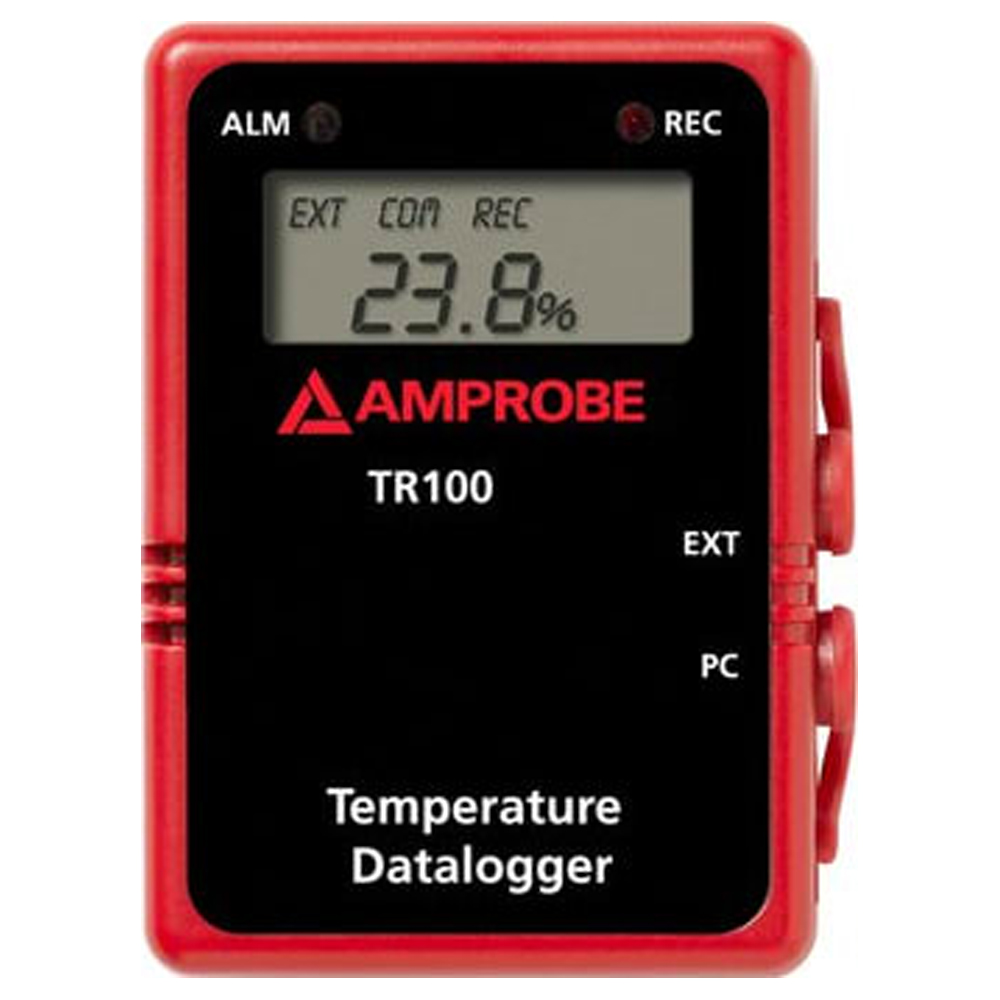

Amprobe’s Model TR100-A takes temperature reading in a compact size unit. Use the included Amprobe software for recording measurements to your personal computer. Set up these parameters for recording: Sample interval timing, Start/Stop, Date and Time, HI/LO Alarm Threshold, Unit Selection, and number of Memory points.
- Instrument for indoor air quality monitoring
- Wall mountable
- Digital display
- Air Temperature displays in Celsius/Fahrenheit is selectable
- Offers visible LEDs warnings to monitor IAQ condition
- Small size design with USB interface
- Memory points selection : 1000, 2000, 4000, 8000, 12000, 16000
- IP65 rated for dust and moisture
Manufacturer Specs
| Display | 3¾ digit liquid crystal display (LCD) with a maximum reading of 1999 |
| Sampling points | 1K / 2K / 4K / 8K / 12K / 16K |
| Resolution | Temperature: 0.1°C / 0.1°F |
| LED | Red: Hi, LO Alarm; Yellow: Record |
| Low battery indication | The “Batt” is displayed when the battery voltage drops below the operating level |
| Auto power off | Approx 10 minutes |
| Operating environment | -10°C to 60°C (14°F to 140°F), 0 to 100 %RH |
| Storage temperature | -40°C to 85°C (-40°F to 185°F), 0 to 100 %RH |
| Measurement ranges | Temperature Internal sensor -40°C to 85°C (-40°F to 185°F) External probe -40°C to 100°C (-40°F to 212°F) |
| Sensor | Silicon photodiode and filter |
| Altitude | 2000m, indoor operation |
| Power supply | 1 X 3V coin battery IEC-CR2032 |
| Battery life | 2 years with 7200-sec sampling rate |
| Dimensions | 75.5 x 53 x 23.5 mm (2.95 x 2.16 x 0.9 in) |
| Weight | 0.02 kg (0.044 lb) |
| Accuracy | Temperature ± 0.6°C (-20°C to 50°C); ± 1.2°C for all others ± 1°F (-4°F to 122°F); ±1.2°F for all others |
| IP Rating | IP65 |
| Agency Approvals & Certifications | CE – EMC Conforms to EN61326-1 |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | T |
| Max Temperature | 100 C |
| Min Temperature | -40 C (-40 F) |
| Battery Life | 2 YEARS (17520 HR) |
| Input Source | External Probe |
| # Data Points | 16000 |
| # Inputs/Channels | 2 |
| Accuracy | Temperature ± 0.6°C (-20°C to 50°C); ± 1.2°C for all others ± 1°F (-4°F to 122°F); ±1.2°F for all others |
| LCD Screen | Yes |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Unique Features | Instrument for indoor air quality monitoring Wall mountable Digital display Air Temperature displays in Celsius/Fahrenheit is selectable Offers visible LEDs warnings to monitor IAQ condition Small size design with USB interface Memory points selection : 1000, 2000, 4000, 8000, 12000, 16000 IP65 rated for dust and moisture |
| Warranty | 1 YEARS |
| IP Rating | IP65 |
| Product Weight | 0.044 LBS |
| Product Height | 0.9 IN |
| Product Length | 2.95 IN |
| Product Width | 2.16 IN |
| Data Logging | No |
| Battery Type | CR2032 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 2.30 IN |
| Shipping Length | 7.00 IN |
| Shipping Width | 5.50 IN |
