Series BDL Button Data Logger

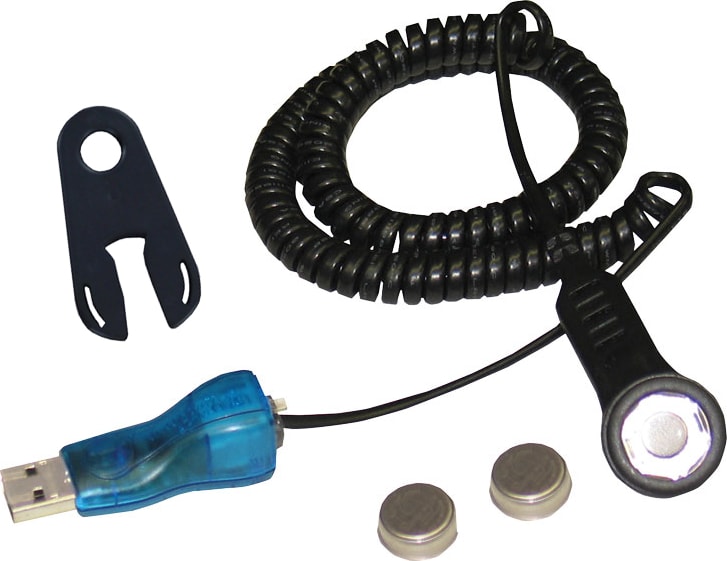

Temperature and humidity button data logger kit with (2) BDL-2, (1) USB interface, and (1) clip.
- Compact to fit in small areas and durable to work in hostile environments
- Self-powered unit gives no need for external power supply
- Magnetic mounting for quicker installation
The Series BDL Button Data Logger records temperature and humidity in applications where size and cost effectiveness are vital. Housed in a compact stainless steel case, the BDL is durable in hostile environments, while also being able to be inserted in small items and packages. The Series BDL-K Logger Kit includes 2 buttons, 2 magnets, an interface cable, and a plastic button holder.
Applications
- Food processing verification
- Pharmaceutical storage
- Transportation of temperature sensitive goods
- HVAC system testing and balancing
Manufacturer Specs
| General Specifications | |
| Range | BLD-1: -40 to 185°F (-40 to 85°C) BDL-2: -4 to 185°F (-20 to 85°C); 0 to 100% RH. |
| Memory Size | BDL-1: 2048 readings; BDL-2: 4096 temperature and 4096 humidity readings (low resolution), 2048 temperature and 2048 humidity readings (high resolution). |
| Accuracy | BDL-1: ±1.5°F (±1°C) from -22 to 158°F (-30 to 70°C) BDL-2: ±0.9°F (±0.5°C) from 14 to 158°F (-10 to 70°C), ±5% RH. |
| Resolution | BDL-1: 8 bit BDL-2: 8 or 11 bit. |
| Sampling Method | Stop on memory full or continuous recording. |
| Sampling Rate | BDL-1: Selectable from 1 to 255 m. BDL-2: Selectable from 1 s. to 24 hrs. |
| Computer Requirements | Windows 98, Windows 2000, Windows ME, Windows NT, Windows XP, and Windows Vista operating system with 16 MB RAM, one free USB port. |
| Power Requirements | 3V lithium metal battery, internal, non-replaceable. |
| Battery Life | BDL-1: 10 yrs. (approx) BDL-2: 5 yrs. (approx). |
| Alarms | Programmable high/low. |
| Interface | USB port (cable included with kits). |
| Housing Material | 305 SS. |
| Weight | 0.14 oz (4 g). |
| Agency Approvals | CE, RoHS. |
