Eagle Eye DLV-Pro
- Record, view, & analyze cell voltages with statistical & graph analysis
- Targeted applications include: Telecom, Utilities, & Motive Power
- Optional memory configurations to best suit a variety of applications
- Perform a full battery discharge test & analyze results on-site during the test
- Upload & view measurement data from the SG-Ultra Max digital hydrometer
- Replay animated discharge tests
- Export test data to PDF reports or Excel spreadsheets

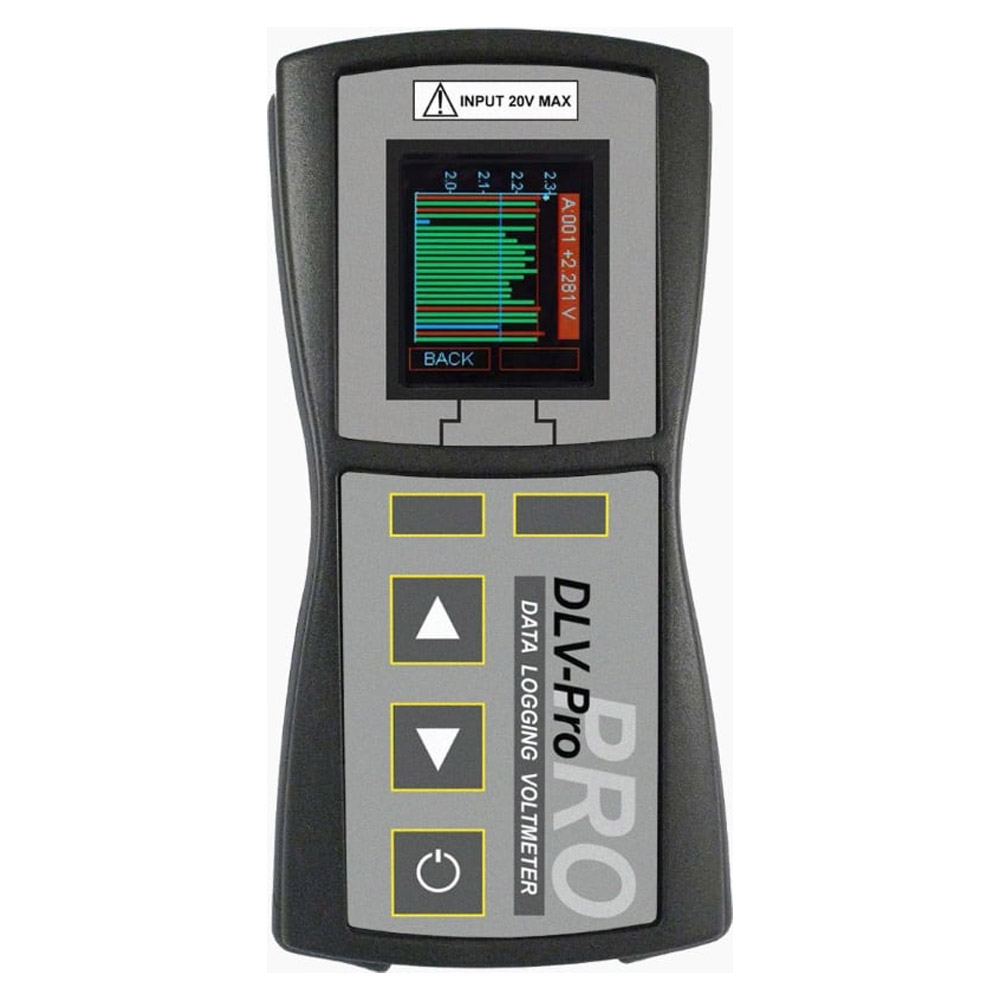

Data Logging Voltmeter, 0-20 VDC Range
The DLV-Pro Data Logging Voltmeter automatically measures and records cell voltages in less than 1 second, enabling hundreds of cell voltage readings to be measured from a string of cells without having to write down reading or push a button. Additionally, S.G. measurements can be uploaded directly to the unit from the Eagle Eye SG Ultra Max Digital Hydrometer for a complete battery testing solution.
The DLV-Pro can also perform a full discharge test on up to 256 cells by recording up to 11 timestamped voltage readings for each cell, along with time-stamped load current readings (via a shunt/ current probe) and initial and/or final hydrometer readings via the SG-Ultra Max.
The DLV-Pro provides immediate, on-site analysis of all battery test data including threshold, statistical and graphical reporting, battery and individual cell discharge curves. Threshold limits for all modes can be set manually on the instrument or via the USB/PC interface. Test data can be uploaded to a PC using the included Winter 5.1 Battery Analysis Software.
Manufacturer Specs
| Measurement Range | 0 – 20 VDC |
| Accuracy | 0 – 20 V: 1 mV |
| Resolution | 0 – 4 V: ± 5 mV / 0 – 20 V: ± 10 mV |
| Test Speed | 1 second per cell |
| Display | 35 x 28 mm (1.4 x 1 in) color LED |
| Operating Environment | Temperature: 0 – 40 °C (32 – 104 °F) Humidity: 0 – 80% (0-31°C) / 0 – 50% (32-40°C) |
| Dimensions | 165 x 76 x 33 mm (6.3 x 3 x 1.3 in) |
| Weight | 298 g (10.5 oz) |
| Options | Option A: 8 Strings of 256 VDC, 8 Strings of 256 S.G., 20 Strings of 48 VDC Option B: 20 Strings of 48 VDC, 20 Strings of 48 S.G. |
Tech Specs
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
|---|---|
| Max Voltage | 20 V |
| Min Voltage | 0 V |
| Power Source | AC Line, DC Line |
| Accuracy | 0 – 20 V: 1 mV |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Unique Features | Record, view, & analyze cell voltages with statistical & graph analysis Targeted applications include: Telecom, Utilities, & Motive Power |
| Interfaces I/O | USB |
| Storage | USB Flash Drive |
| Product Weight | 298 GRAMS (0.657 LBS) |
| Product Height | 76 M (2992.13 IN) |
| Product Length | 165 MM (6.50 IN) |
| Product Width | 33 MM (1.30 IN) |
| Data Logging | No |
| Calibration Included | NIST Calibration |
| Country of Origin | United States |
