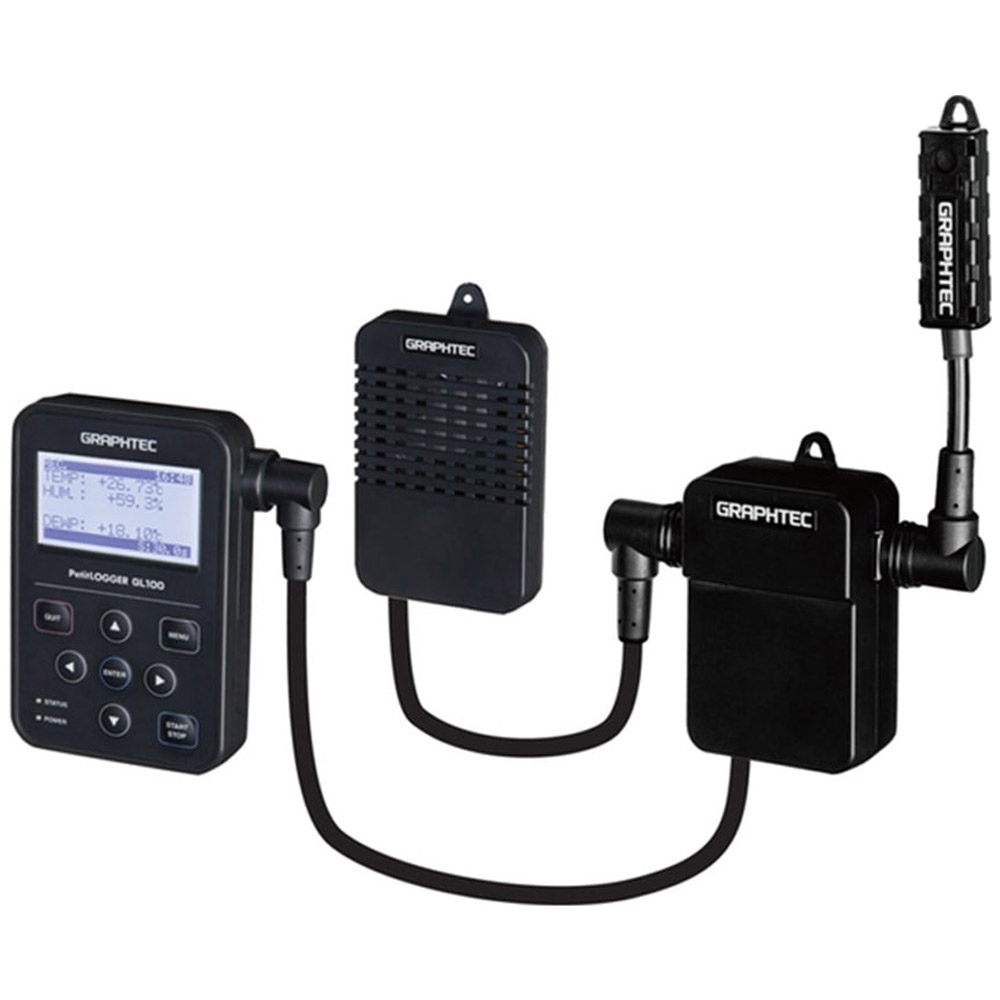

Graphtec GL100-WL-TH-DPA-CO2 Wireless Data Logger with Temperature / Humidity Sensor and CO2 Compact Sensor
- Wireless Data Logger with Temperature / Humidity Sensor and CO2 Compact Sensor
- Real-time data capturing
- Display the captured data value to the LCD in real-time and save the monitoring values
- Set conditions using the Menu setting
Wireless datalogger with Temperature/Humidity Sensor and CO2 Compact Sensor and 4.9MB on-board memory, micro-SD memory slot, USB PC interface, LCD display. Solution with GS-CO2 sensor requires the use of the MicroUSB power cable, and is not recommended with the use of the AA batteries.
Graphtec GL100-WL GL100 Main Unit, Standard Model, Required to Use with Sensor Units or Input Adapters.
It is modular type that is able to support variety measurement by exchanging the input module. Multiple sensors and the input terminal are available for corresponding to the application.
- Easy measurement by multifunction input
- Available the software for PC & Smart devices
- Possible to check the data in multiple method
- Reliable measurement with useful functions
- Typical applications
- Sales network
Functions:
While using Wireless LAN (in GL100-WL):
- Output the saved data from the internal memory
- Full control of the GL100 from the PC application software
- Simple control of the GL100 from the application software of Smart Device
- Send warnings via the e-mail
While using USB port:
- Output captured data in real-time
- Output the saved data from the internal memory
- Full control of the GL100 from the PC application software
Graphtec Compact CO2 Sensor, GS-CO2
- GS-CO2 Compact CO2 Sensor
- CO2 density sensor with a measuring range of 0-9,999ppm concentration.
The compact GL100 datalogger CO2 density sensor designed for industries requiring climate monitoring and control such as greenhouse, hydroponics, agriculture and botanical rooms gives managers real time environment and climate monitoring. Fine arts museums and galleries are also served for controlled environment settings where the GL100 excells!
Graphtec Temperature / Humidity Sensor, GS-TH
- GS-TH Temperature Humidity Sensor
Relative Temperature and Humidity Sensor. The compact GL100 temperature humidity datalogger sensor designed for industries requiring climate monitoring and control such as greenhouse, hydroponics, agriculture and botanical rooms gives managers real time environment and climate monitoring. Fine arts museums and galleries are also served for controlled environment settings where the GL100 excells!
Manufacturer Specs
| General Specification |
| Number of channels |
Varies by the input module used, and measurement type is fixed with each input module |
| Output signal |
Alarm (1 channel), solid state switch with optical isolation (Optocoupler, Max. load is the 30 V, 50 mA) |
| Interface to PC |
USB (micro USB B type connector), Wireless LAN (WLAN) in GL100-WL |
| Wireless LAN (in GL100-WL) |
Standards: IEEE802.11b, Communication distance: approx. 40 m
* It varies by the condition of the LAN. Real-time transfer rate is up to 500ms.
The WLAN is able to disable. (It is enabled in the factory default setting) |
| Storage device |
Built-in memory: RAM (Approx. 4.9 MB)
External memory: microSD memory card
* Maximum file size for captured data is 1.9MB. It is recommended to use the microSD memory card that supports sleep mode.
(Example: TS4GUSDHC4, made by Transcend) |
| Display |
LCD (backlit monochrome, graphical type 128 x 64 dots)
Contents: Captured data and Setting menu (Stored data is not able to replay.
It is able to replay using the PC application software.) |
| Alarm |
• Action
Outputs the signal when the measuring data reaches the present conditions of alarm
• Source
Level of measuring data
• Detecting method
Condition: Higher or lower (signal is higher or lower than the threshold)
Combination: OR |
| Trigger |
• Action
Start or stop the recording of captured data by trigger
• Source
Start trigger: OFF, Level (*), Alarm, or Date
Stop trigger: OFF, Level (*), Alarm
* Level trigger is available in the analog input of the GS-4VT, GS-4TSR, and GS-3AT module.
• Detecting method of the Level (*)
Condition: Rising or Falling (signal is passed through the threshold)
Combination: OR or AND |
| Dustproof and waterproof |
IP54 compatible (*)
* It is effective only in the condition that the input module is set to the GL100 and then the covers of connector and battery are closed.
It is recommended to replace the packing of cover in periodically. |
| Power source |
• Alkaline battery (AA size x 2)
• USB bus-power (5V, 200 mA) (*)
* When AC adapter for USB device is used, the required power capacity is 5V, 1A. Battery and AC adapter is not included. |
| Operating environment |
Temperature: -10 °C to 50 °C
Humidity: up to 80 % RH (non condensed) |
| External dimension [W x D x H] |
Approx. 66 x 100 x 27 mm (exclude protrusion) |
| Weight |
GL100-N: Approx. 125 g, GL100-WL: Approx. 130 g |
Tech Specs
Test Equipment General Attributes
|
| Interfaces I/O |
USB |
| Storage |
Micro SD |
| Product Weight |
0.3 LBS |
| Battery Type |
AA |
| Power Supply Voltage |
Battery Powered |
| Country of Origin |
Japan |
