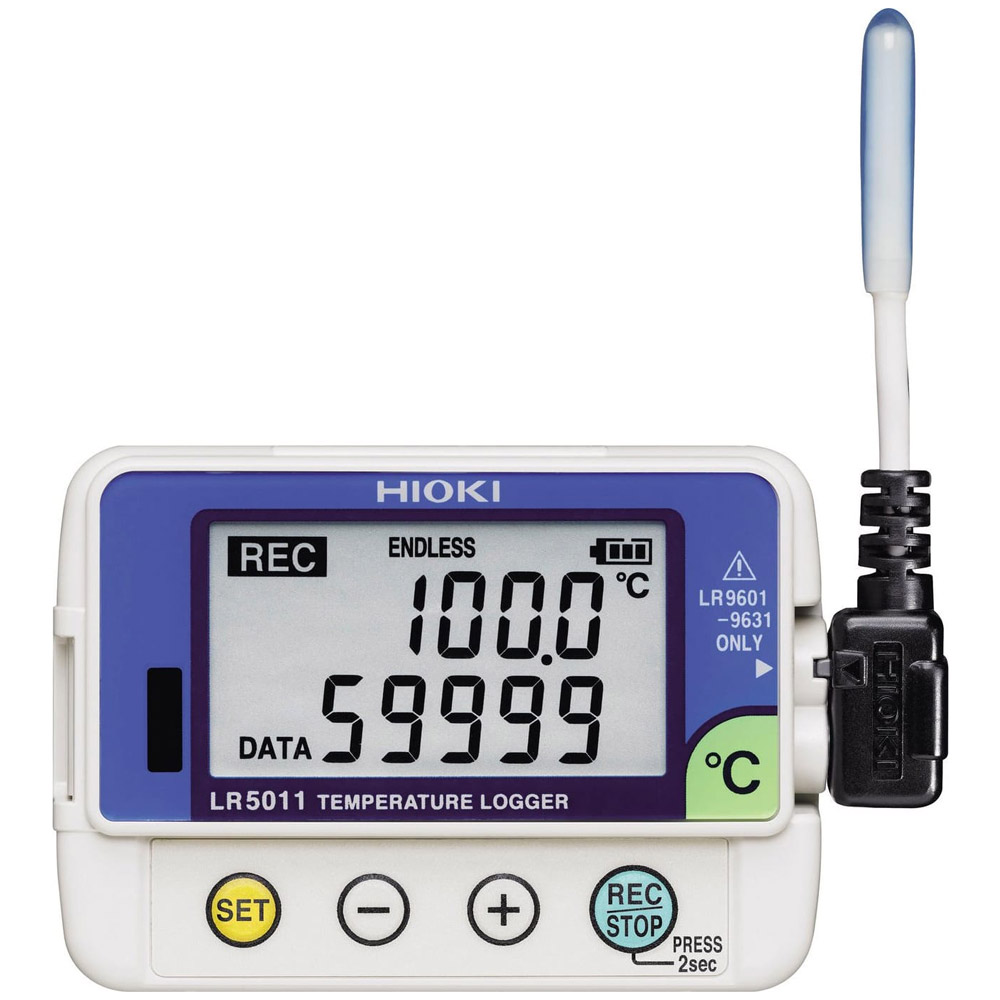

Hioki LR5011 – Mini Data Logger Measure Temperature with External Sensor using Single Channel Data Logger
- Temperature 1ch
- Easily mount the light-weight , pocket-sized loggers in tight spaces
- Easy-to-see dual display
- Transfer data to PC even during recording
- Replace batteries while recording (30 second limit)
The LR5011 logs temperature over 1 channel in as fast as 1 second intervals. Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals.
The new HIOKI compact data logger series easily records temperature, voltage, current, and instrumentation signals over long periods. Carried over from its highly reputed predecessor, this series includes features and functions such as 7 times the recording capacity of former models, data import during recording, continuous measurement even during battery replacement, and intuitive PC software. Flexible and easy-to-use at single and multiple locations, the new HIOKI compact data logger series is ideal for any application that requires simple set-up but long-term, reliable recording capabilities.
Temperature Logger / Humidity Logger
Manage the temperature and humidity in offices and factories. Visually monitor the data to save on air-conditioning and heating costs.
Instrumentation Logger / Voltage Logger
Record fluid flow such as for water, gas and oil. Measure flow meter output signals to monitor flow trends.
Clamp Logger
Manage the current consumption of plant and building equipment. Visually monitor power costs to efficiently conduct energy and cost-saving activities.
Advanced Features and Functions
Install Almost Anywhere
Easily mount the light-weight, pocket-sized loggers in tight spaces.
Easy-to-see dual display
Temperature and humidity or current channels can be displayed. View maximum and minimum values while measuring.
Moist environments
IP54 splash-proof rating withstands operation in extremely humid environments like kitchens and pipe rooms. (Except Model LR5051).
Transfer data even during recording
Continue to record even when transferring data.
Recording capacity up to 7 times previous models
Large internal memory stores 60,000 data points per channel. Long-term recording capability exceeds that of previous models.
| Interval times | Instantaneous value | Statistical value |
| 1s | 16h 40m | – |
| 2s | 1d 9h 20m | 8h 20m |
| 5s | 3d 11h 20m | 20h 50m |
| 10s | 6d 22h 40m | 1d 17h 40m |
| 15s | 10d 10h | 2d 14h 30m |
| 20s | 13d 21h 20m | 3d 11h 20m |
| 30s | 20d 20h | 5d 5h |
| 1m | 41d 16h | 10d 10h |
| 2m | 83d 8h | 20d 20h |
| 5m | 208d 8h | 52d 2h |
| 10m | 416d 16h | 104d 4h |
| 15m | 625d | 156d 6h |
| 20m | 833d 8h | 208d 8h |
| 30m | 1250d | 312d 12h |
| 60m | 2500d | 625d |
| Note: The maximum recording time depends on battery life. The battery may need to be replaced during long-term recording. | ||
Record without missing fluctuations
With usual (instantaneous value) recording at long intervals, detailed fluctuations occurring within the intervals are missed. However, with the statistical value recording mode, detailed fluctuations are captured even when they occur during long recording intervals. In STAT mode, measurement is taken every second, and the maximum, minimum, average, and instantaneous values within the specified interval are recorded.
Batteries last up to 2 years
Energy-efficient design provides up to two years of battery life (For the LR5011 only. Actual battery life depends on model type and settings).
Replace batteries while recording
Recording continues for about 30 seconds even with the battery removed.
Never worry about a dead battery
The worry-free backup function preserves measurement data even after the battery dies.
Never worry about operating errors
Worry-free backup preserves recorded data even if a new measurement is started by mistake.
Bundled Software Ensures Smooth and Easy Data Analysis
Import data to a PC and create graphs
Use the LR5000 Utility program to import Data Logger data to a PC to make graphs and analyze data further. Easily print results using your PC.
Show specific values using the cursor function
Use the A/B cursors to select any location on a graph and display its value. The PC software can also calculate maximum, minimum, and average values between A and B cursors.
Display data from former Data Logger models
The PC application also supports data collected from the HIOKI 36XX Series Data Loggers.
| LR5000 Utility Specifications | |
| Configurating Data Logger |
|
| Graph display |
|
| Print function |
|
| Data processing |
|
| Operating environment |
|
Manufacturer Specs
| Model LR5011 Specifications | |
| Measurement items | Temperature 1ch (with optional sensor) |
| Measurement range | -40.0 °C to 180.0 °C *Depends on measurement range of sensor |
| Basic accuracy | ±0.5 °C (main unit + sensor accuracy, at 0.0 to 35.0 °C) |
| Note: Basic accuracy is typical value, refer to the detailed catalog | |
| Storage capacity | Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data |
| Recording interval | 1 to 30 sec., 1 to 60 min., 15 selections |
| Recording modes | Instantaneous recording: at every recording interval Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval |
| Recording methods | One-time recording: Stop recording when the memory capacity is full Endless recording: Continue recording even when the memory capacity is full (old data is overwritten) Start: Logger button operation or scheduled time Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording) |
| Other functions | Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced |
| Waterproof and dust-proof | IP54 (EN60529) (with sensor connected, but not including sensor tip) |
| Interfaces | Infrared optical communications with LR5091, LR5092-20 |
| Power supply | LR6 (AA) Alkaline battery × 1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 °C) |
| Dimensions and mass | 79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz) |
| Accessories | LR6 (AA) Alkaline battery (built-in internal) × 1, Instruction manual × 1, Operation guide × 1, Kickstand × 1 |
| Model | LR5001 | LR5011 | |
| Humidity Logger | Temperature Logger | ||
| Features | Temperature and humidity are recorded simultaneously using supplied or optional temperature and humidity sensors. | Temperature measurement with external temperature sensor. Select the sensor according to the measurement object | |
| Measurement items | Temperature 1ch and Humidity 1ch | Temperature 1ch | |
| Measurement range | Temperature : -40°C to 85°C Humidity : 0% to 100%rh |
-40.0°C to 180°C *Depends on measurement range of sensor. |
|
| Accuracy |  |
 |
|
| Waterproof and dustproof performance | IP54 (splash-proof construction) | ||
| Operating temperature and humidity | -20°C(-4°F) to 70°C(158°F) , 80%rh or less (non-condensating) | ||
| Dimensions & Mass | Approx. 79mm(3.11in)W×57mm(2.24in)H×28mm(1.10in)D 105g(3.7oz) | ||
| Power supply | LR6 (AA) Alkaline battery 1.5V×1 | ||
| Accessories | Humidity sensor LR9504×1, Kickstand | Kickstand | |
| LR6 (AA) Alkaline battery 1.5V×1, Instruction manual ×1, Operation manual×1 | |||
| Battery life | Case 1 : Approx. 3 months Case 2: Approx. 20 days Case 1 : 1min. recording interval, power-saving mode, Instantaneous recording, environmental temp.20°C |
Case 1 : Approx. 2 years Case 2: Approx. 2 months Case 2 :1sec. recording interval, power-saving mode, Instantaneous recording, environmental temp.20°C |
|
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 180 C |
| Min Temperature | -40 C (-40 F) |
| Battery Life | 20 DAYS (480 HR) |
| Input Source | External Probe |
| # Data Points | 60000 |
| # Inputs/Channels | 1 |
| SAMPLE RATE/Intervals | 1 sec to 60min |
| Accuracy | +/- 2.0 degrees at 85C +/- 1.0 degrees at -40C |
| LCD Screen | Yes |
Test Equipment General Attributes |
|
| Interfaces I/O | Other |
| Product Weight | 3.7 OUNCES (0.231 LBS) |
| Product Height | 1.1 IN |
| Product Length | 3.1 IN |
| Product Width | 2.2 IN |
| Shipping Weight | 4.26 LBS |
| Data Logging | Yes |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Japan |
