Descripción

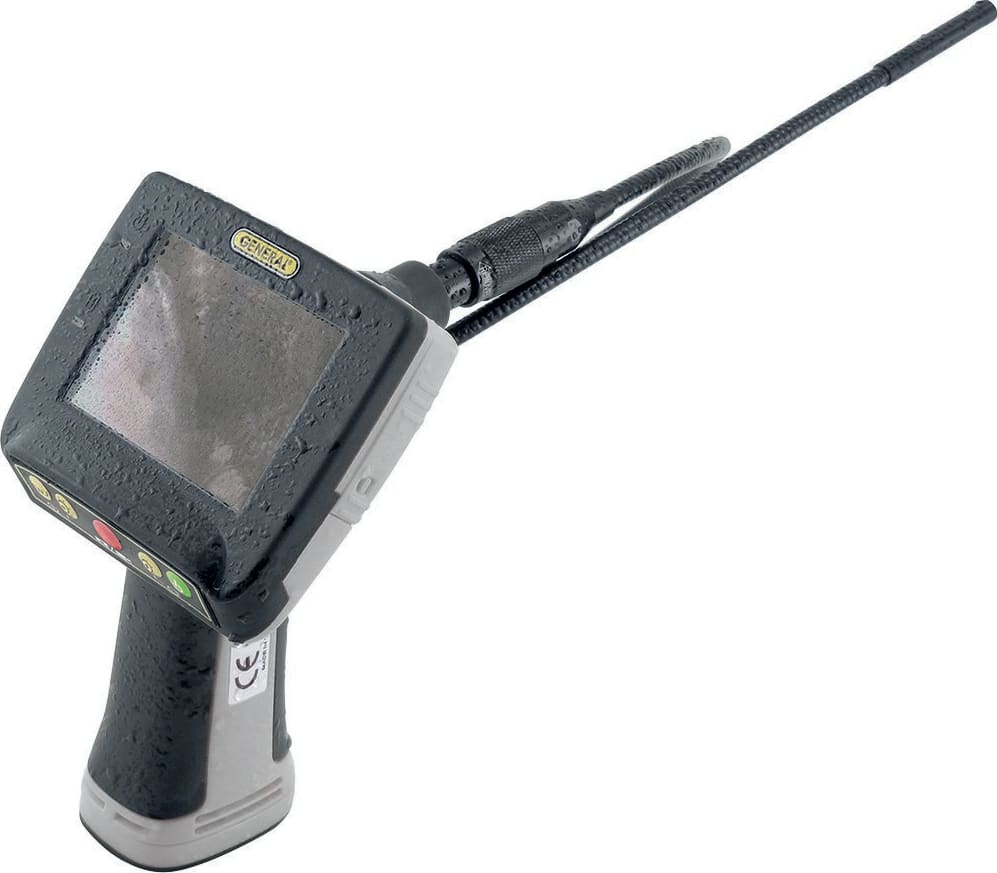

The DCS660A is one of only four video inspection systems on the market with an IP67 waterproof grip and monitor as well as an IP67 waterproof camera-tipped probe. The other systems include another recording model DCS665 and General’s real-time (non-recording) video systems DCS600A and DCS605.
The DCS660A comes with an 8mm diameter x 1m (3.3 ft.) long, far-focus probe with a depth of field of 2.4 in. to 10 ft. (60mm to 3m).
The Wet/Dry Scope’s water tightness makes the system ideal for plumbing-related tasks like inspecting water or sewer lines carrying running water. The system also can be used to inspect parts of boats, ships or bridges just below the surface. Because the entire unit is impervious to water you can use it freely around water without worrying about accidentally “dunking” the grip and monitor. No other camera scope with an integral monitor—other than the DCS600A DCS605 and DCS665—is completely watertight.
Operated in real-time video mode, the Recording Wet/Dry Scope uses only three of the five control buttons to execute five functions; powering on/off, 1 to 4X zoom, increasing and decreasing brightness, and inverting the field of view, making it very easy to learn to use. Video within the probe’s field of view is displayed on a large, crystal-clear 3.5 in. (89mm) diagonal color LCD.
Alternatively, recorded video can be viewed on an NTSC- or PAL-format television by utilizing the included A/V cable. The scope’s recording capabilities make it possible to document—with high-resolution videos and images—what the probe “sees.”
Pressing the front-panel imaging button activates the image storage function. You can record and store either a still image or an AVI video (depending on how you configure the button) of the probe’s field of view on a 4GB Micro SD memory card supplied with the system. The same button is used to view (play back) recorded images and videos on the unit’s LCD. Alternatively, recorded images and videos can be viewed on a larger screen by ejecting the SD card and plugging it into a laptop or desktop PC, or by connecting the scope to a PC via the included USB cable.
The scope’s recording functions are controlled by a familiar menu-driven interface. Pressing the MENU button reveals a hierarchical control structure that lets you:
- Set the current date and time
- Set the video frame rate to 20, 25 or 30 frames per second (fps)
- Format the Micro SD card
- Choose NTSC or PAL compatibility for video sent to a TV monitor
- Choose English, German, Spanish, French or Dutch as the language of on-screen menus and prompts
Manufacturer Specs
| CAMERA TIPPED PROBE | |
| Type / Diameter / Length | Flexible-obedient far-focus / 8mm (0.31 in.) / 1m (3.3 ft.) |
| Camera Depth of Field | 2.4 in. to 10 ft. (60mm to 3m) |
| Probe Minimum Bending Radius | 1.77 in. (45mm) |
| Camera Field of View | 54° |
| Camera Depth of Field | 1.2 to 2.4 in. (30 to 60mm) |
| Camera and Recording Resolution | 640 x 480 pixels (VGA) |
| Camera Light Source | 4 white LEDs |
| CONSOLE | |
| Display Type / Size Color | TFT / 3.5 in. (89mm) diagonal |
| Display Resolution | 320 x 240 pixels (QVGA) |
| Power Consumption | 400mA max @ 6VDC |
| Operating Temperature | 14° to 122°F (-10° to 50°C)@15 to 85% RH |
| Dimensions of Grip and Console | 4.1 x 7.0 x 5.3 in. (104 x 178 x 135mm) |
| Weight of Grip and Console | 1.1 lb. (500g) |
| Power Source | (4) “AA” batteries (not included) |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 3.3 Ft (39.6 IN) |
| Shaft Diameter | 0.39 IN (0.025 M) |
| Screen Size | 3.4 IN |
| Detachable Screen | No |
| Screen Type | LCD |
| Video Resolution (Boroscopes) | 720×480 |
| Image Resolution | 640×480 |
| Video Output Format | NTSC, PAL |
| IP Rating | IP67 |
Test Equipment General Attributes |
|
| Unique Features | 8mm diameter x 1m (3.3 ft.) long, far-focus probe |
| Warranty | 1 YEARS |
| Interfaces I/O | USB |
| Storage | Micro SD |
| Product Weight | 1.1 LBS |
| Product Height | 5.00 IN |
| Product Length | 13.25 IN |
| Product Width | 10.75 IN |
| HTS/Schedule B Number | 8528.59.1500 |
| ECCN Number | 3A992 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 5.00 IN |
| Shipping Length | 13.25 IN |
| Shipping Width | 10.75 IN |
| Other Information | Dimensions of Grip and Console: : 4.1 x 7.0 x 5.3 in. |
