Descripción
Easy, wireless collection of temperature and humidity – the ideal logger for managing production plants and agricultural sites.

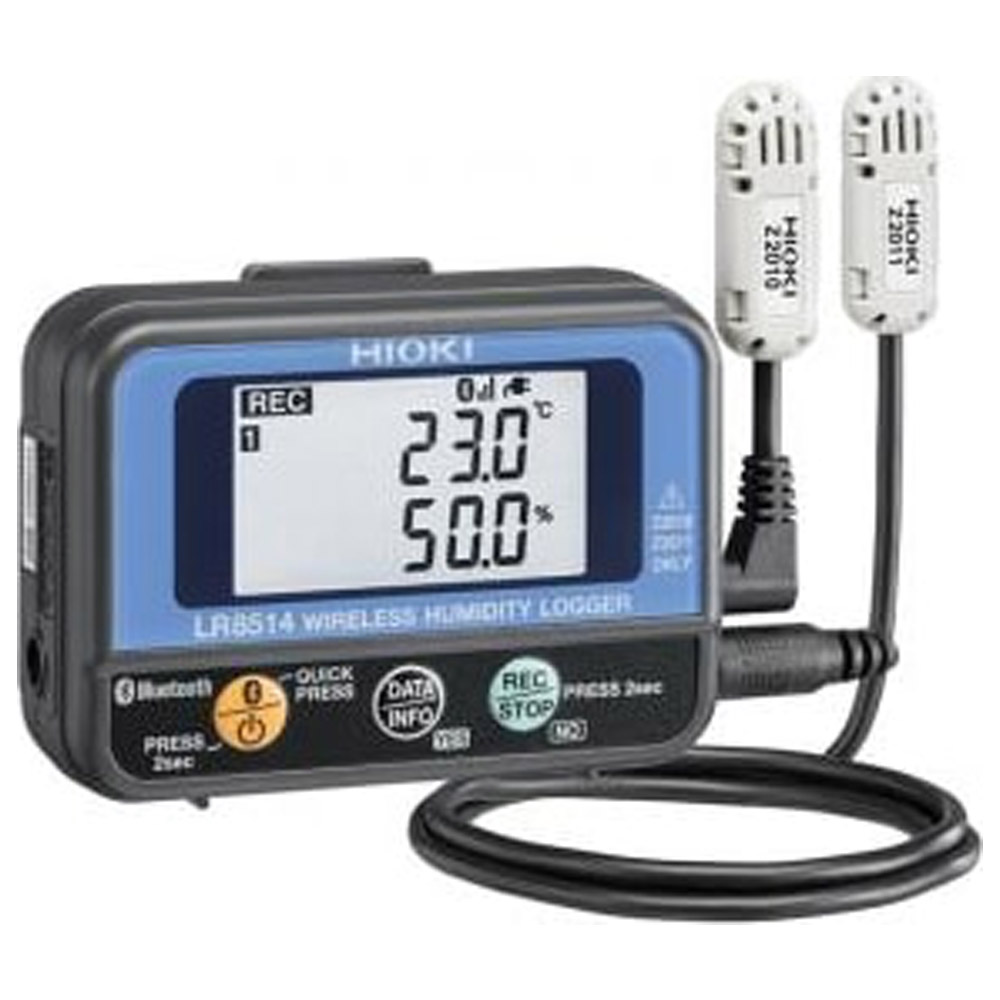

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8514 Wireless Humidity Logger provides easy, wireless collection of temperature and humidity data, and is the ideal tool for managing the environmental condition of production plants and agricultural sites.
The LR8514 alone is not capable of making measurements. Only the temperature and humidity sensors affect the measurement accuracy and are subject to calibration. The LR8514 logger does not require calibration.
Countries and regions where wireless operation is currently supported: Japan, U.S.A., Canada, EU, Norway, Switzerland, Turkey, Russia, Singapore, Thailand, Vietnam, and India. Bluetooth® is a trademark of Bluetooth SIG, Inc. and licensed for use by HIOKI E.E. CORPORATION.
Manufacturer Specs
| Supported instrument | [Used as standalone product (Data collected manually) ] Windows PC or Windows tablet (CD-R with software included) Android smartphone or Android tablet terminal (Software can be downloaded free of charge from Google Play.) *Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m) [Used as logging module (Real-time measurement) ] Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m |
| Number of channels | 2 ch for temperature + 2 ch for humidity (2 sensors can be attached) |
| Measurement items | Temperature, Humidity |
| Measurable Range | [Temperature] -40 ˚C to 80 ˚C, Range 100˚C f.s., Max. resolution 0.1˚C [Humidity] 0%rh to 100%rh, Range 100% rh f.s., Max. resolution 0.1%rh |
| Measurement accuracy (using Z2010/Z2011) | [Temperature basic accuracy] ±0.5 ˚C(10 ˚C to 60 ˚C) *If outside above temperature range: Add 0.015 ˚C/ ˚C (-40 ˚C to 10 ˚C) or 0.02˚ C/ ˚C (60 ˚C to 80 ˚C) [Humidity basic accuracy] ±3% rh (20 ˚C to 30 ˚C, 20% to 90% rh) |
| Display items | Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value |
| Functions | Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function |
| Recording | [Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.5 to 30 sec, 1 to 60 min, 14 selections |
| Power source | AC ADAPTER Z2003 (AC100 V to 240 V, 50 Hz/60 Hz), AA alkaline batteries (LR6) ×2, External power DC5 V to 13.5 V (can also be supplied from USB bus power, with a conversion cable) |
| Continuous operating time ([Capacity] 500,000 data items for each channel) (23˚C) | 3.5 months (Recording interval of 1 min, Bluetooth® OFF) 20 days (Recording interval of 1 sec, Bluetooth® ON) 5 days (Recording interval of 0.5 sec, during real-time measurement with the LR8410) |
| Dimensions, Weight | 85W×61H×31D mm (3.35W×2.40H×1.22D in),95 g (Not including the battery) |
| Accessories | CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector) , Measurement Guide ×1, Caution for Using Radio Waves × 1, AA alkaline batteries (LR6) ×2 |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | 80 C |
| Min Temperature | -40 C (-40 F) |
| # Inputs/Channels | 2 |
| SAMPLE RATE/Intervals | 0.5 to 30 sec, 1 to 60 min, 14 selections |
| Accuracy | [Temperature basic accuracy] ±0.5 ˚C(10 ˚C to 60 ˚C) [Humidity basic accuracy] ±3% rh (20 ˚C to 30 ˚C, 20% to 90% rh) |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Unique Features | High-precision, ±3% RH humidity sensor Convenient for simultaneously recording and comparing temperature and humidity readings at 2 locations Compact, two-channel model fits where other devices don’t |
| Warranty | 1 YEARS |
| Warranty Details | HIOKI’s product warranty extends for a period of one year from the date of purchase. (If the date of purchase is unknown, the warranty extends for a period of one year from the date of manufacture.) During this period, HIOKI will repair or replace free of charge any product suffering from a malfunction deemed to be the manufacturer’s responsibility. Products labeled as having a three-year warranty are covered for a period of three years from the date of purchase (or if the date of purchase is unknown, a period of three years from the date of manufacture). |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| Product Weight | 95 GRAMS (0.2094 LBS) |
| Product Height | 2.4 IN |
| Product Length | 8.60 IN |
| Product Width | 3.35 IN |
| Data Logging | Yes |
| Calibration Included | Factory Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Japan |
| Shipping Height | 2.50 IN |
| Shipping Length | 8.60 IN |
| Shipping Width | 6.25 IN |
| Other Information | Depth:: 1.22″ |
