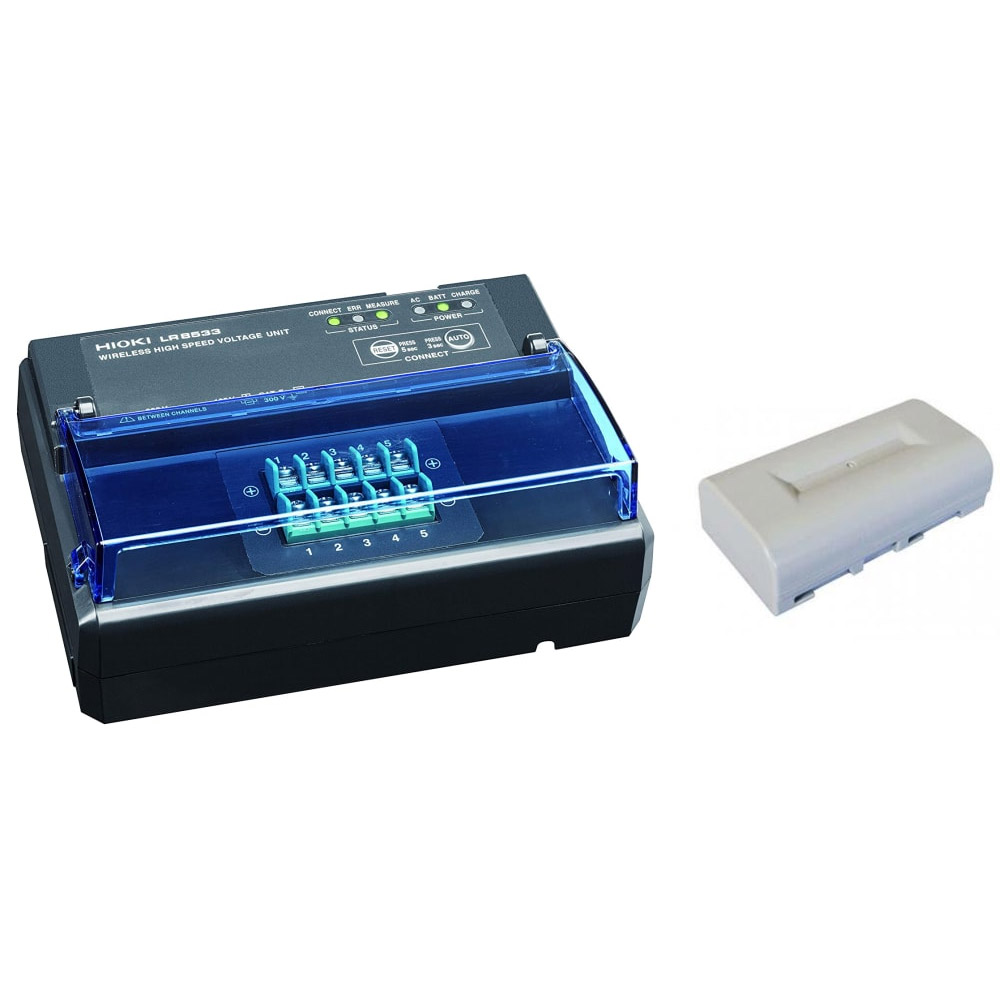

Hioki LR8533 – 5 Channels Wireless High Speed Voltage Unit with Battery Pack
- 5 channels
- For voltage measurement
- Wireless connection between LR8450-01 and measurement module, 30 m range
- Sampling rate of up to 1 ms
The Hioki LR8533 Kit provides 5 channels with a sampling rate of 1 ms. It used for measuring various sensor outputs at several tens of Hz, such as pressure and vibration. The wireless high speed voltage unit LR8533 can operate for about 9 hours on battery power. If the unit is charged at night, it can operate on the battery pack alone during the day.
The LR8533 cannot perform measurement by itself. Memory HiLogger LR8450-01 is required separately. By attaching the Z3230 Wireless LAN Adapter (accessory), LR8532 can be wirelessly connected to the Memory HiLogger LR8450-01.
Manufacturer Specs
| Model LR8533 Kit Specifications | |
| Connectable instrument | Memory HiLogger LR8450-01 (Wireless LAN model) |
| Control communications method | Connect wirelessly via Wireless LAN Adapter Z3230 (included) Wireless LAN (IEEE 802.11b/g/n) Communication range: 30 m (line of sight) Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES Available number of channels: 1 to 11 |
| Communications buffer memory | 4 M word (volatile memory) Saves data in the event of a communications error. Data is resent when communications are restored. |
| Operating temperature and humidity | -20°C to 55°C, 80% RH (no condensation) (Charging temperature range: 5°C to 35°C) |
| Storage temperature and humidity | -20°C to 60°C, 80% RH (no condensation) |
| Vibration resistance | JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent |
| LED display | Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status |
| Automatic connection function | Available |
| Accessories | Wireless LAN Adapter Z3230 × 1, Instruction manual × 1, AC Adapter Z1008 × 1, mounting plate × 1, M3×4 screw × 2 (for use with mounting plate) |
| Number of input channels | 5 ch (voltage only) |
| Input terminals | M3 screw-type terminal block (2 terminals per channel), outfitted with terminal block cover |
| Measurement target | Voltage |
| Input type | Scanning by semiconductor relays All channels isolated |
Tech Specs
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
|---|---|
| Power Source | AC Line, Battery |
| Battery Life | 9 HR |
| # Inputs/Channels | 5 |
| SAMPLE RATE/Intervals | 1 ms |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| Safety Approval | CE |
| Shipping Weight | 3 LBS |
| Power Supply Voltage | Battery Powered |
