Hioki MR8880-20 PRO KIT – Memory HiCorder Pro Kit

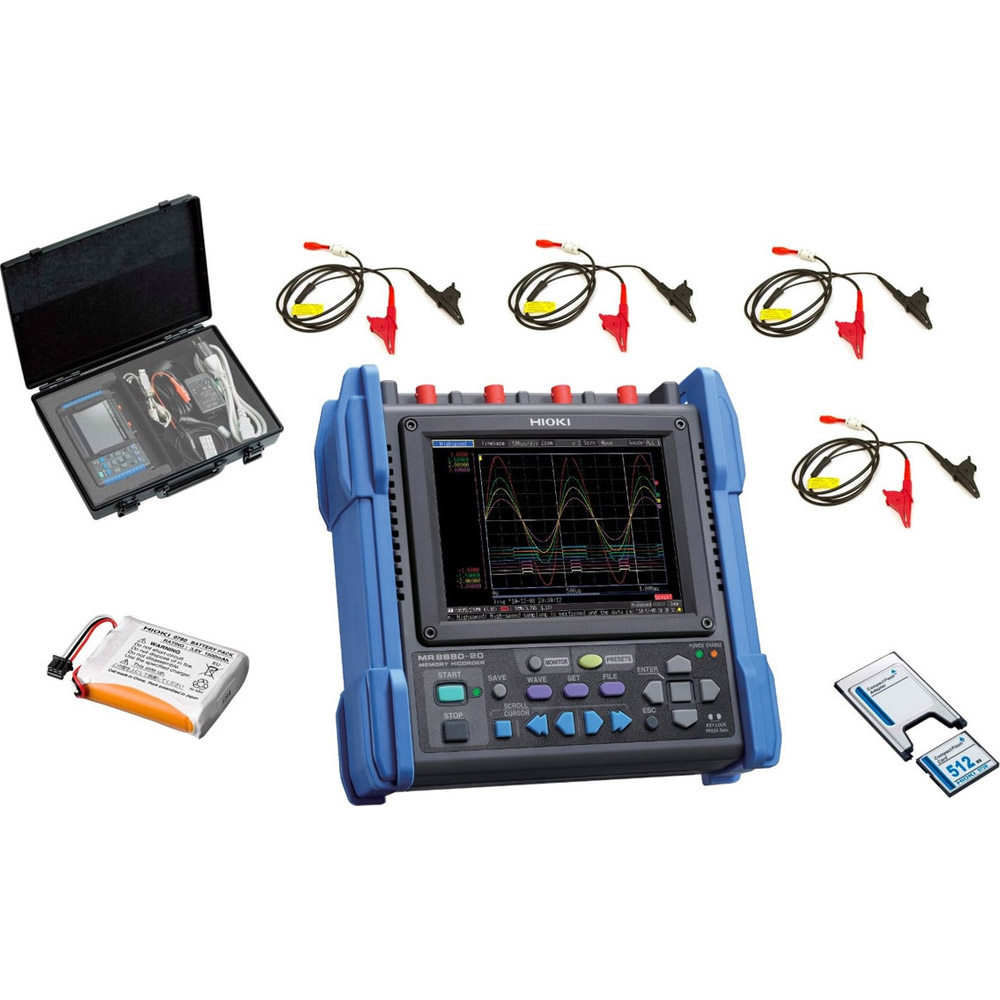

- Kit includes Memory HiCorder (MR8880-20), carrying case (C1003), PC card (9729), battery pack (Z1000), alligator test leads (4 x) (L9197)
- CAT III 600V isolation performance; directly measure a 480V power line
- 4 completely isolated channels let you simultaneously record data on a 3-phase power line plus have one extra channel
- Tough against harsh environments; -10°C to 50°C operating temperature range
- Built to withstand mechanical shocks and vibrations (ships standard with side protectors)
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple quick-changing phenomena due to complete isolation between channels and from each channel to the ground. The MR8880 is a data acquisition (DAQ) recorder built in with 4 analog channels that can accept direct input of 600V, enabling measurements of 3-phase systems.
Manufacturer Specs
| Hioki MR8880-20 PRO KIT Specifications | |
| Number of channels | 4 analog channels + 8 logic channels (standard) Note: Isolated analog channels, isolated input and frame, logic has common GND |
| Measurement ranges (10 div full-scale) | 4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range RMS value mode: 30 Hz to 10 kHz, Crest factor: 2 |
| Max. rated voltage | Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV |
| Frequency characteristics | DC to 100 kHz (±3dB) |
| Time axis (High-speed function) | 100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range |
| Recording intervals (Real-time function) | 100 µs to 1 minute, 19 selections (simultaneous sampling in all channels) |
| Measurement functions | High-speed function (high speed recording) Real-time function (actual time recording) |
| Memory capacity | 14-bits × 1M-words/ch (1 word = 2 bytes) |
| Removable storage | CF card slot ×1 (Up to 2 GB), USB 2.0 memory ×1 |
| Printing | [Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec Note: Printing is not supported when using alkaline batteries |
| Display | 5.7-inch VGA-TFT color LCD (640 × 480 dots) |
| Displayable languages | English, Japanese, Chinese |
| Communication interfaces | USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control |
| Power supply | AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 45 VA (include AC adapter, when Real-time recording), 107 VA (include AC adapter, when Real-time recording and printing) Battery pack Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (with back-light ON) LR6 (AA) alkaline batteries ×8, Continuous use 40 minutes, (with back-light ON, cannot be used with the Printer unit) |
| DC power supply | 10 to 28 V DC (cable available by special order) |
| Dimensions and mass | 205 mm (8.07 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 1.66 kg (58.6 oz) (with the Battery pack installed) When printer is combined – with main unit: 303 mm (11.93 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 2.16 kg (76.2 oz) (with the Battery pack installed) |
| Accessories | Instruction manual ×1, AC adapter Z1002 ×1, Alkaline battery box ×1, Strap ×1, USB cable ×1, Application disk (Wave viewer Wv, Communication commands table) ×1 |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Shipping Weight | 5 LBS |
| Country of Origin | Japan |
