Descripción

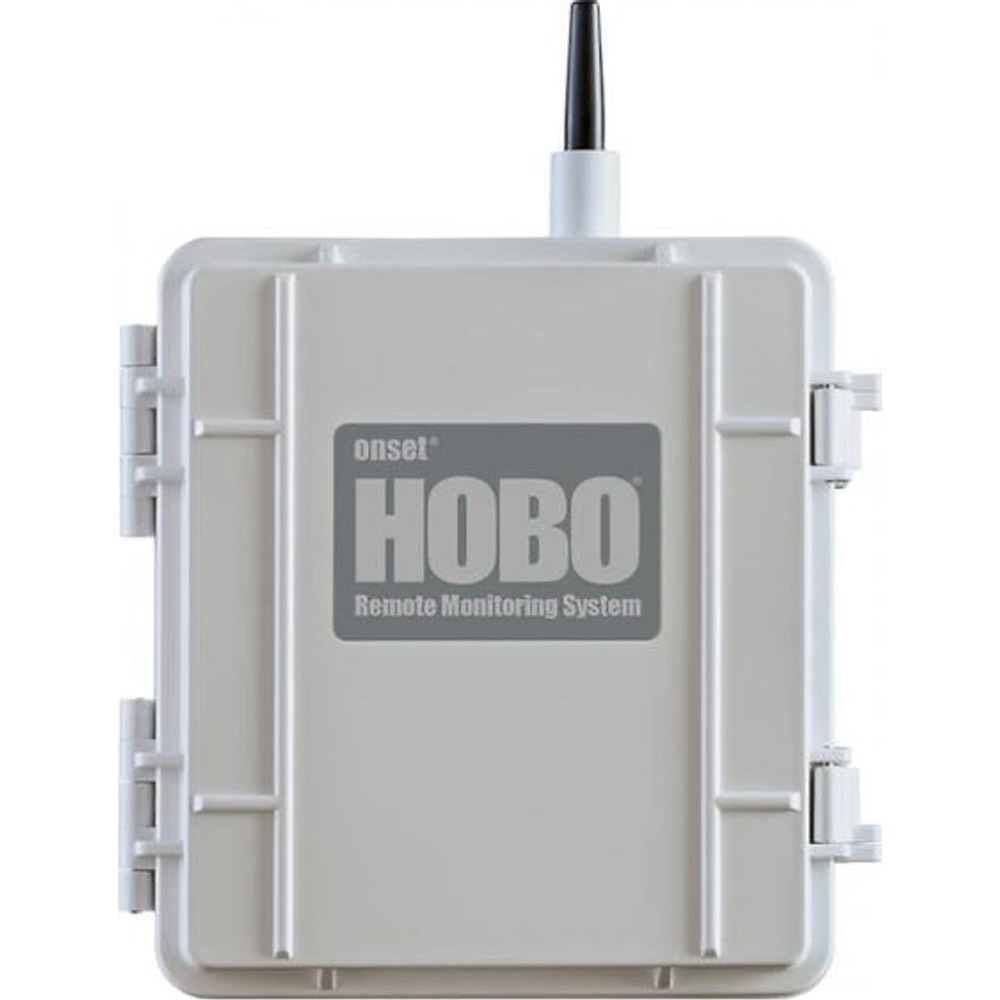

HOBO by Onset RX3003-00-01 RX3000 3G Remote Monitoring Station
- RX3003-00-01 RX3000 3G Remote Monitoring Station
- Cloud-based data access
- Plug-and-play operation
- Flexible support for a broad range of sensors
HOBO RX3000 Remote Monitoring System
Real-time access to data from any web browser. The HOBO RX3000 is a research-grade data logging station that combines greater measurement flexibility and an on-board LCD display in a rugged, easy-to-deploy package.
Supported Measurements:
Indoor Environmental: Temperature, Relative Humidity, Dew Point, C02, Air Velocity, VOC
Energy/Power: 4-20mA, AC Current, AC Voltage, Amp Hour, Amps, Compressed Air Flow, DC Current, DC Voltage, Differential, Pressure, Gauge Pressure, kW, kWh, Power Factor, Pulse Input, Volt-Amp Reactive, Volt-Amp Reactive Hour, Volt-Amps, Volts, Water Flow, Watt Hours, Watts
Outdoor Environmental: Temperature, Relative Humidity, Dew Point, Solar Radiation, PAR, Rainfall, Wind Speed, Wind Direction, Soil Moisture, Barometric Pressure, Leaf Wetness, 4-20mA, Voltage Input, Pulse Input.
Minimum System Requirements:
Software
Data plan
Power source
Sensor
Manufacturer Specs
| Model | RX3001-00-01 (ETH) | RX3002-00-01 (WiFi) | RX3003-00-01 (3G) |
| Smart Sensor Connectors | 10 (up to 15 data channels; some sensors use more than one data channel) | ||
| Maximum Number of Sensors | 18 (when 2 Analog Modules are configured in the station) | ||
| Smart Sensor Cable Length | 100 m (328 ft) maximum | ||
| Module Slots | 2 (for optional Analog or Relay module; see manual for detailed module specification) | ||
| Fastest Logging Rate | 1 second | 1 second | 1 minute |
| Memory | 32 MB, 2 million measurements | ||
| Alarm notification latency | Logging interval plus 2-4 minutes, typical | ||
| Environmental Rating | Weatherproof enclosure, NEMA 4X | ||
| Operating Range | -40° to 60°C (-40° to 140°F) | ||
| Power | Onset solar panel, AC charger or user-provided external power supply is required | ||
| Battery Life | Typical 3-5 years; 4 Volt, 10 AHr, rechargeable sealed lead-acid | ||
| Size | 18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.) | ||
| Weight | 2.2 kg (4.85 lb) | ||
| Communications | Ethernet RJ45/100BaseT |
WiFi IEEE 802.11 b/g/n |
Cellular GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz, UMTS/HSPA+: Five band 800/850/900/1900/2100 MHz |
| CE Compliant | Yes | ||
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Country of Origin | United States |
