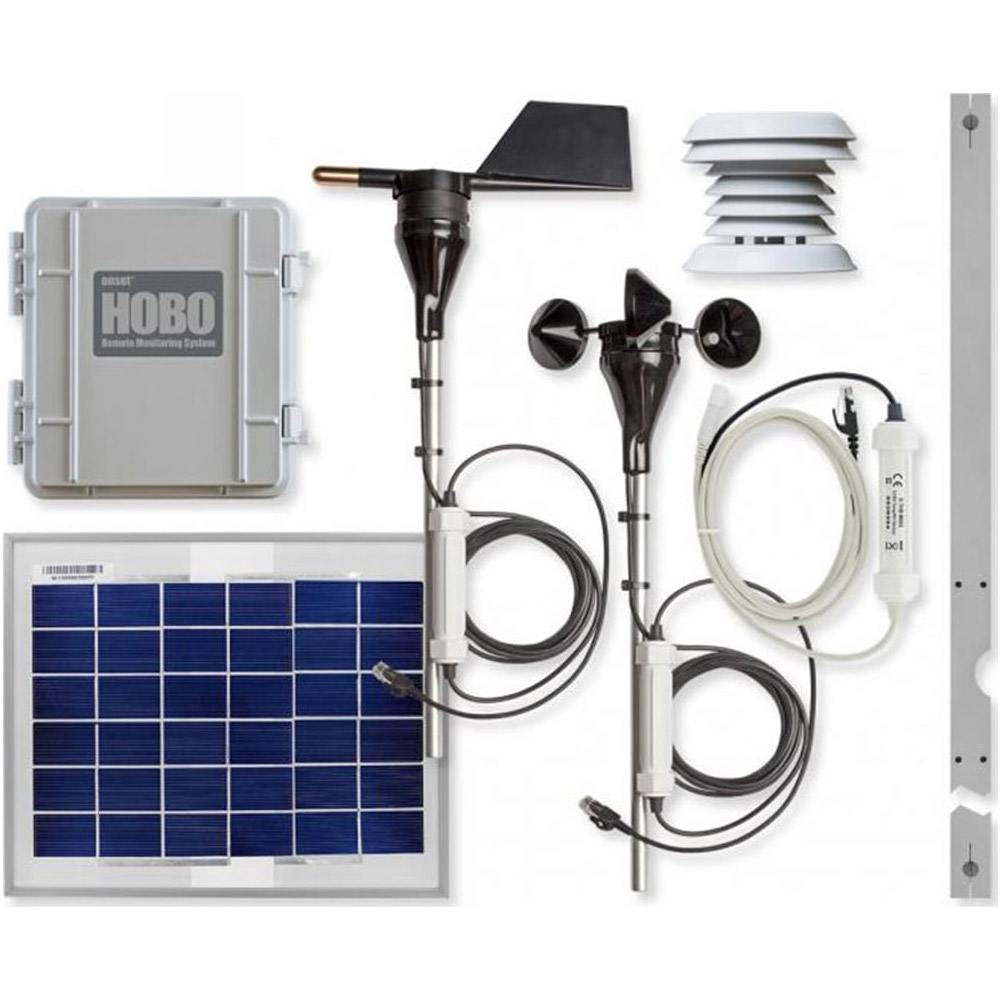

HOBO by Onset RX3004-SYS-KIT-813 – Remote Weather Station Starter Kit
- Provides basic components needed for any weather monitoring application
- Cloud-based data access
- Plug-and-play operation
- Rugged double-weatherproof enclosure
- Provides alarm notification via text, email
The HOBO RX3000 Weather Station Starter Kit provides instant access to site-specific air temperature, relative humidity, and wind speed/direction data anywhere, anytime on your desktop or mobile device.
The RX3000 accepts up to 10 plug-and-play Smart Sensors. Just plug in your sensor and it’s automatically recognized – no programming, wiring, or calibration necessary.
This weather station kit includes a one-year cellular data plan plus cloud-based data access through HOBOlink – for 24/7 access to your data and the ability to verify RX3000 system status, set up and manage alarm notifications, and schedule automated delivery of data.
Manufacturer Specs
| General Specifications | |
| HOBO RX3000 | |
| Operating Range | -40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V DC |
| Smart Sensor Connectors | 10 |
| Smart Sensor Network Cable Length | 100 m (328 ft) maximum |
| Smart Sensor Data Channels | Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details) |
| Module Slots | 2 |
| Logging Rate | 1 second (RX3001 and RX3002) or 1 minute (RX3003) to 18 hours |
| Time Accuracy | ±8 seconds per month in 0° to 40°C (32°F to 104°F) range; ±30 seconds per month in -40° to 60°C (-40° to 140°F) range |
| Battery Type/Power Source | 4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required using one of these options: AC power adapter (AC-U30), solar panel (SOLAR-xW), or external power source 5 V DC to 17 V DC with external DC power cable (CABLE-RX-PWR) |
| Rechargeable Battery Service Life | Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F); operation outside this range will reduce the battery service life |
| Memory | 32 MB, 2 million measurements, continuous logging |
| Alarm Notification Latency | Logging interval plus 2–4 minutes, typical |
| Enclosure Access | Hinged door secured by two latches with eyelets for use with user-supplied padlocks |
| LCD | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Materials | Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets: Silicone rubber; Cable channel: EPDM rubber; Cable opening cover: Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc dichromate finish |
| Size | 18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.); see diagrams on next page |
| Weight | 2.2 kg (4.85 lb) |
| Mounting | 3.8 cm (1.5 inch) mast or wall mount |
| Environmental Rating | Weatherproof enclosure, NEMA 4X (requires proper installation of cable channel system) |
| CE | The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) |
| FCC | Approved for use in the USA and Canada, see last page; contains FCC ID R68XPICOW, IC ID 3867A-XPICOW (RX3002) and FCC ID QIPEHS6, IC ID 7830A-EHS6 (RX3003) |
| Wireless Radio | GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz, UMTS/HSPA+: Five band 800/850/900/1900/2100 MHz |
| Antenna | Penta band |
| Ethernet (RX3001) | |
| Connector | One RJ45/100BaseT |
| 5 Watt Solar Panel Power | |
| Power | 5 Watts |
| Operating Temperature Range | -40° to 85°C (-40°F to 185°F) |
| Materials | Polycrystalline silicon solar cell; aluminum frame and mounts; zinc-coated steel bolts, nuts, washers, and U-bolts |
| Dimensions | 222 x 270 x 18 mm (8.74 x 10.63 x 0.71 in.) |
| Weight | 0.75 kg (1.65 lb) |
| Cable Length | 2 m (6 ft) |
| Environmental Rating | Weatherproof when mounted properly, not waterproof |
| CE | The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). |
| HOBO by Onset S-THB-M002 | |
| Measurement Range | |
| Temp | -40°C to 75°C (-40°F to 167°F) |
| RH | 0-100% RH at -40° to 75°C (-40° to 167°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1% |
| Accuracy | |
| Temp | +/- 0.21°C from 0° to 50°C (0.38°F from 32° to 122°F) |
| RH | +/- 2.5% from 10% to 90% RH (typical), to a maximum of +/- 3.5% |
| Resolution | |
| Temp | 0.02°C at 25°C (0.04°F at 77°F) |
| RH | 0.1% RH at 25°C (77°F) |
| Bits Per Sample | |
| Temp | 12 |
| RH | 10 |
| Drift | |
| Temp | < 0.1°C (0.18°F) per year |
| RH | < 1% per year typical; hysteresis 1% |
| Response Time | |
| Temp | 5 minutes in air moving 1 m/sec |
| RH | 5 minutes in air moving 1 m/sec with protective cap |
| Operating Temperature Range | -40°C to 75°C (-40°F to 167°F) |
| Environmental Rating Weatherproof | 0 to 100% RH intermittent condensing environments. For best results, the Temp/RH Smart Sensor should be mounted inside a protective enclosure, such as a solar radiation shield |
| Housing PVC cable jacket with ASA styrene polymer RH sensor cap; modified hydrophobic polyethersulfone membrane | |
| Sensor Dimensions | 10 x 35 mm (0.39 x 1.39 in) |
| Weight | 110 g (3.88 oz) |
| Number of Data Channels | 2 |
| Measurement Averaging Option | No |
| Cable Lengths Available | 2.5m (8.2 ft) |
| Length of Smart Sensor Network Cable | 0.5 m (19.6 ft) |
Tech Specs
Environmental Testers / Physical Property/Weather Measurement Template |
|
|---|---|
| Measurement Types (Weather Measurement) | Barometric Pressure, Rainfall, Temperature, Wind Speed |
| Wind Speed | MPH |
Test Equipment General Attributes |
|
| Shipping Weight | 12.00 LBS |
| Country of Origin | United States |
