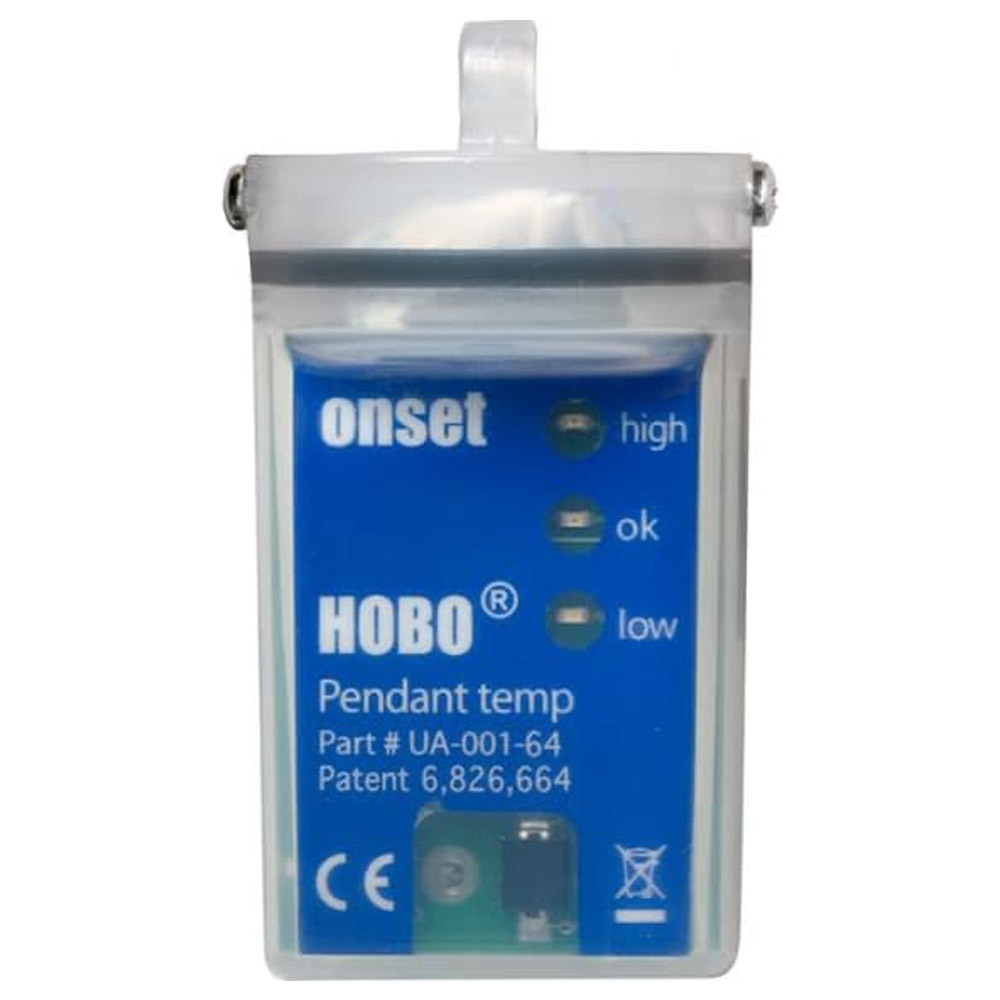

A miniature, waterproof one-channel temperature data logger, this model is value-priced for short-term shipping applications or long-term deployment. Data logger alarm LEDs flash if temperatures have exceeded user-set levels and delay options, and provide visible verification that temperatures have been within the desired range throughout deployment. This 64K model stores approximately 52K of 10-bit temperature readings. For accurate temperature measurement in sunlight a solar radiation shield is required (RS1 Solar Radiation Shield, assembly required; M-RSA pre-assembled Solar Radiation Shield).
Environment:
The UA-001-64 Data Logger is for use in Indoor , Outdoor and Underwater environments.
Measurements:
The UA-001-64 Data Logger supports the following measurements:Temperature, Water Temperature.
Manufacturer Specs
| Measurement range | -20° to 70°C (-4° to 158°F) |
| Plot A Alarms | High and low alarms can be configured for total amount of contiguous or non-contiguous time outside of user-defined limits between -20° and 70°C (-4° to 158°F) |
| Accuracy | ± 0.53°C from 0° to 50°C (± 0.95°F from 32° to 122°F), see Plot A |
| Resolution | Temperature: 0.14°C at 25°C (0.25°F at 77°F), see Plot A |
| Drift | Less than 0.1°C/year (0.2°F/year) |
| Response time | |
| Airflow of 2 m/s (4.4 mph) | 10 minutes, typical to 90% |
| Water | 5 minutes, typical to 90% |
| Time accuracy | ± 1 minute per month at 25°C (77°F), see Plot B |
| Plot BOperating range | |
| In water/ice | -20° to 50°C (-4° to 122°F) |
| In air | -20° to 70°C (-4° to 158°F) |
| Water depth rating | 30 m from -20° to 20°C (100 ft from -4° to 68°F), see Plot C |
| NIST traceable certification | Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F) |
| Battery life | 1 year typical use |
| Memory | |
| UA-001-08 | 8K bytes (approximately 6.5K sample and event readings) |
| UA-001-64 | 64K bytes (approximately 52K sample and event readings) |
| Plot CMaterials | Polypropylene case; stainless steel screws; Buna-N o-ring |
| Weight | 18 g (0.6 oz) |
| Dimensions | 5.8 x 3.3 x 2.3 (centimeters) and 2.3 x 1.3 x 0.9 (inches) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 70 C |
| Min Temperature | -20 C (-4 F) |
| Power Source | Battery |
| Battery Life | 1 YEARS (8760 HR) |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 18 GRAMS (0.040 LBS) |
| Data Logging | Yes |
| HTS/Schedule B Number | 9031.80.8080 |
| ECCN Number | EAR99 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Other Information | Dimensions: : 5.8 x 3.3 x 2.3 cm |
