Descripción

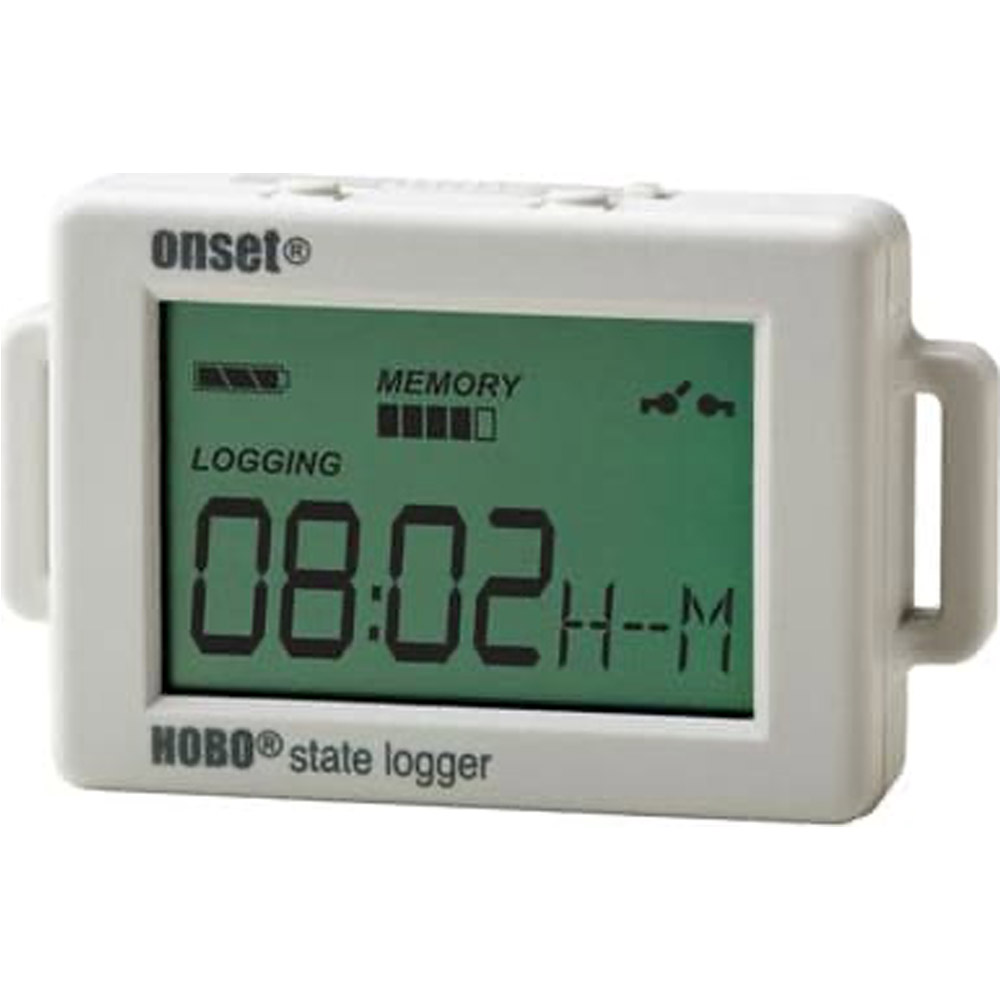

The HOBO State/Pulse/Event/Runtime data logger records state changes, electronic pulses and mechanical or electrical contact closures from external sensing devices. This logger is ideal for monitoring energy consumption, mechanical equipment operation, and water and gas flow. The HOBO UX90-001M State Logger is available in an expanded 512KB memory version capable of over 346,795 measurements.
IMPORTANT: This HOBO data logger requires HOBOware software and a communications device.
Manufacturer Specs
| Internal Sensor | |
| Maximum State, Event, Runtime Frequency | 1 Hz |
| Preferred Switch State | No magnet present (normally open) |
| External Input | |
| External Contact Input | Electronic solid state switch closure or logic driven voltage output |
| Range | 0 to 3 V DC (USB powered), 0 to 2.5 V DC (battery powered) |
| Maximum Pulse Frequency | 50 Hz |
| Maximum State, Event, Runtime Frequency | 1 Hz |
| Pulse, Event Lockout Time | 0 to 1 second in 100 ms steps |
| Solid State Switch Closure | Input Low: < 10 KΩ; Input High: > 500 KΩ |
| Internal Weak Pull-Up | 100 KΩ |
| Input Impedance | Solid state switch closure: 100 KΩ pull up |
| Logger | |
| Resolution | Pulse: 1 pulse, Runtime: 1 second, State and Event: 1 State or Event |
| Logging Rate | 1 second to 18 hours, 12 minutes, 15 seconds |
| Time Accuracy | ±1 minute per month at 25°C (77°F) |
| Battery Life | 1 year, typical with logging intervals greater than 1 minute and normally open contacts |
| Memory | 512 KB (346,795 measurements, maximum) |
| Download Type | USB 2.0 interface |
| Download Time | 10 seconds for 128 KB; 30 seconds for 512 KB |
| Logger Operating Range | |
| Logging | -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing) |
| Launch/Readout | 0° to 50°C (32° to 122°F) per USB specification |
| LCD | LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size | 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.) |
| Weight | 23 g (0.81 oz) |
| Environmental Rating | IP50 |
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Unique Features | One logger with 4 recording modes Internal reed switch can be used to determine when a door or window is open or closed 512KB memory |
| Safety Approval | CE |
| Interfaces I/O | USB |
| IP Rating | IP50 |
| Product Weight | 23 GRAMS (0.051 LBS) |
| Product Height | 1.44 IN |
| Product Length | 2.34 IN |
| Product Width | 0.6 IN |
| Data Logging | Yes |
| Battery Type | CR2032 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
