FLIR VS70-3 Video Borescopes Articulation Combo

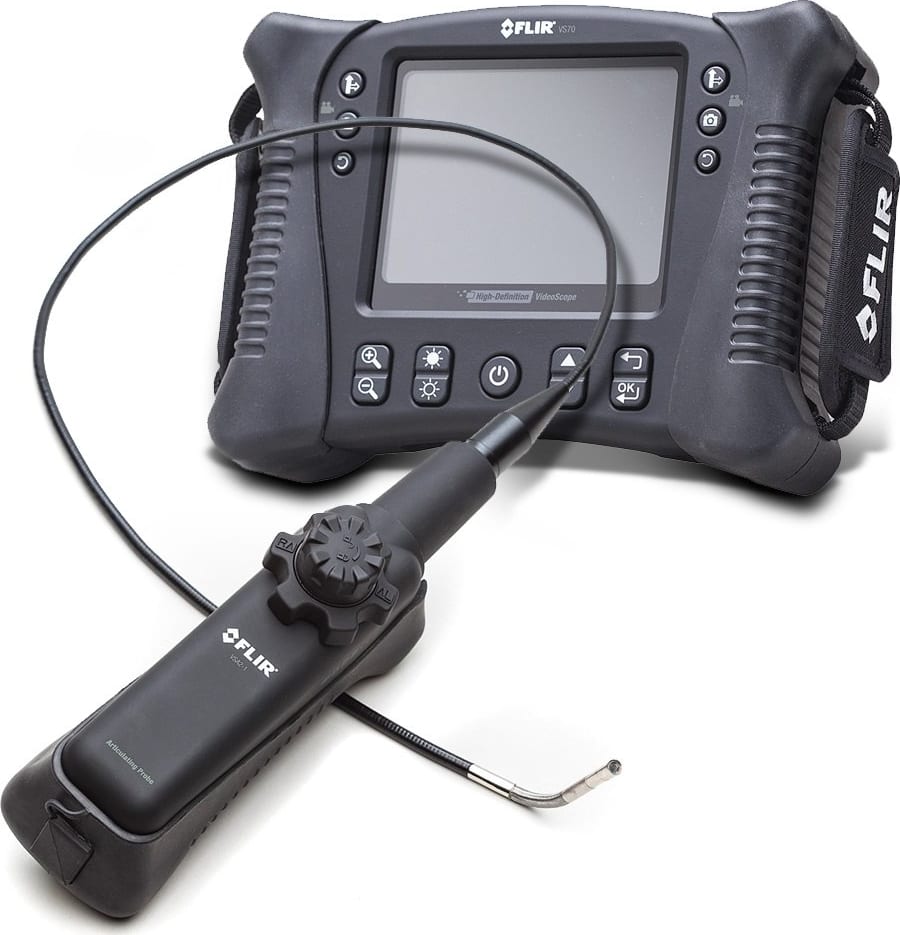

FLIR VS70-3 Articulation Combo, Long Focus (VS70 + VSA2-1)
The FLIR VS70 is a rugged, waterproof and shock-resistant videoscope that features intuitive handset controls that enable users to maneuver the narrow camera probe into tight spaces to deliver vivid and sharp video and images to a large 5.7” color LCD display. Advanced inspection solutions, expansion cameras, and add-on accessories enable users to expand their FLIR VS70 to address many different inspection needs.
Let the VS70 take you where few have gone before.
Bring hidden problems into clear view by accessing extremely confined areas. The new FLIR VS70 is a rugged, waterproof videoscope featuring user-friendly, ambidextrous handset controls that help you easily maneuver the narrow camera probe into extremely tight spaces to uncover hidden problems.
View clear video and images on the durable 5.7” (145mm) color LCD display that is easy to see, even in bright outdoor areas. All cameras are equipped with adjustable LED lights to illuminate dark inspection targets. On-screen menus include support for 26 languages.
World-class features that meet your real-world needs.
The FLIR VS70’s rubber-reinforced case is waterproof and dustproof (IP67-rated) – as well as oil and chemical resistant. Drop tested from a height of 2 meters (6.5 feet), the VS70 is built for rough use in harsh environments.
Designed for on-the-job endurance, the VS70 has a rechargeable lithium battery that lasts 6 to 8 hours. Flexible USB recharging options and the included vehicle charger means your VS70 will work all day long.
FLIR VS70 Generator Inspection
FLIR VS70 Inspecting cylinder in aircraft motor with VSA2-1M
Different cameras :
- Short or long focus solution
- 2/1 Way articulation or not
- Diameter
Different Kits
| Kit | Components | Description |
| VS70-1 | VS70 + VSC8.0-1R + accessories + case | General purpose (wired) long focus combo kit includes the VS70, base kit and 8mm long focus camera on a 1-meter semi-rigid cable. This kit enables users to perform basic inspections and add options as needs grow. |
| VS70-1w | VS70 + VST + VSC8.0-1R + accessories + case | Wireless general purpose combo kit includes the VS70, wireless handset (VST), and a non-dedicated 8mm long focus camera on a 1-meter semi-rigid cable. The wireless handset makes it easy to manipulate the camera probe while keeping the display in clear view. |
| VS70-2 | VS70 + VSC5.8-1RM + accessories + case | Small opening short focus combo kit includes the VS70, base kit, and a 5.8mm short focus camera on a 1-meter semirigid cable. Allows close-up inspections. |
| VS70-3 | VS70 + VSA2-1 + accessories + case | Wired articulation combo kit includes the VS70 and wired handset with dedicated 6mm long focus camera with 2-way articulation on a 1-meter semi-rigid cable. Long focus offers farther viewing distances and articulation provides greater internal camera control. |
| VS70-3w | VS70 + VSA2-1w + accessories + case | Wireless articulation combo kit includes the VS70 and wireless handset with a dedicated 6mm long focus camera and 2-way articulation on a 1-meter semi-rigid cable. Offers farther viewing and greater internal camera control. |
| VS70-Kit | VS70 + VSA2-1 + VSC5.8-1RM + accessories + case |
Starter bundle includes the VS70 and a wired handset with a dedicated 6mm long locus camera with 2-way articulation on a 1-meter semi-rigid cable, and an 8mm short focus camera on a 1 meter semi-rigid cable. Offers long-distance views and close-up inspections. |
| VS70-Kit-w | VS70 + VSA2-1-w + VSC5.8-1RM + accessories + case |
Wireless bundle includes the VS70 and a wired handset with a dedicated 6mm long focus, 2-way articulation camera on a 1-meter semi-rigid cable, and an 8mm short focus camera on a 1-meter cable. Allows long-distance views and close-up inspections. |
FLIR VS70 Customizable Camera Options Camera Probes and Camera Lenses
A wide variety of camera probe diameters (from 3.9mm to 28mm) enable users to gain access into otherwise inaccessible areas. Probe sizes are selected based on the width of access points.
FLIR VS70 Customizable Camera Options
Long Focus (65mm/2.36” to 8) Lenses enable you to see further within confined areas. They are ideal for accessing larger areas where the inspection targets are viewed at longer distances from the camera tip.
Short Focus (20 to 65mm / 0.59” to 2.36”) Lenses let you perform inspections in areas where close-up viewing of detailed features is essential, such as when inspecting turbine blades or boiler tubes.
Mix-and-Match Options
Customized Solutions
The FLIR VS70 is available with a wide range of probes and other accessories that enable users to create custom-configured solutions that meet their specific needs. One such accessory is the Videoscope Transmitter (VST), a general purpose wireless transmitter designed to work with all cameras.
Choose the right optical camera tip available with the VS70—long focus or macro focus—that’s right for your job requirements.
Selection Guide
Answer the below questions to begin the selection process. Match up the colored circles in the Selection Guide to the VS70 options that best meet your needs.
Smallest opening sizes?
• Smallest diameter cameras for openings less than 5mm
• Smaller diameter cameras for openings less than 10mm (3/8”) in size
• Larger diameter cameras for openings more than 10mm (3/8”) in size
Distance to inspection targets?
• Short Focus Cameras to check for fine details from 20 to 60mm away
• Long Focus Cameras to see distances from 65mm to ∞
Typical target distances?
• 1-Meter Cables for shorter distances
• 2-Meter Cables for distances greater than 1 meter
• 20- or 30-Meter Cables for longer distances
Need More Viewing Options?
• 2-Way Articulation Camera
• Dual Camera (180/90°) Camera
• Rigid Probe with Rotating Mirror
Manufacturer Specs
| Mix-and-Match Options | ||||||||||||
| TYPE | PART NUMBER | SOLUTION | DIAMETER (MM) |
LENGTH (M) |
RESOLUTION (PX) |
FIELD OF VIEW (°) |
FOCAL LENGTH (MM) |
WIRELESS | ||||
| ARTICULATING CAMERAS | ||||||||||||
| 2-Way Articulation Wireless Handset with integrated cable and camera |
VSA2-2M-W |
|
6 | 2 | 307,200 | 56 | 20 to 60 | Yes | ||||
| VSA2-2-W |
|
6 | 2 | 307,200 | 56 | 65 to ∞ | Yes | |||||
| VSA2-1M-W |
|
6 | 1 | 307,200 | 56 | 20 to 60 | Yes | |||||
| VSA2-1-W |
|
6 | 1 | 307,200 | 56 | 65 to ∞ | Yes | |||||
| 2-Way Articulation Wired Handset with integrated cable and camera |
VSA2-2 |
|
6 | 2 | 307,200 | 56 | 65 to ∞ | With VST | ||||
| VSA2-2M |
|
6 | 2 | 307,200 | 56 | 20 to 60 | With VST | |||||
| VSA2-1 |
|
6 | 1 | 307,200 | 56 | 65 to ∞ | With VST | |||||
| VSA2-1M |
|
6 | 1 | 307,200 | 56 | 20 to 60 | With VST | |||||
| GENERAL INSPECTIONS | ||||||||||||
| Small Diameter Cameras with cables |
VSC41-2RM |
|
4.1 | 2 | 76,800 | 53 | 20 to 60 | With VST | ||||
| VSC39-1FM |
|
3.9 | 1 | 76,800 | 53 | 20 to 60 | With VST | |||||
| General Purpose Cameras with cables |
VSC58-2R |
|
5.8 | 2 | 307,200 | 56 | 65 to ∞ | With VST | ||||
| VSC58-2RM |
|
5.8 | 2 | 307,200 | 56 | 20 to 60 | With VST | |||||
| VSC58-1R |
|
5.8 | 1 | 307,200 | 56 | 65 to ∞ | With VST | |||||
| VSC58-1RM |
|
5.8 | 1 | 307,200 | 56 | 20 to 60 | With VST | |||||
| VSC80-2R |
|
8 | 2 | 307,200 | 56 | 65 to ∞ | With VST | |||||
| VSC80-1R |
|
8 | 1 | 307,200 | 56 | 65 to ∞ | With VST | |||||
| SPECIALTY INSPECTIONS | ||||||||||||
| Dual Camera with cable | VSC2-58-1FM |
|
5.8 | 1 | 307,200 | 56 | 20 to 60 | With VST | ||||
| Rigid Probe Cameras with handle | VSC65-17S |
|
6.5 | .43 | 307,200 | 56 | 20 to 60 | With VST | ||||
| VSC65-12S |
|
6.5 | .30 | 307,200 | 56 | 20 to 60 | With VST | |||||
| PLUMBING INSPECTIONS | ||||||||||||
| Small Opening Camera on Long-Reach Cable |
VSC58-30M |
|
5.8 | 30 | 76,800 | 56 | 20 to 60 | With VST | ||||
| VSC58-20M |
|
5.8 | 20 | 76,800 | 56 | 20 to 60 | With VST | |||||
| Detachable Cameras for use with Plumbing Spool Cables |
VSC25 |
|
25 | — | 307,200 | 72 | 60 to 600 | — | ||||
| VSC28 |
|
28 | — | 307,200 | 110 | 60 to 600 | — | |||||
| Plumbing Spool Cables for use with Detachable Cameras |
VSS-30 | • | — | 30 | — | — | — | With VST | ||||
| VSS-20 | • | — | 20 | — | — | — | With VST | |||||
| VS70 Videoscope Specifications | |
| Technical Summary | |
| Camera head diameter : | From 3.9 to 28 mm |
| Camera head rotation : | Yes (multi-axis) |
| Additional Characteristics : | |
| LCD Screen : | 640 x 480 pixels; 145 mm (5.7″); viewable 135 mm (5.3″) |
| SD Memory | 4GB standard; 32 GB max. |
| Image : | JPEG |
| Video : | AVI |
| Relative Humidity | Operate between -10 and 60 °C at 80% of relative humidity maximum |
| Articulation : | 240±20° |
| Camera length range : | 0.3-30 m |
| Camera Focal Length Options | Long View or Short View Macro |
| Camera Diameter Range | 3.9 mm to 28 mm |
| Video / Image Transfer | SD Card or USB |
| Frame Rate | 30 fps (NTSC & PAL) |
| Battery Life | 6 to 8 hrs (integrated) |
| Dimension (HxWxD) (mm) : | 241mm×178mm×70mm (9.5»×7»×2.75») |
| Net Weight (kg) : | 1.57 kg |
| Certifications | CE, FCC |
| Warranty | 2 Year |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 1 M (39.37 IN) |
| Shaft Diameter | 6 MM (0.006 M) |
| Screen Size | 5.7 IN |
| Screen Type | LCD |
| Video Resolution (Boroscopes) | 640 x 480 pixels |
| Image Resolution | 640 x 480 pixels |
| Video Output Format | NTSC, PAL |
| IP Rating | IP67 |
Test Equipment General Attributes |
|
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | SD Card |
| Product Height | 241 MM (9.49 IN) |
| Product Length | 70 MM (2.76 IN) |
| Product Width | 178 MM (7.01 IN) |
| Shipping Weight | 7.5 KILOS (16.53 LBS) |
| Country of Origin | Taiwan |
