Descripción

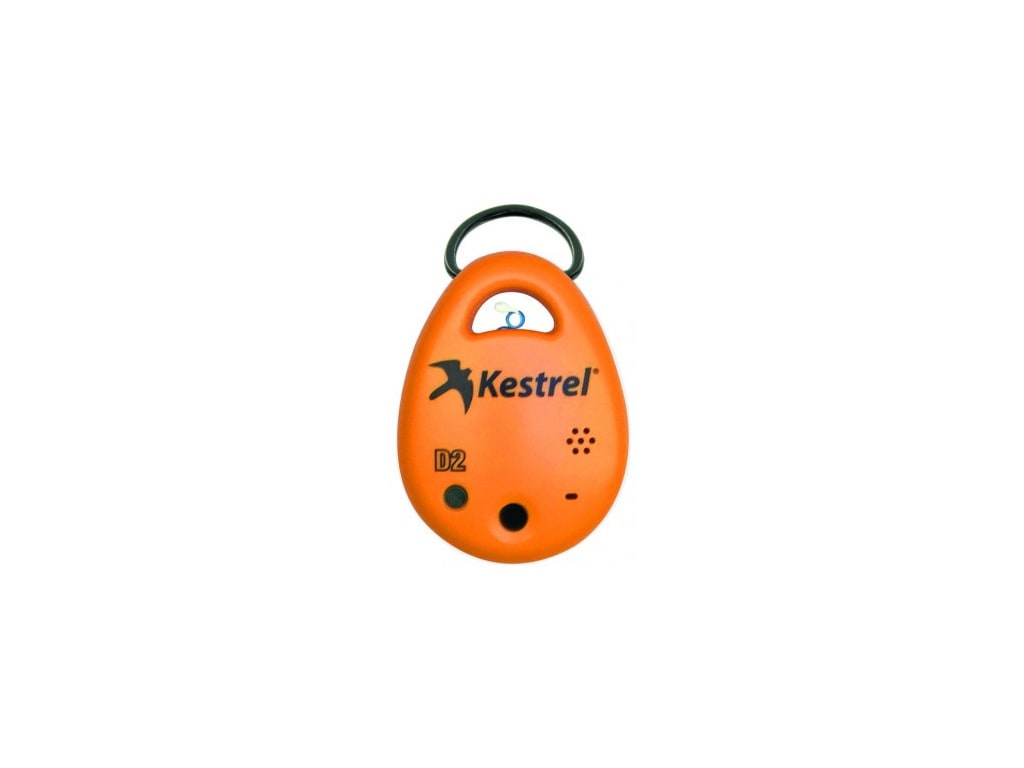

Kestrel 0720PPHS DROP Heat Stress Monitor Power Pack
.jpg)
Kestrel DROP Heat Stress Monitor Power Pack (3x D2HS)
- Temperature response is verified in comparison with an Ametek DTI-050 Digital Temperature Indicator and STS Reference Sensor.
- Relative humidity is verified in comparison with an Edgetech HT120 Humidity Transmitter.
Log it. View it. Share it. Know Your Conditions.
Kestrel DROPs are small, rugged, and accurate environmental data loggers. The Kestrel Drop D1 targets many markets including Transportation, Agriculture, Firefighting, Facilities Management, Medical, Pharmaceutical, Consumer and others.
With made in the USA quality standards and durability from NK, manufactures of Kestrel Meters, the applications are endless. From measuring environmental data during cargo transport to conditions in the field for military training to feeling secure about the climate conditions in any room, shipped box, cargo, trailer, freight container, to as simple as a room in your home or office building, you are able to measure all of these conditions even when you’re physically not there. And if you’re looking for a way to attach your DROP right where you need it.
Applications
Comparison Chart
| General Specifications | |||
| Dew Point | ± 3°F ±1.8°C |
0.1°F/0.1°C | 10% to 90% RH at 77°F/25°C over 10 – 55°C/50 – 131°F |
| Heat Index | ± 5°F ± 2.6°C |
0.1°F/0.1°C | 10% to 90% RH at 77°F/25°C over 10 – 55°C/50 – 131°F |
| Density Altitude | ± 25.0 m ± 82.0 ft |
0.1 m/0.1 ft | 10% to 90% RH over 10 – 55°C/50 – 131°F 700 – 1100 mbar/20.67-32.48 inHg |
| Operating Range | |||
| Temperature | 0°F/-18°C to 140°F/60°C |
||
| Humidity | 0 to 100% RH | ||
| Pressure | 10-1200 hPa | ||
| Technical Specifications | |||
| Data Storage | D1: 13064 data points | D2: 8165 data points | D3: 6220 data points |
| Size & Weight |
2.4 x 1.8 x 0.9 in. / 6 x 4.5 x 2.3 cm.
1.2oz / 34g
|
||
| Battery Type | User-replaceable CR2032 (included) | ||
| Connectivity | Bluetooth® Low Energy (BLE) connects to iOS devices (models 4s and later- see website for complete list of compatible models) | ||
| Logging Rate | 2 seconds to 12 hours | ||
| Storage Temperatures | -22°F to 140°F / -30°C to 60°C | ||
| Shock Resistance | MIL-STD-810G, Transit Shock, Method 516.5 Procedure IV (4 foot drop test) | ||
| Water Resistance | IP67 and NEMA-6 (30 minute submersion at 1 meter, 3.3 ft) | ||
| Compliance | CE certified, FCC, IC tested, RoHS and WEEE compliant. | ||
| Source | Designed and manufactured in USA. Complies with Regional Value Content and Tariff Code Transformation requirements for NAFTA Preference Criterion B. | ||
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | -18 C |
| Min Temperature | 140 F |
| LCD Screen | No |
Test Equipment General Attributes |
|
| Battery Type | CR2032 |
| Power Supply Voltage | Battery Powered |
