Descripción

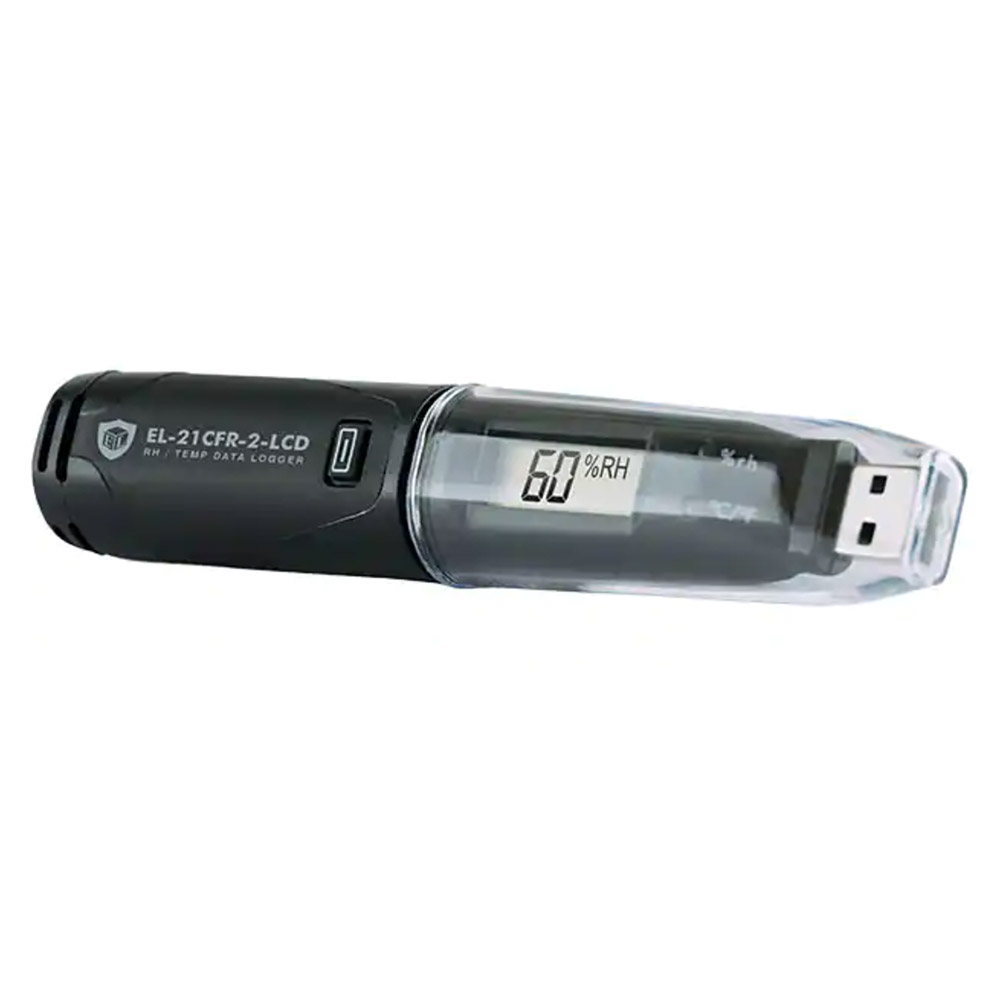

Lascar EL-21CFR-2-LCD Temperature and Humidity Data Logger (21 CFR Compliant)
This 21CFR-compliant standalone data logger measures more than 16,000 readings over a -35 to +80°C (-31 to +176°F) and 0 to 100% relative humidity (RH) range.
At the touch of a button, use the on-board display to cycle between the current, minimum and maximum logs seen during the session for both temperature and humidity.
This standalone data logger measures and stores over 16,000 temperature and humidity readings from -35 to +80°C (-31 to +176°F) and 0 to 100%RH range at a resolution of 0.5°C (1°F) and 0.5%RH.

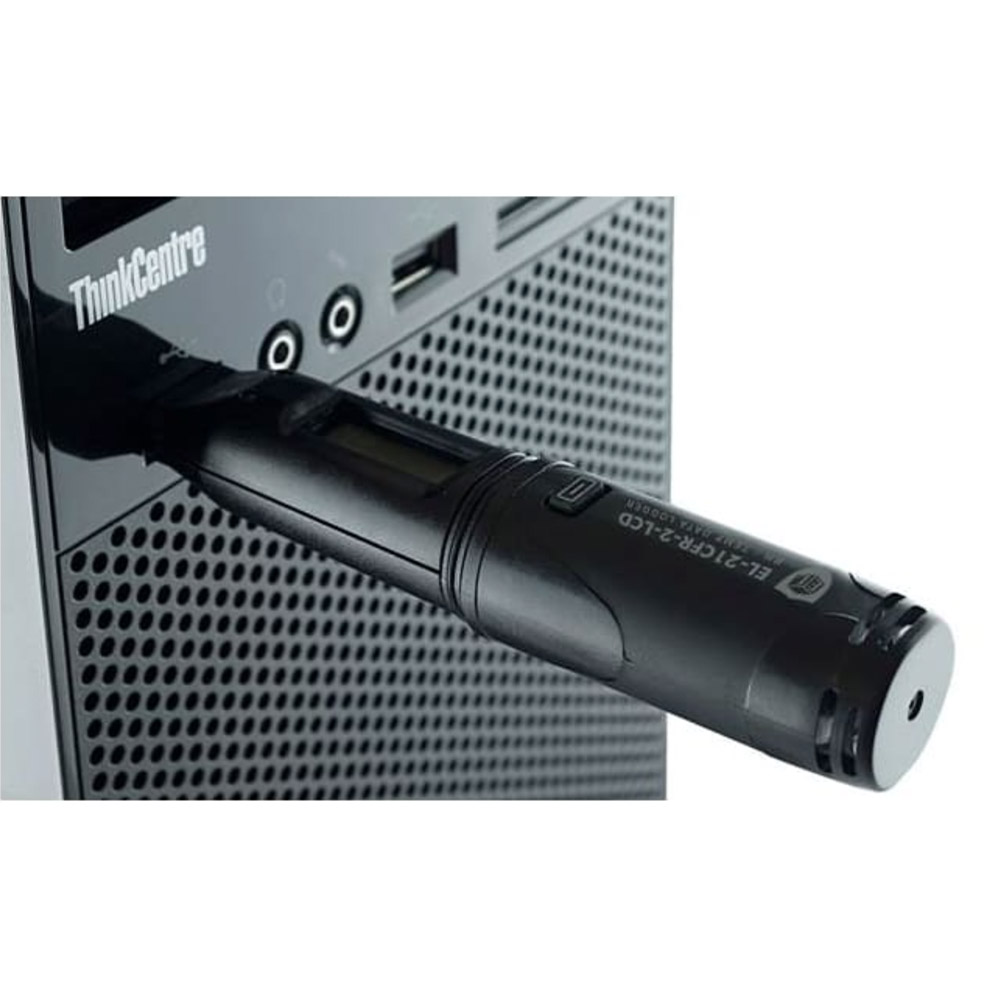

The user can easily set up the logger and view downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog 21CFR software. Data, including calculated dew point, can then be graphed, printed and exported to other applications for detailed analysis. The encrypted data has full audit tracking to comply with the requirements of 21CFR Part 11.
The high contrast LCD can show a variety of temperature and humidity information. At the touch of a button, the user can cycle between the current temperature and humidity, along with the maximum and minimum stored values for temperature and humidity.
The data logger is supplied with a lithium metal battery, giving up to 2 years’ logging life. The logger is protected against ingress from water and dust to IP67 standard when the cap is fitted.
Application
The EL-21CFR-2-LCD has been specifically developed to meet the data security required by the FDA’s 21CFR part 11 regulations. As such it is suitable for use in applications where the integrity of the data is of the highest importance.
- 21CFR
- Medical
- Cold Chain
Manufacturer Specs
| General Specifications | |
| Temperature | |
| Measurement range | -35°C to 80°C (-31°F to 176°F) |
| Internal resolution | 0.5°C (1°F) |
| Accuracy (overall error) | 0.55°C (1.04°F) typical (5 to 60°C) |
| Long term stability | <0.02°C (0.04°F) / year |
| Relative Humidity | |
| Measurement range | 0 to 100%RH |
| Internal resolution | 0.5%RH |
| Accuracy (overall error) | 2.25%RH typical (20 to 80%RH) |
| Long term stability | <0.25%RH / year |
| Logging Rate | User selectable between 10 seconds and 12 hours |
| Battery Life | 2 Years |
