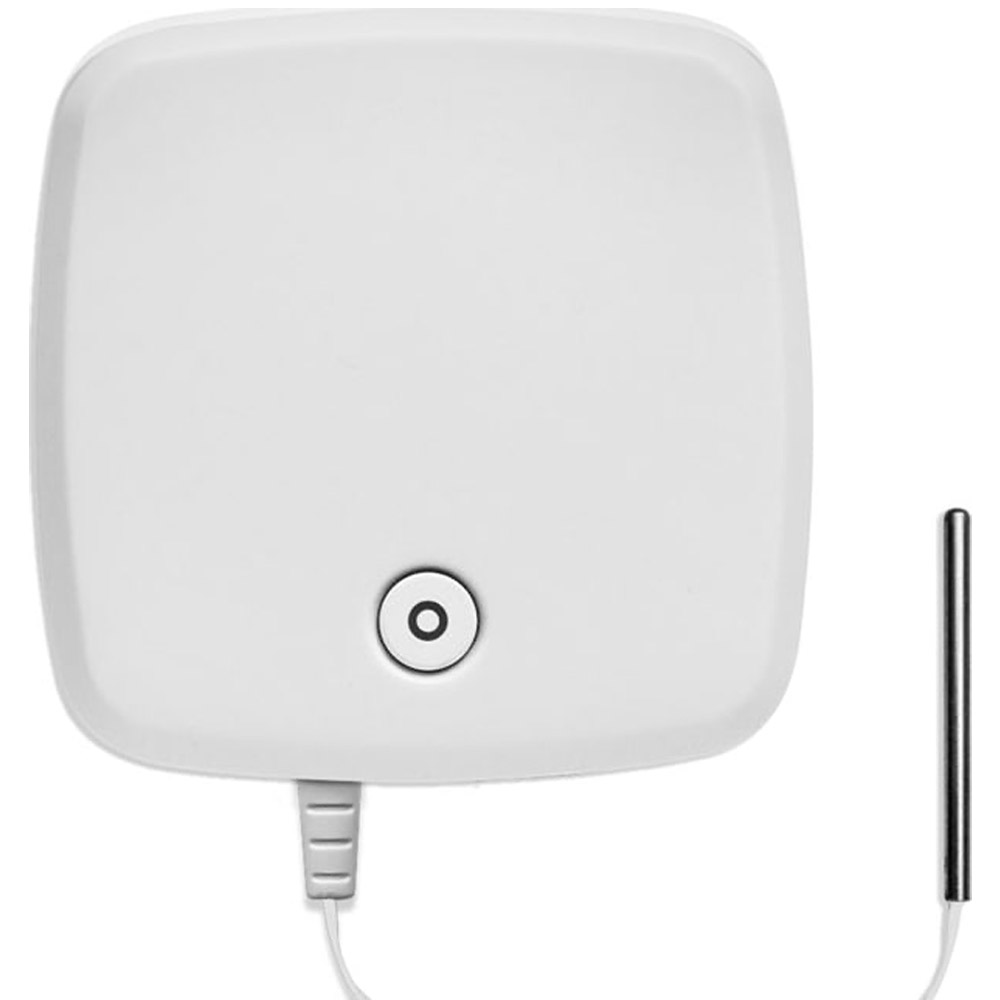

Lascar EL-MOTE-TP Wireless Thermistor Data Logger
Wireless Thermistor Data Logger
- Set up alarm options for temperature zone breaches – email alerts, beeper alarms or LED flash alerts
- Suitable for indoor and outdoor use
- Battery life of up to 2 years
The EL-MOTE-TP is a Cloud-enabled, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of IoT to automate data logging and alert notifications – perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
The EL-MOTE-TP kit has been designed to monitor temperature in a large range of applications, using a 75mm length barrel temperature probe on a 3m cable. Ideal for monitoring locations perhaps difficult or inhospitable to the data logger itself, the EL-MOTE-TP is ideal for monitoring refrigeration or storage units.
Products in the EL-MOTE range are simple to set-up and easy to use. Download the EasyLog Cloud App and set-up a device in minutes over your WiFi network. After set-up, the device can be placed anywhere within range of the WiFi network, continually monitoring and recording your data to the EasyLog Cloud. Access your data on any Internet Browser or the EasyLog Cloud App, enabling you to monitor the ambient temperature of your chosen location from anywhere at any time.
EL-MOTE devices can be programmed with high and low temperature alarm zones. If a temperature zone is breached, an alarm will be activated. Alarm options include: email alerts (which can be sent to one or multiple email addresses), beeper sound alarms, and LED flash alerts.
Manufacturer Specs
| General Specifications | ||||
| Logger Specification | ||||
| Minimum | Typical | Maximum | Unit | |
| Battery Life | 2* | years | ||
| Battery Type | 4 x 1.5V AA cells | |||
| Operating Temperature (Powered by Batteries Supplied) | -20 (-4) | +54 (129.2) | ˚C ( ˚F) | |
| Operating Temperature (Mains Adapter Powered) | -20 (-4) | +60 (140) | ˚C ( ˚F) | |
| Logging Period (User Configurable) | 10 sec | 10 min | 12 hrs | |
| Transmission Period (User Configurable) | 1 min | 1 hour | 24 hours | |
| Dimensions | 93 x 93 x 32 (3.7 x 3.7 x 1.3) | mm (inches) | ||
| IP Rating | 67 | |||
| Probe Specification | ||||
| Minimum | Typical | Maximum | Unit | |
| Range | -40 to +125 (-40 to +257) | ˚C (˚F) | ||
| Resolution | 0.1 (0.1) | ˚C (˚F) | ||
| Accuracy | ±0.8 (-15 to +70) (±1.5 (+5 to +158)) |
±1.5 (-40 to +125) (±3.0 (-40 to +257)) |
˚C (range) (˚F (range)) |
|
| Probe Length | Probe barrel: 75 x 5 (3 x 0.2) | mm (inches) | ||
| Cable length | 3000 (118) | mm (inches) | ||
| IP Rating | 67 | |||
