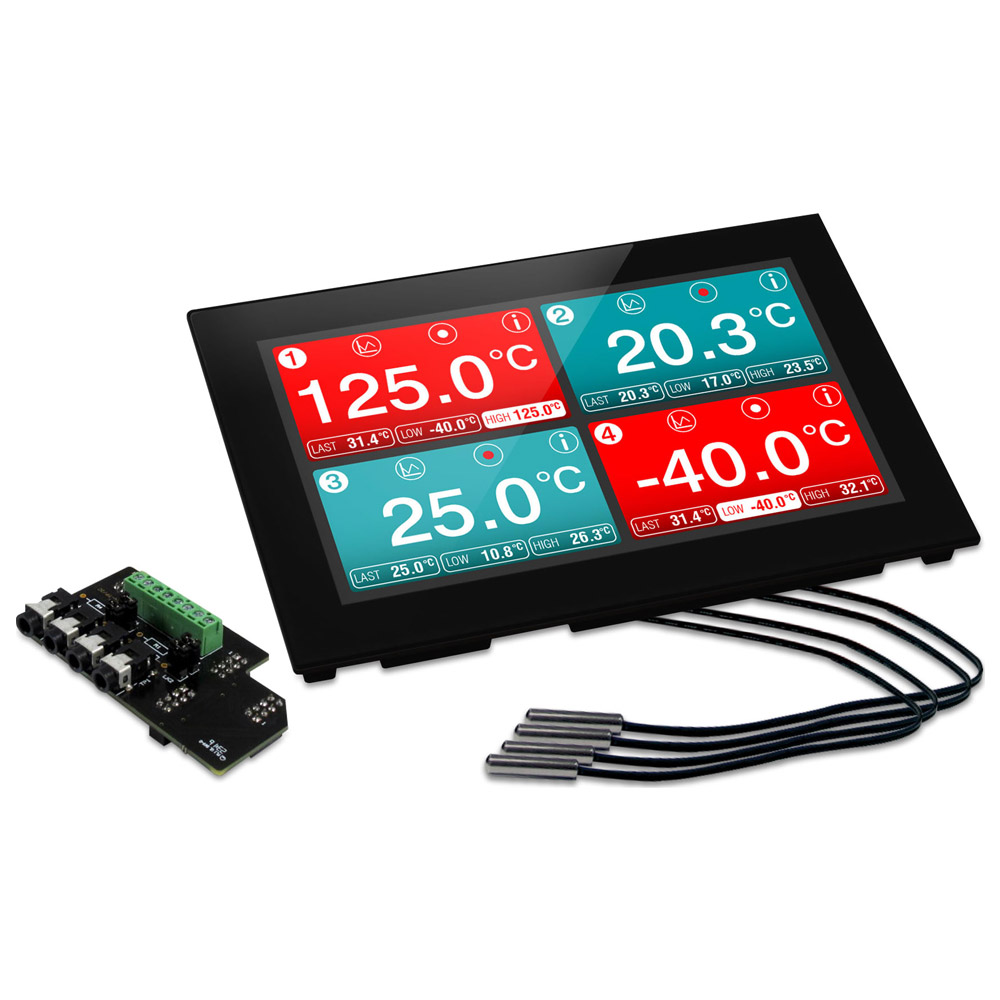

Lascar EL-SGD70-ATP Four-Channel Temperature Data Logger with 7″ Capacitive Touch Display
- EL-SGD70-ATP Four-Channel Temperature Data Logger with 7″ Capacitive Touch Display
- Panel Mountable Four-Channel Temperature Data Logger
- Compatible temperature probes
- Live trend graphs and access
- Real-time data analysis information
EL-SGD 70-ATP is a four-channel temperature data logger with real-time readings, trend graphing and data analysis tools.
The EL-SGD 43-ATP is a four-channel temperature data logger based on Lascar’s PanelPilotACE platform. The product includes a 4.3″ panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board and compatible temperature probes. The user interface comprises an advanced logging application which shows real-time readings for up to four temperature channels, live trend graphs and access to a suite of real-time data analysis information.
The logger can store up to 100,000 readings per channel at sample rates from 5 seconds up to 12 hours. Data can be downloaded via USB using Lascar’s free Device Utility software.
For advanced users, the interface can be extensively customized using Lascar’s free drag-and-drop PanelPilotACE Design Studio software.
Operating Modes
The EL-SGD 43-ATP can be configured for one, two, three or four channel temperature data logging in either celsius or farenheit.
| Function | 3.5mm SKT | Configuration |
| Channel 1 | NTC1 | 1, 2, 3 or 4 channel operation |
| Channel 2 | NTC2 | 2, 3 or 4 channel operation |
| Channel 3 | NTC3 | 3 or 4 channel operation |
| Channel 4 | NTC4 | 4 channel operation only |
Device Utility: Data download, device updates and programming of the module is completed using the free Device Utility software. Data is downloaded in comma separated variable format which can be imported into spreadsheet packages for graphing and further analysis.
Retrieving Logged Data: The EL-SGD 43-ATP is configured as a USB slave. To retrieve logged data, connect a PC or laptop to the USB connector on the rear of the unit and use the Device Utility software to select and extract logs as .txt files.
Design Studio Software: The PanelPilotACE Design Studio software provides tools for advanced users who wish to fully customise the data logging functionality of the module.
Manufacturer Specs
| General Specifications | |
| Supplied probe measurement range | -40°C to +125°C (-40°F to +257°F) |
| Internal Resolution | 0.01°C (0.01°F) |
| Temperature Accuracy | ±1.0°C (±1.8°F)* |
| Number of Readings (per channel) | 100,000 |
| Logging Rate | 15 seconds to 12 hours |
| Number of Channels | Up to 4 |
| Outside Dimensions | 186 x 122 x 21 mm (7.3″ x 4.8″ x 0.8″) |
| Communications Protocols | USB |
