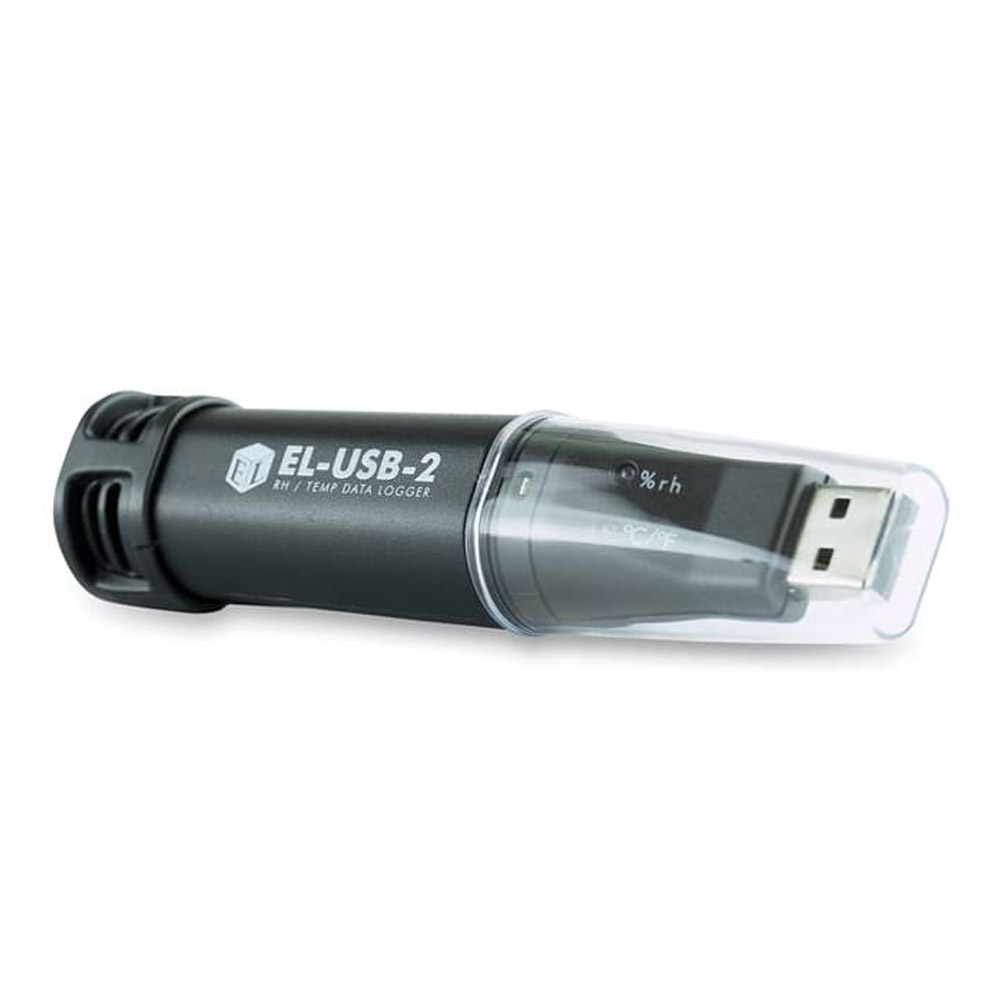

Lascar EL-USB-2 Data Logger Humidity, Temperature and Dew Point USB
This data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000, XP or Vista(32-bit only). Relative humidity, temperature and dew point (the temperature at which water vapor present in the air begins to condense) data can then be graphed, printed and exported to other applications.
The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for a year. Status indication is via flashing red and green LEDs. The logger is protected against ingress from water and dust to IP67 standard when the plastic cap and seal are fitted.
WINDOWS CONTROL SOFTWARE
Easy to install and use, the control software runs under Windows 98, 2000, XP (Home and Professional Editions)* and Vista (32-bit). It allows the user to set up and download any EL-USB-2.
DATA LOGGER SET-UPS
- Logger name
- °C, °F
- Logging Rate (10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
- High and Low Alarms for Humidity and Temperature
- Start Date and Start Time
Application Information
The EL-USB-1-PRO is suitable for a wide variety of applications, these include:
- Pharmaceutical fridge monitoring
- Transportation
- Food & drink
- Building & site monitoring
- HVAC
Manufacturer Specs
| Specification | Min | Typ | Max | Unit | |
| Relative Humidity | Measurement range | 0 | 100 | %RH | |
| Repeatability (short term) | ±0.1 | ||||
| Accuracy (overall error) (20-80%RH) | ±3.0** | ||||
| Internal resolution | 0.5 | ||||
| Long term stability | 0.5 | ||||
| Temperature | Measurement range | -35 (-31) | +80 (+176) | °C (°F) | |
| Repeatability | ±0.1 (±0.2) | ||||
| Accuracy (overall error) (20-80%RH) | ±0.5 (±1) | ||||
| Internal resolution | 0.5 (1) | ||||
| Dew Point | Accuracy (overall error) (25°C, 40-100%RH) | ±1.1 (±2)*** | °C (°F) | ||
| Logging rate | every 10s | every 12hr | – | ||
| Operating temperature range | -35 (-31) | +80 (+176) | °C (°F) | ||
| 1/2AA 3.6V Lithium Battery Life | 1* year | ||||
| * Depending on sample rate, ambient temperatures and use of alarm LEDs | |||||
| ** This specifies the overall error in the logged readings, for relative humidity measurements between 20 and 80%RH | |||||
| *** This specifies the overall error in the calculated dew point, for realtive humidity measurements between 40 and 100%RH at 25°C | |||||
