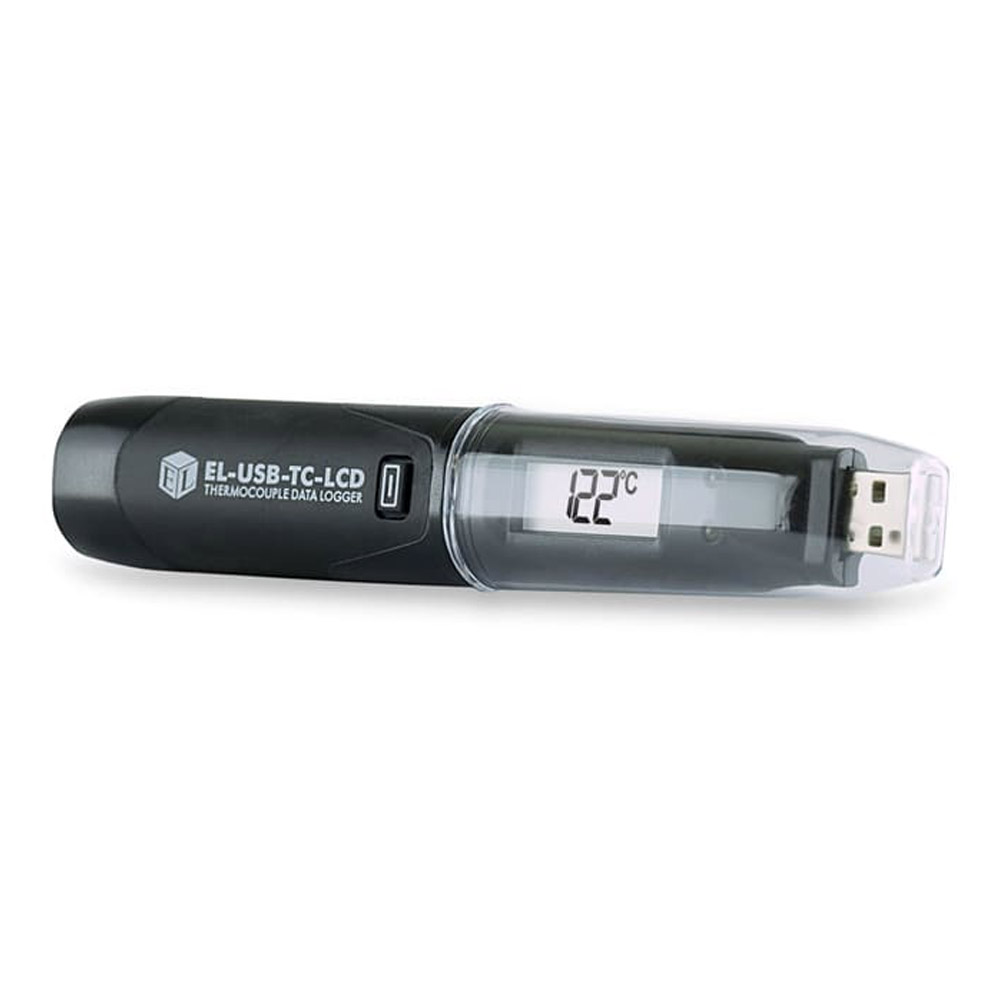

Lascar EL-USB-TC-LCD Data Logger Thermocouple with USB Interface
The EL-USB-TC-LCD standalone data logger measures over 32,000 readings from inter-changeable J, K or T type thermocouples. Supplied with a K Type probe, its measurement range out of the box measures from 0 to 200°C (32 to 392°F) range. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery, K-type probe and wall mount clip.
WINDOWS CONTROL SOFTWARE
Easy to install and use, the control software runs under Windows 98, 2000, XP (Home and Professional Editions)* and Vista (32-bit). It allows the user to set up and download any EL-USB-TC.
DISPLAY FUNCTIONS
Three different functions are available on the display – most recent logged temperature, maximum logged temperature and minimum logged temperature. The push button is used to cycle through the functions. In addition, logging and alarm status are shown using two high intensity LEDs.
DATA LOGGER SET-UPS
- Logger Name
- °C, °F
- Logging rate (1s, 10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
- High and Low Alarms
- Immediate, delayed and push-to-start logging
- Display off, on for 30 seconds after button press , or permanently on
- Data rollover (Allows unlimited logging periods by overwriting the oldest data when the memory is full)
Manufacturer Specs
| Specification | Min | Typ | Max | Unit | |
| Probe Measurement range | K-type | -200 (-328) | +1300 (+2372) | °C (°F) | |
| J-type | -130 (-202) | +900 (+1652) | |||
| T-type | -200 (-328) | +350 (+662) | |||
| Operating temperature range | -10 (+14) | +40 (+104) | °C (°F) | ||
| Resolution (internal and displayed) | 0.5 (1) | °C (°F) | |||
| Accuracy (logger error) | ±1 (2)** | °C (°F) | |||
| Logging rate | every 1s | every 12hr | – | ||
| 1/2AA 3.6V Lithium Battery Life *** | 6 | month | |||
| * Using thermocouple sensors, the EL-USB-TC can log temperatures as detailed above, but the data logger should not be subjected to temperatures outside the Operating temperature range | |||||
| ** EL-USB-TC is designed to be used whilst disconnected from USB port | |||||
| *** @ 25°C and 1m logging rate | |||||
