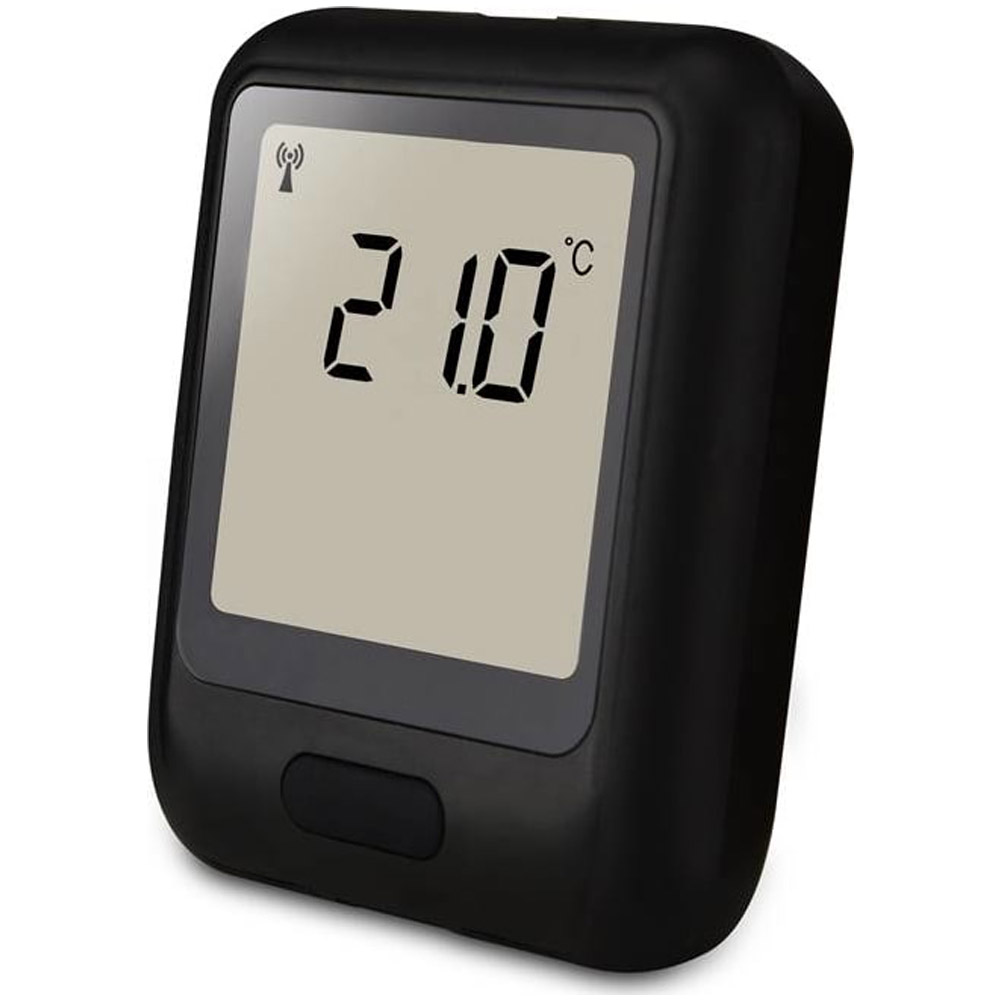

Lascar EL-WiFi-T Temperature Sensor
The EL-WiFi-T sensor measures the temperature of the environment in which it is situated. Data is transmitted wirelessly via a WiFi network to a PC and viewed via the graphing tool or can be exported to Excel.
The software installed on the PC will allow set up, data logging and data review. Set up features will include sensor name, °C/°F, sample rate, and high/low alarms.
During configuration, the sensor will search for an existing wireless network whilst physically connected to the PC. It can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application (max 120 days at 10 second sample interval). The range of the sensor can be increased by using WiFi extenders.
The EL-WiFi-T is suitable for a wide variety of applications, particularly where remote monitoring is important, these include:
- Environmental and weather monitoring
- Agricultural and livestock
- Food & drink
- Building & site monitoring
- HVAC
Manufacturer Specs
| Specification | Minimum | Typical | Maximum | Unit |
| Battery life | >1* | Year | ||
| USB supply voltage | 4.5v | 5.5v | V d.c. | |
| Temperature measurement range | -20 (-4) | +60 (+140) | °C (°F) | |
| Internal resolution | ±0.1 | °C (°F) | ||
| Temperature accuracy (overall error between -10°C and +60°C) | ±1.0 (1.8) | °C | ||
| Logging rate (user configurable) | Every 10s | 30 seconds | Every 12hrs | Transmisson rate |
| Operating temperature range | -20 (-4) | +60 (+140) | °C (°F) |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| HTS/Schedule B Number | 9025.80.5000 |
