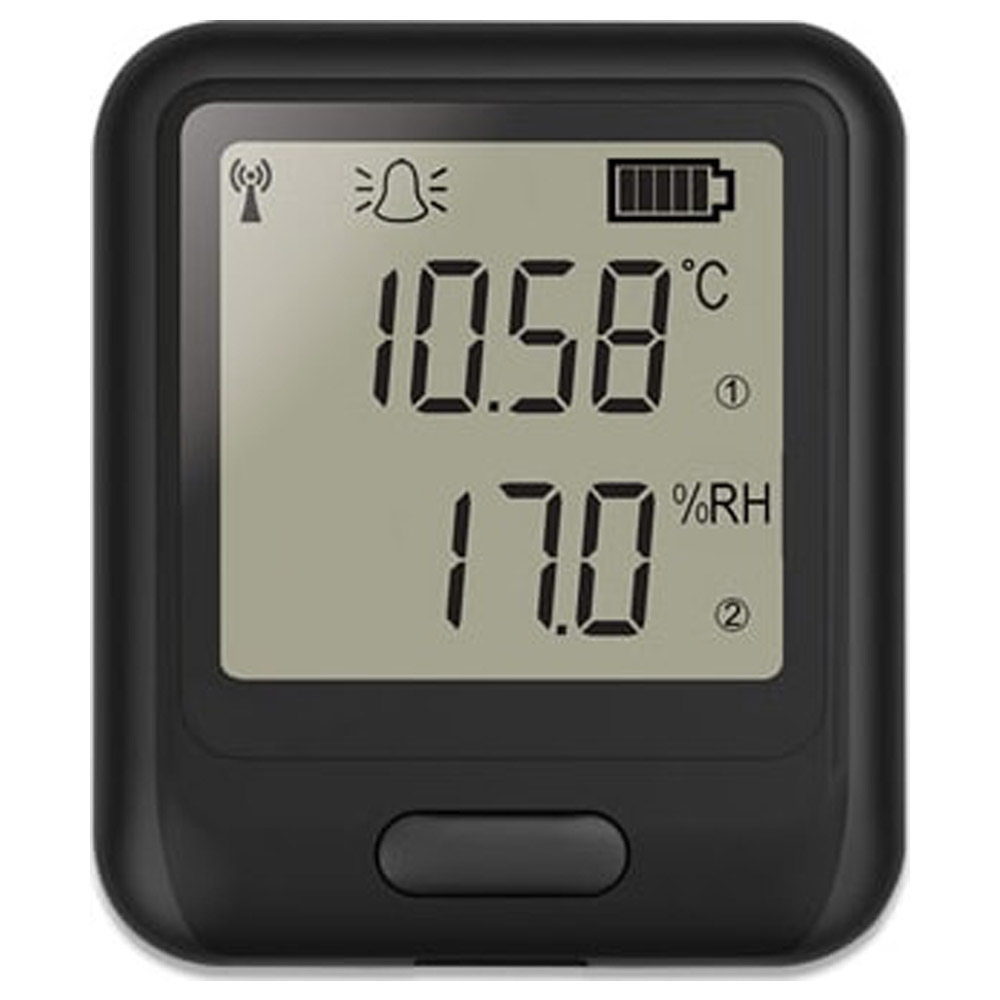

Lascar EL-WiFi-TH+ High Accuracy WiFi Temperature & Humidity Data Logging Sensor
Data Logging Sensor
- Temperature and Humidity data logging sensor with integrated display
- Easy sensor set-up using the free PC software application
- Wirelessly stream data to PC or Cloud* via WiFi
The EL-WiFi-TH+ sensor measures the temperature and humidity of the environment in which it is situated. This high accuracy version is accurate to ±0.2°C and ±1.8%RH humidity. Data is streamed wirelessly over any WiFi network and can be viewed on a PC using free software package or on the EL-WiFi-Cloud*. During configuration, the sensor will search for an existing wireless network whilst physically connected to the PC. It can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application or cloud service (max 120 days at 10 second sample interval). Although the EL-WiFi sensors have an impressive range this can be increased by using WiFi extenders.
The EL-WiFi-TH+ is a low powered battery device. When configured using typical transmission periods (e.g. once every 5 minutes) the sensor will operate for over one year (at room temperature). The battery can then be recharged via a PC or USB +5V wall adapter using the USB lead provided or can be permanently powered by the USB wall adapter.
The software installed on the PC will allow set-up, data logging and data review. Set-up features will include sensor name, °C/°F, sample rate, and high/low alarms. Once configured, historic data can be viewed via the graphing tool or exported into Excel.
The sensor is a freestanding unit, however, it can be attached to a wall or vertical surface using the bracket and screws / sticky pad provided.
The EL-WiFi-TH+ is suitable for a wide variety of applications, particularly where remote monitoring is important, these include:
- Environmental and weather monitoring
- Agricultural and livestock
- Food & drink
- Building & site monitoring
- HVAC
Lascar’s calibration certificates* are traceable to UKAS or NIST standards depending on your location. Customers in the Americas, or customers ordering through our US sales office will receive NIST traceable certificates generated in our ISO 17025 facility, whilst customers in the UK, EU, Rest-of-world or customers ordering through our UK headquarters will receive UKAS traceable certificates.
Manufacturer Specs
| Specifications | Minimum | Typical | Maximum | Unit |
| Battery life | >1* | Year | ||
| USB supply voltage | 4.5 | 5 | 5.5 | Vdc |
| Operating temperature range | -20 (-4) | +60 (+140) | °C (°F) | |
| Logging Period (user configurable) | 10 sec | 10 min | 12 hrs | |
| Transmission Period (user configurable) | 1 min | 1 hr | 24 hrs | |
| Temperature measurement range | -20 (-4) | +60 (+140) | °C (°F) | |
| Humidity measurement range | 0 | 100 | %RH | |
| Temperature measurement resolution | 0.01 | °C | ||
| Humidity measurement resolution | 0.1 | %RH | ||
| Temperature display resolution | 0.5 | °C | ||
| Humidity display resolution | 1 | %RH | ||
| Temperature accuracy (0 to +60°C) | ±0.2 | °C | ||
| Humidity accuracy (10 to +90%RH) | ±1.8 | %RH |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | 60 C |
| Min Temperature | -20 C (-4 F) |
| Accuracy | ±0.2°C and ±1.8%RH humidity |
| LCD Screen | Yes |
| Software Included | Yes |
| RH | +90 % |
Test Equipment General Attributes |
|
| Data Logging | Yes |
| HTS/Schedule B Number | 9025.80.5000 |
| ECCN Number | EAR99 |
| Country of Origin | China |
