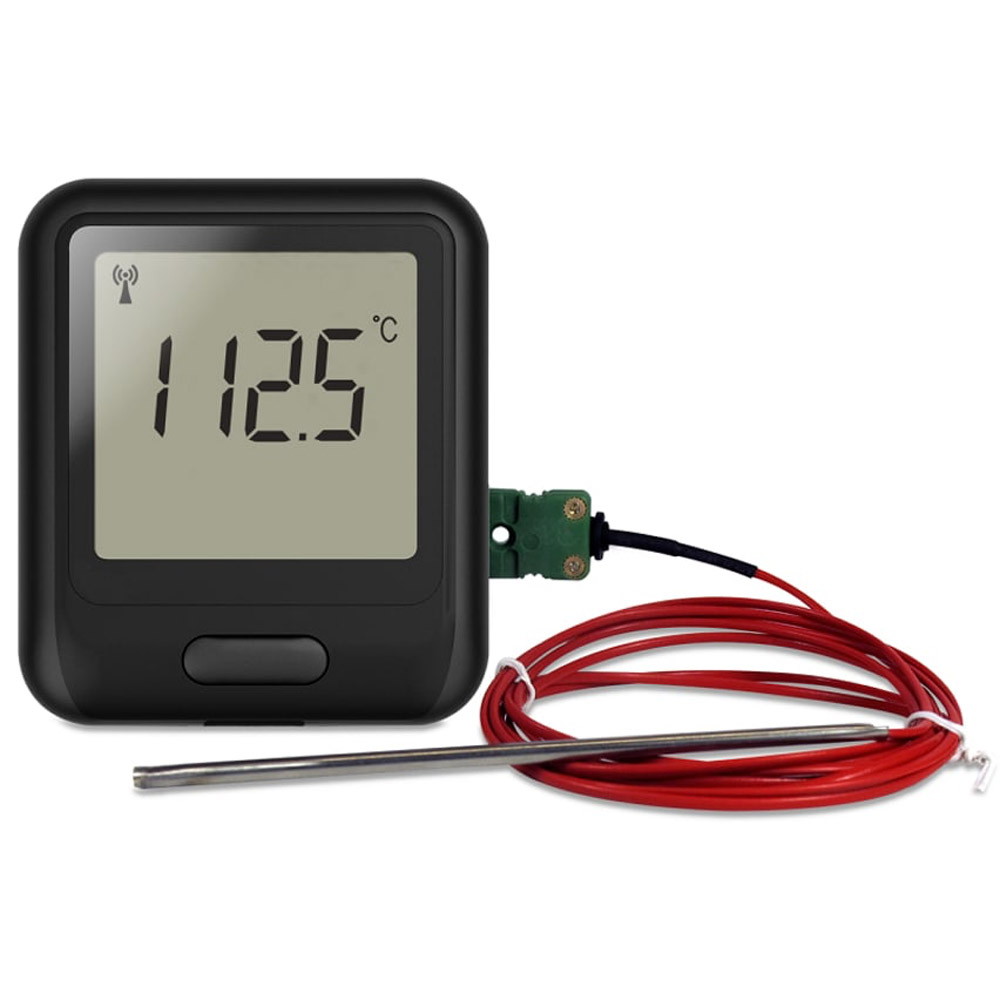

Lascar EL-WIFI-ULT – WiFi Cryogenic Vaccine Data Logger with Display
- Measurement range -100 to +100°C (-148 to +212°F)
- T-type probe on 1m cable
- Wirelessly stream and view data on the EasyLog Cloud, App or on a PC
- View and analyse multiple sensors, including graphing of historic data
The EL-WiFi-ULT is a Cloud-enabled wireless ultra-low temperature data logger, with a built-in display, designed for monitoring vaccines in cryogenic dry ice storage. The measurement range is -100 to +100°C (-148 to +212°F) using the probe supplied with the logger. The logger automatically records data and uploads it to the EasyLog Cloud via your normal wireless network.
Data is streamed wirelessly over any compatible WiFi network and can be viewed on a PC using free software or on the EasyLog Cloud or App.
Your Data. Anytime. Anywhere.
EasyLog Cloud harness the power of IoT to automate data logging and alert notifications, enabling you to monitor and manage multiple data logging devices in different locations completely remotely. The system easily scales to meet your needs. Perfect for compact systems with just a few measuring points, or corporate solutions with thousands of devices around the globe.
To configure the sensor for use on a given wireless network, either connect it via USB to a PC running EasyLog WiFi software on the network, or configure wirelessly using the EasyLog Cloud app on a mobile phone with access to the network. The sensor can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application or EasyLog Cloud (max 30 days at 10 second sample interval).
The sensor is IEEE 802.11bgn* (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption and enterprise networks (PEAP, TTLS, FAST).
EL-WiFi-ULT has a protection rating of IP40. The unit is freestanding, but can be attached to a wall or surface using the bracket provided. The unit can be clipped in and out of the bracket as required.
Applications
Manufacturer Specs
| General Specifications | |
| Measurement Range | -100 to +100°C (-148 to +212°F) |
| Accuracy | ±2.5°C (±4.5°F) typical |
| Logging Rate | User selectable between 10 seconds and 12 hours |
| Storage capacity | Unlimited |
| Dimensions (logger) | 82 x 70 x 23mm (3.22 x 2.75 x 0.91”) |
| Dimensions (probe) | 300 x Ø1.5mm x 1m cable (11.8 x Ø0.06″ x 39.4″ cable) |
| Battery | Rechargeable Battery / 6 Months Battery Life / Mains Powered Option |
