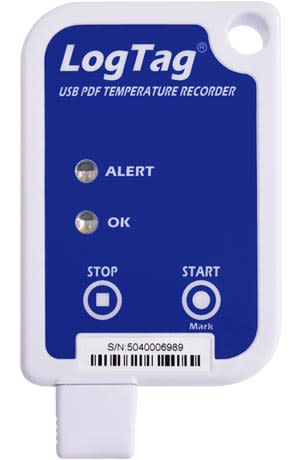

LogTag UTRIX-16 – Multi-Use USB Pdf Temperature Logger
- Records temperature from -30°C to +70°C
- Up to 16,000 recordings – provides over 3 months logging at 10 minute sample intervals
- Automatic generation of a PDF report as a permanent record of the data
- Measure and store up to 16,000 temperature readings
- Can be connected to any computer with a USB port. No interface cradle required
The LogTag UTRIX-16 satisfies the growing need for a cost effective and reliable multi-use temperature logger. It requires no special hardware or proprietary software to access the recorded data and can generate a fully detailed PDF report.
The UTRIX-16 stores real-time temperature readings over a measurement range of -30°C to +70°C (-22°F to +158°F), displays user-configurable alerts, and comes with an integrated, long-life USB connector.
The UTRIX-16 plugs directly into the computer USB for easy configuration by the user for a wide range of recording and alert conditions. Upon download, it automatically generates a fully detailed PDF report with the option to download the data using the freely available LogTag Analyzer software for a more detailed analysis.
A red ALERT indicator provides an immediate indication – without access to a PC – if any readings are outside the limits specified at the time the unit was configured. A green OK indicator provides immediate visual confirmation that the unit is operating.
Manufacturer Specs
| Product Model | UTRIX-16. |
| Sensor Measurement Range | -30°C to +70°C (-22°F to +158°F). |
| Operating Temperature Range | -30°C to +70°C (-22°F to +158°F).* |
| Storage Temperature Range | 0°C to +40°C (32°F to +104°F). |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F). Better than ±0.7°C (±1.3°F) for -30°C to -20°C (-22°F to -4°F) & +40°C to +60°C (+104°F to +140°F). Better than ±0.8°C (±1.5°F) for +60°C to +70°C (+140°F to +158°F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Rated Temperature Reading Resolution | Less than 0.1°C/F. LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 7 minutes (T90) in moving air (1m/s) in EN12830:1999. |
| Recording Capacity | 16,129 temperature readings. 56 days @ 5min logging, 168 days @ 15min logging. |
| Sampling Interval | Configurable from 30 seconds to 18 hours. |
| Logging Start Options | Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time. |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
| Alarms | 1 configurable upper and 1 configurable lower alarms. |
| Download Time | Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer (if configured). |
| Environmental | IEC 60529: IP64 with USB cap fitted. |
| Power Source | CR2450 3V LiMnO2 Battery (Fixed). |
| Battery Life | 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly). |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag® Analyzer 2.5 or higher. |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap. |
| Weight | 36g. |
| Case Material | Polycarbonate. |
| Footnote | *(-30°C to +60 °C applies to Loggers with serial numbers 5x40x44197 or greater. Loggers with serial numbers prior to this have an operating temperature range of -25°C to +60°C). |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 158 C |
| Min Temperature | -22 F |
| Power Source | Battery |
| Battery Life | 3 YEARS (26280 HR) |
| Input Source | Internal Probe |
| SAMPLE RATE/Intervals | 30 seconds to 18 hours |
| Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F). Better than ±0.7°C (±1.3°F) for -30°C to -20°C (-22°F to -4°F) & +40°C to +60°C (+104°F to +140°F). Better than ±0.8°C (±1.5°F) for +60°C to +70°C (+140°F to +158°F). Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below. Accuracy figures can be improved by recalibration. |
| LCD Screen | Yes |
| Software Included | Yes |
| Data Output Format | |
Test Equipment General Attributes |
|
| Unique Features | multi-use logger |
| Warranty | 1 YEARS |
| Safety Approval | CE, RoHS |
| Interfaces I/O | Other |
| Storage | Internal Memory |
| IP Rating | IP64 |
| Product Weight | 0.0794 LBS |
| Product Height | 3.66142 IN |
| Product Length | 0.334646 IN |
| Product Width | 2.145669 IN |
| Shipping Weight | 0.0913 LBS |
| Data Logging | Yes |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
