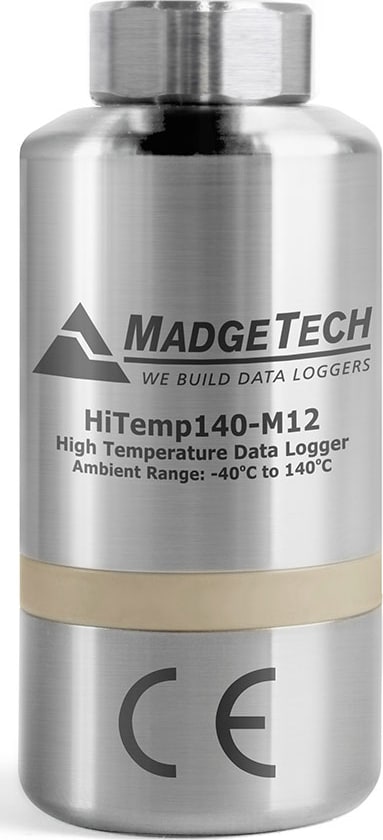

Madgetech HiTemp140-M12-KR – Temperature Data Logger with a Built in M12 Probe Connector and Key Ring
- High temperature data logger with an M12 probe connector
- Capable of measuring up to 850°C (1562 °F)
- Includes standard calibration certificate
- Memory Capacity of 43,000+ Readings
- Accepts a Variety of M12 RTD Probe Styles
The HiTemp140-M12 is a high-temperature data logger featuring an M12 probe connector. With the ability to change probes as needed, this device satisfies a multitude of application needs.
Compatible with a wide variety of M12 RTD probe styles, the HiTemp140-M12 is capable of measuring up to 850 °C (1562 °F) (probe dependent). The HiTemp140-M12 records and stores up to 43,690 time-stamped readings and can be programmed for immediate start or delayed start up to 18 months in advance.
The HiTemp140-M12 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data are provided for analysis and can be viewed as customizable engineering units.
Body of data logger cannot exceed 140 °C (284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.
Manufacturer Specs
| Memory | 43,690 readings |
| Reading Rate | 4 readings per second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Battery Life | 2 years typical (1 minute reading rate) User Replaceable Battery |
| Material | 316 Stainless Steel |
| Dimensions | 2.14 in x 0.97 in x 0.97 in (54.5 mm x 24.6 mm x 24.6 mm) |
| Key Ring End Cap | Key ring replaces standard bottom Thru-hole: 0.150″ |
| IP Rating | IP40 – logger alone (with no probe connected) The logger will inherit IP rating of the attached probe (up to, and including IP68/IP69K). |
| Submersible | Yes (with probe attached) |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH non-condensing, 0.002 PSIA to 60 PSIA (Body of Logger cannot Exceed 140 °C) |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE |
| Temperature | |
| Temperature Sensor | Various RTD Probes with M12 Connector (Sold Separately) |
| Temperature Resolution | 0.0001 Ω, 0.01 °C (0.02 °F) (Probe Dependent) |
| Temperature Calibrated Accuracy | ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)
Calibrated Accuracy Range: |
| Probe Temperature Range | 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) (Body of Logger Cannot Exceed 140 °C) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | Other |
| Max Temperature | 1562 F (850 C) |
| Min Temperature | -328 F |
| Power Source | Battery |
| Battery Life | 2 YEARS (17520 HR) |
| Input Source | External Probe |
| Accuracy | 18 Ω to 200 Ω -200 °C to +265 °C (-328 °F to +509 °F) |
| LCD Screen | No |
| Data Output Format | excel |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| IP Rating | IP68 |
| Product Weight | 3 OUNCES (0.188 LBS) |
| Product Height | 2.15 IN |
| Product Length | 0.97 IN |
| Product Width | 0.97 IN |
| Shipping Weight | 3.45 LBS |
| Data Logging | Yes |
| Calibration Included | None |
| Battery Type | Li-ion |
| Country of Origin | United States |
