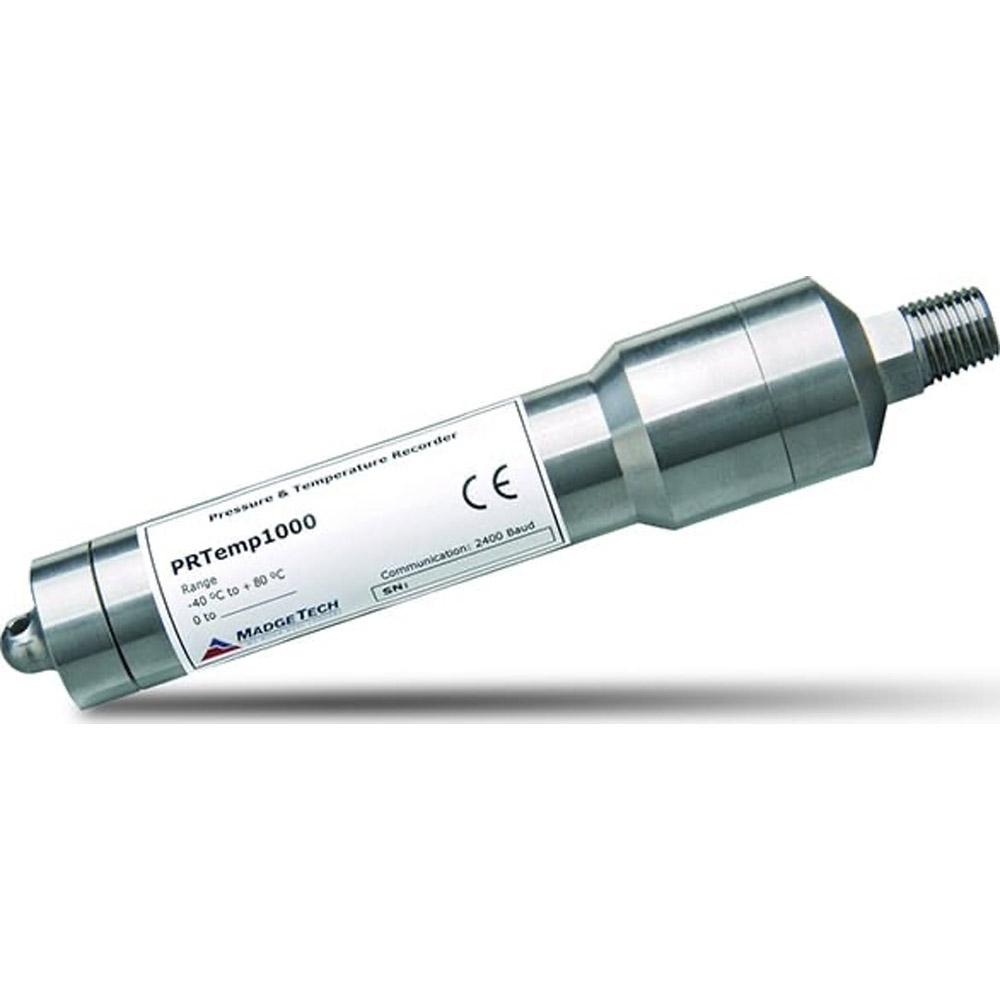

Madgetech PRTemp1000-1000-PSIA – Pressure and Temperature Recorder
- 0 to 1000 PSIA Pressure and Temperature Recorder with 1/4 NPT fitting, stainless steel enclosure
- Rugged
- Reusable
- Submersible
- Programmable start time
- Real-time operation
The PRTemp1000 is a rugged pressure recorder to accurately monitor and record pressure and temperature at user programmable reading intervals. The rugged stainless steel design allows for the device to be placed in harsh environments, which makes it well suited for use with air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.
The internal temperature sensor provides accurate temperature measurements without the need for a separate temperature recorder. The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours. It will store up to 16,383 readings in its non-volatile memory.
The PRTemp1000 uses a rugged stainless steel pressure strain gauge to accurately measure the pressure. The device comes standard with a ¼” NPT fitting, which allows the logger to be connected to almost any pressure adapter. The PRTemp1000 is also fully submersible.
There are many different pressure ranges available to fit most any application. The standard pressure ranges are 30 PSIA(G), 100 PSIA(G), 300 PSIA(G), 500 PSIA(G), 1000 PSIA and 5000 PSIA. Other ranges may also be available upon request.
Product Note
Getting Started
To access the COM Port for the interface cable, unscrew the key-ring end cap.
Pressure Sensor
To use the pressure sensor for gauge measurements, screw the ¼” male NPT fitting into the pipe to be measured with a 9/16” wrench. The NPT fitting can be used for absolute and submersible applications, but in those cases it’s preferable to use the submersible fitting.
Submergibility
The PRTemp1000 is fully submergible and is rated IP68. It can be placed in environments with up to 230 feet (70 m) of water.
O-Rings
O-ring maintenance is a key factor when properly caring for the PRTemp1000. The o-rings ensure a tight seal and prevent liquid from entering the inside of the device. Please refer to the application note “O-Rings 101: Protecting Your Data”, found on the MadgeTech website, for information on how to prevent O-ring failure.
Manufacturer Specs
| General Specifications | |
| Memory | 16,383/channel |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| Baud Rate | 2,400 |
| Battery Life | 1 year |
| Materia | 303 stainless steel |
| Dimensions | 6.4 in x 1.25 in dia. (163 mm x 32 mm) |
| Submersible | Yes |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC110 or IFC200 |
| Approvals | CE |
| Weight | 0.6250 LBS |
| Temperature | |
| Temperature Sensor | Internal semiconductor |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C |
| Pressure | |
| Pressure Range | 0 to 30, 100, 300, 500 PSIA/G; 1000 and 5000 PSIA |
| Pressure Resolution | See Specifications Sheet |
| Pressure Calibrated Accuracy | 2 %FSR, 0.25 % at 25 °C (77°F) typical |
| Range (PSI) | 0-1000 |
| Accuracy | 2 %FSR, 0.25 % @ 25 °C Typical |
| Resolution (PSI) | 0.05 |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 176 F (80 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 8760 HR |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 0.75 LBS |
| Data Logging | Yes |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
