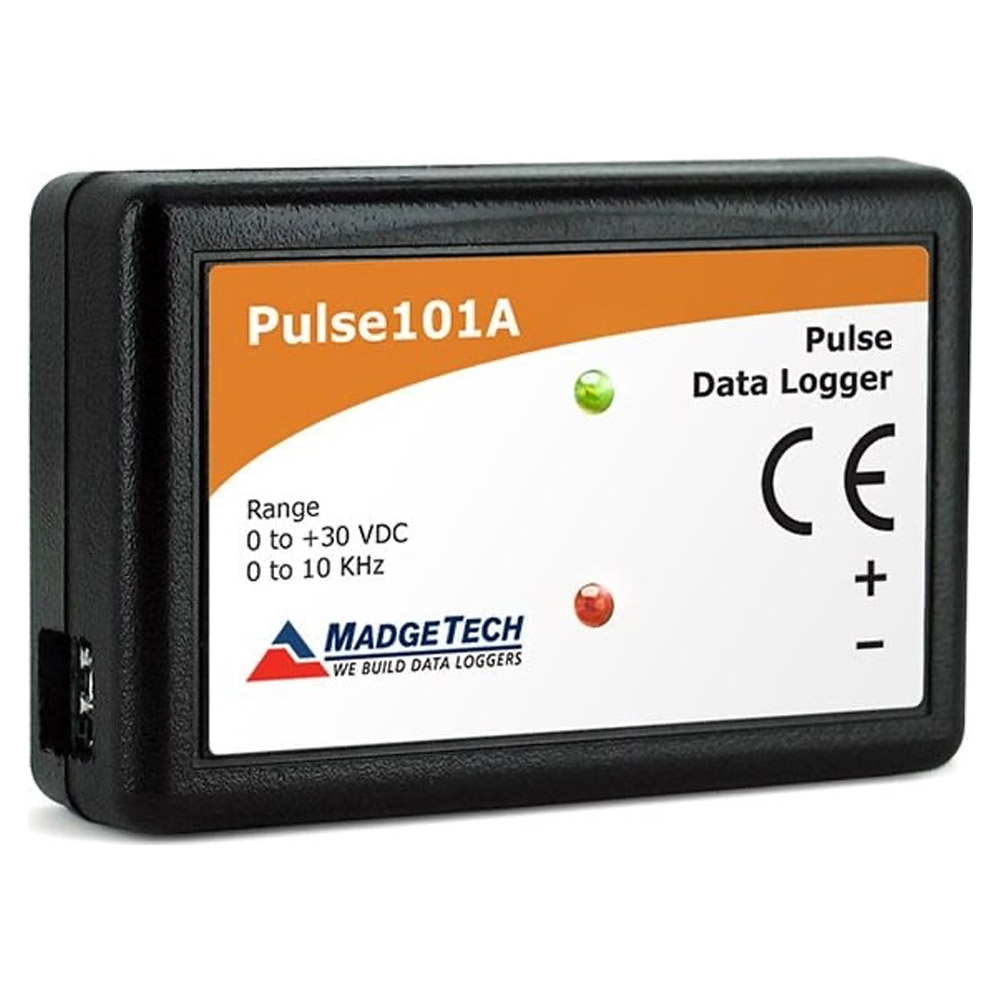

MadgeTech Pulse101A Pulse Data Logger
 |
|
The Pulse101A is a compact data logger compatible with many switches, meters and transducers. This multipurpose pulse recording device is designed to accurately monitor and record events occurring within a specified time frame.
The Pulse101A can be used for flow rate, gas and water metering, or can also be used in conjunction with an anemometer to track air speed. This versatile low cost device is compatible with dry contact closures and has many general purpose uses such as frequency monitoring and traffic studies.
The Pulse101A has a maximum pulse rate of 10KHz to capture rapid events for a wide range of applications. With a ten year battery life and the ability to store up to 500,000 readings, the Pulse101A can be deployed for long term assignments and configured to start and stop logging as specified by the user.
Manufacturer Specs
| General Specifications | |
| Memory | 500,000 readings; software configurable memory wrap 250,000 readings in multiple start/stop mode |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red and Green |
| Push-Button Start | Yes |
| Battery Life | 10 years typical, dependent upon frequency and duty cycle |
| Material | ABS plastic |
| Dimensions | 1.4 in x 2.5 in x 0.6 in (36 mm x 64 mm x 16 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Weight | 0.0625 LBS |
| Pulse | |
| Maximum Pulse Rate | 10 KHz |
| Pulse Input Range | 0 to 30 VDC continuous |
| Pulse Input Low | <0.4 V |
| Pulse Input Hight | >2.8 V |
| Pulse Internal Weak Pull-up | <60 μA |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 176 F (80 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 87600 HR |
| Accuracy | Time Accuracy: ±1 minute/month (at 20 ºC/68 ºF, stand alone data logging) |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 0.05 LBS |
| Data Logging | Yes |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
