Descripción

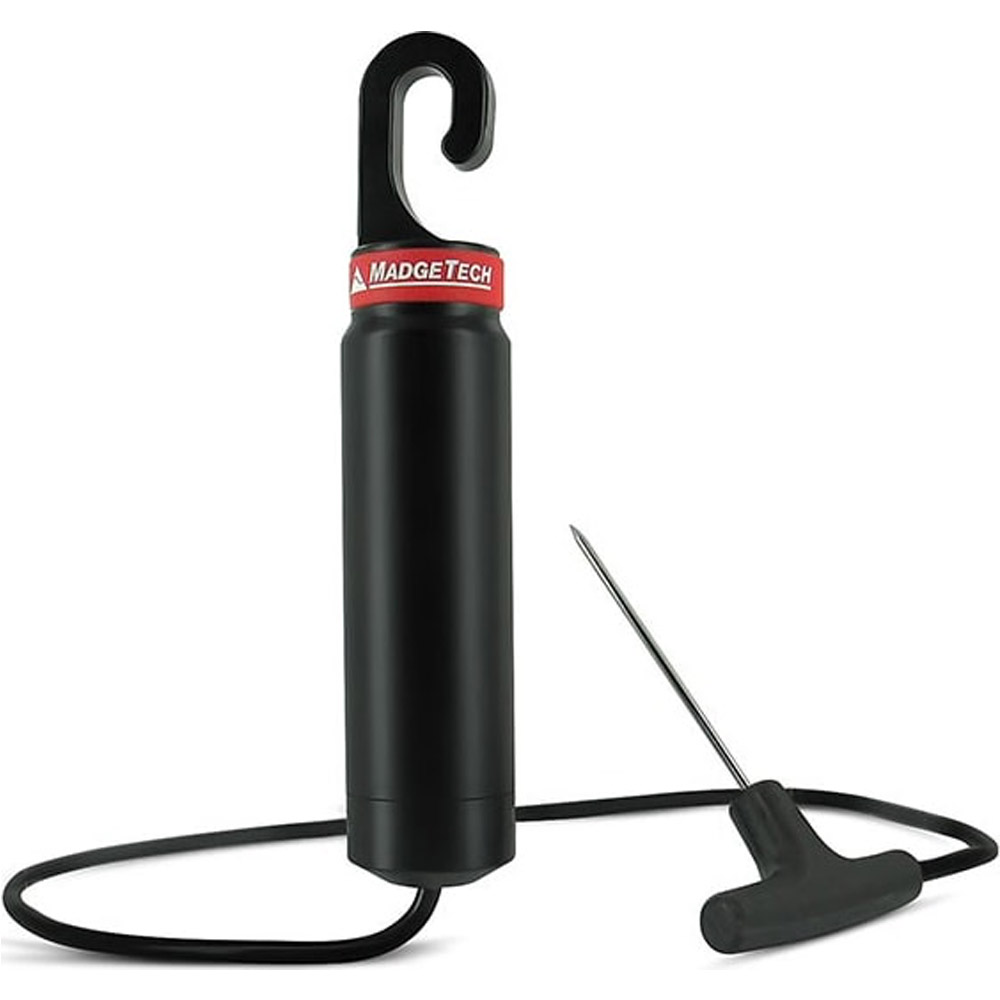

Madgetech RFOT Wireless Meat Temperature Data Logger
 |
|
MadgeTech’s RFOT is the most advanced wireless temperature data logger in the meat industry today. MadgeTech has enhanced the RFOT wireless meat data logger with an extra durable, rugged probe. The easy-grip handle is designed to be tough, ergonomic and built to stand up to the harshest environments and thousands of cycles. The RFOT is available with the following rigid piercing probe types:
• RFOT-FR: Fast response 1.75 inch (45 mm) probe (for smaller meat products)
• RFOT-4-TD: 4.0 inch (102 mm) transitional diameter probe (for smaller meat products)
• RFOT-4: 4.0 inch (102 mm) probe
• RFOT-7: 7.0 inch (177 mm) probe
The RFOT is perfectly suited for smoke houses, ovens and other cooking processes up to 100 °C (212 °F) as well as refrigerators and freezers down to -20 °C (-4 °F). It is completely splash proof and can withstand wash down cycles. This state-of-the-art device records and transmits internal product temperature readings back to a central computer for instant real time monitoring.
The RFOT never needs to be connected to a computer as it has been designed for two way wireless communication. Full communication can be performed directly from a central PC. In addition to wirelessly transmitting data, the RFOT also stores each reading to internal memory for backup. This backup data may be retrieved wirelessly at a later time.
MadgeTech’s easy to use software features user programmable critical control points, called “cooling flags” to assist in compliance with USDA Appendix B. The “cooling flags” are automatically annotated on the graph and tabular data views. The summary tab provides the cool down duration between each critical control point. The data can also be automatically exported to Excel® for further calculations.
Manufacturer Specs
| General Specifications | |
| Memory | 20,000 readings; software configurable memory wrap |
| Reading Rate | 1 reading every 2 seconds to 1 every 24 hours |
| Baud Rate | 115,200 |
| Battery Life | 2 years typical |
| Material | Body: Acetal Copolymer Cable Jacket: Silicone Polyurethane |
| Dimensions | Body: 8.66 in x 1.75 in dia. (220 mm x 44 mm dia.) Hook ID: 0.5 in (13 mm) Cable Length: 30 in (762 mm) |
| IP Rating | Splash proof (IP67) |
| Operating Environment | -20 ºC to +100 ºC (-4 ºF to 212 ºF) 0 %RH to 100 %RH non-condensing |
| Required Interface Package | RFC1000 |
| Approvals | CE, US (FCC), CA (IC) |
| Weight | 0.5500 LBS |
| Temperature | |
| Remote Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Remote Channel Temperature Calibrated Accuracy | ±0.1 °C at 0 °C to +100 °C (32 °F to 212 °F) ±0.5 °C (outside of that range) |
| Probe Temperature Range | -50 °C to +200 °C (-58 °F to +392 °F) |
| Wireless | |
| RF Carrier Frequency | 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET wireless transceiver with fully bi-directional communication |
| Output Power | +0 dBm typical |
| Receiver Sensitivity | -95 dBm typical |
| Typical outdoors Line of sight | Up to 2000 ft |
| Typical Indoors line of sight | Up to 500 ft |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | RTD |
| Max Temperature | 392 F (200 C) |
| Min Temperature | -58 F |
| Power Source | Battery |
| Battery Life | 17520 HR |
| Accuracy | ±0.5 °C (outside of that range) |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| IP Rating | IP67 |
| Product Weight | 0.55 LBS |
| Data Logging | Yes |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
