Descripción

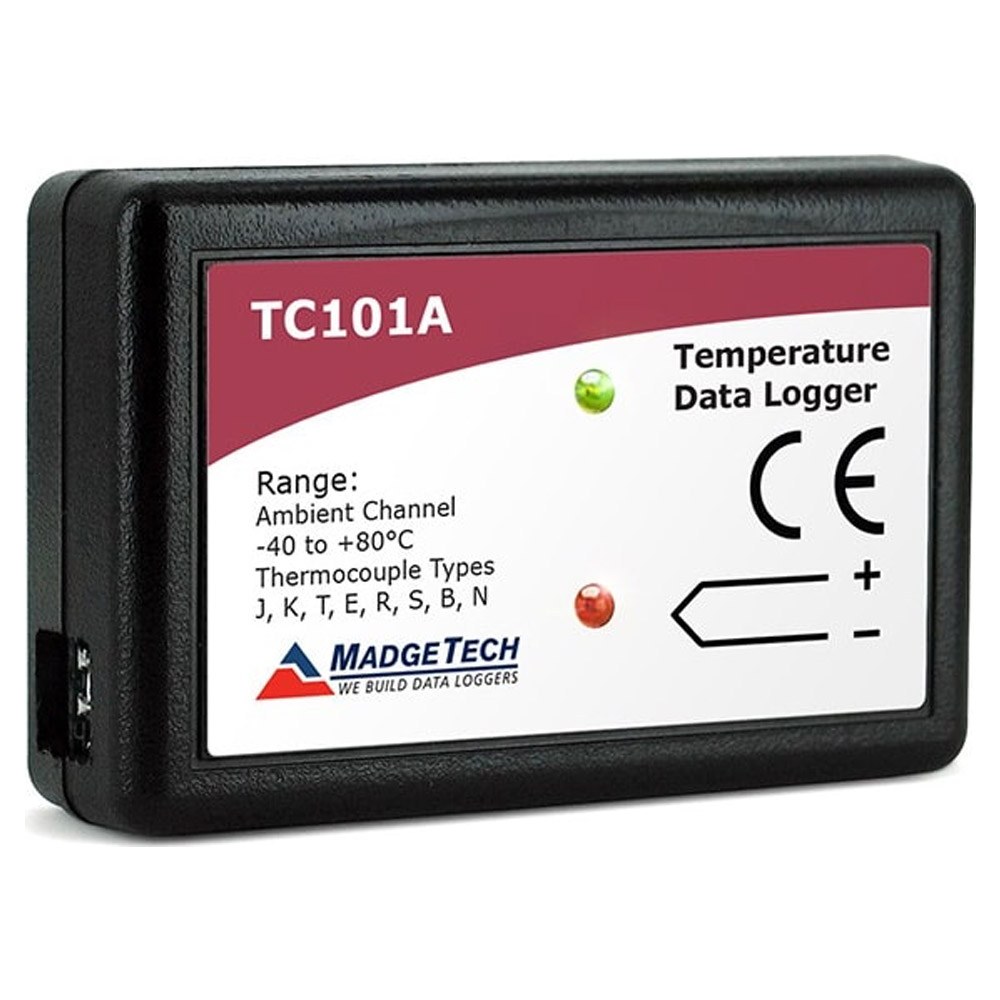

Madgetech TC101A-ST – Thermocouple Data Logger
- Thermocouple Data Logger with fixed screw terminals
- 10 Year Battery Life
- 1 Second Reading Rate
- Multiple Start/Stop Function
- Ultra High Speed Download
The TC101A temperature data logger, is a compact versatile device to be used with thermocouple probes for accurate temperature monitoring and profiling. This data logger is an ideal and affordable solution for applications such as HVAC studies, oven profiling, dry-ice shipments, process validation and many general purpose temperature monitoring applications. Compatible with eight different types of thermocouple probes, the TC101A can measure temperatures as low as -270 °C , and up to as high as 1820 °C (probe dependent), with an environmental operating temperature range of -40 °C to +80 °C for the data logger body. The 10 year battery life and the memory storage capacity of 500,000 readings with optional memory wrap makes the TC101A ideal for extended deployments. With the user friendly MadgeTech Data Logger Software, the TC101A is easily connected to a PC to download the collected data. The MadgeTech Software is capable of presenting the data in graphic, tabular, and summary formats for reporting. Data can also be exported easily to Excel for further analysis and calculations.
Manufacturer Specs
| General Specifications | |
| Memory | 1,000,000 readings; software configurable memory wrap 500,000 readings in multiple start/stop mode |
| Reading Rate | 1 reading every second to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 1 Internal & 1 Remote |
| LED Indicators | Red & Green |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | ABS plastic |
| Dimensions | 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Weight | 0.0563 LBS |
| Temperature | |
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | E, J, K, S, T |
| Max Temperature | 176 F (80 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 87600 HR |
| LCD Screen | No |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 0.05 LBS |
| Product Height | 0.6 IN |
| Product Length | 1.4 IN |
| Product Width | 2.2 IN |
| HTS/Schedule B Number | 9027.80.8090 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
