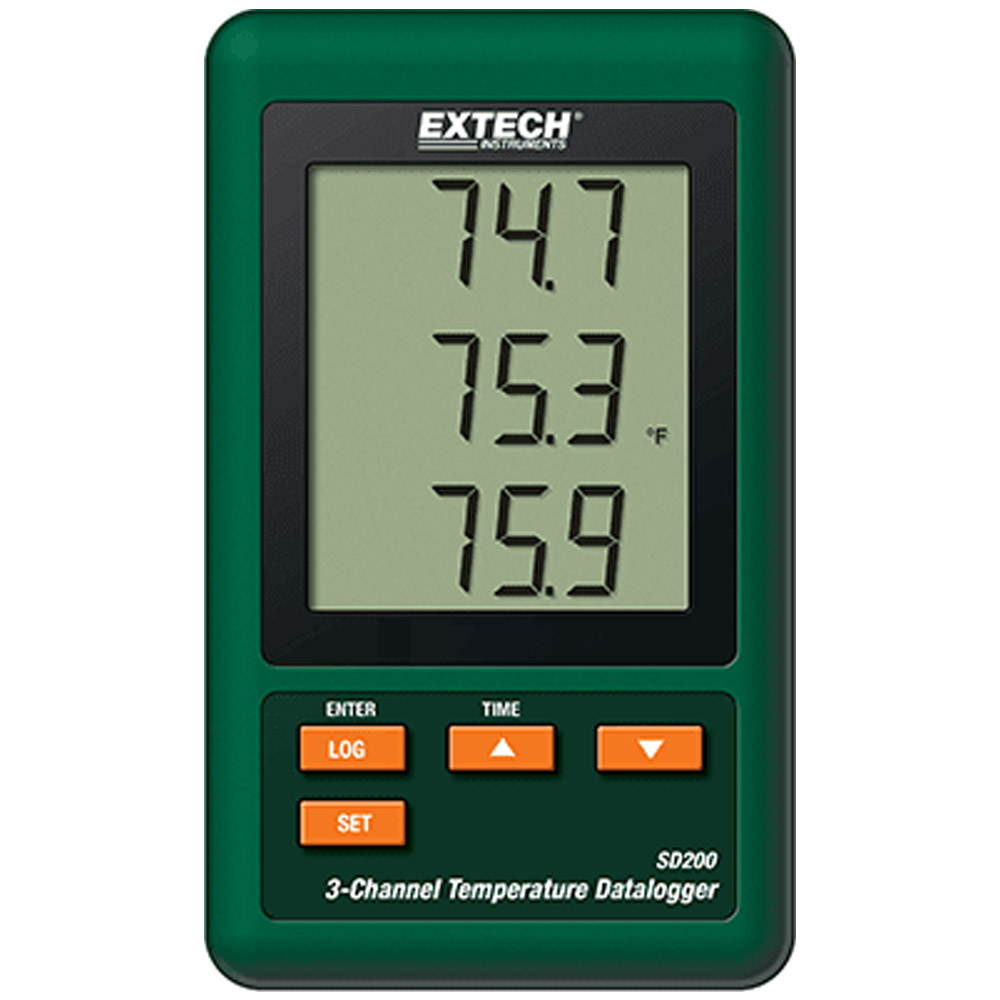

3-Channel Temperature Datalogger
Records data on an SD card in Excel format
For easy transfer to a PC for analysis.
Manufacturer Specs
| Specifications | Range | Resolution | Accuracy (%rdg+digits) |
| Temperature | -58 to 2372°F -100 to 1300°C |
0.1°F/°C | ±(0.5% + 1°F) ±(0.5% + 0.5°C) |
| Memory | 2,000K data using 2G SD memory card | ||
| Dimensions | 5.2 x 3.1 x 1.3″ (132 x 80 x 32mm) | ||
| Weight | 9.9oz (282g) | ||
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | K |
| Max Temperature | 2372 F (1300 C) |
| Min Temperature | -58 F |
| Battery Life | 1 MONTHS (730 HR) |
| # Inputs/Channels | 3 |
| Accuracy | ±(0.5% + 1°F) ±(0.5% + 0.5°C) |
| LCD Screen | Yes |
| Software Included | No |
Test Equipment General Attributes |
|
| Unique Features | Triple LCD simultaneously displays 3 Type-K Temperature channels Datalogger stores readings on an SD card in Excel format for easy transfer to a PC Selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or Auto |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Interfaces I/O | RS-232 |
| Storage | SD Card |
| Product Weight | 9.9 OUNCES (0.619 LBS) |
| Product Height | 3.1 IN |
| Product Length | 1.3 IN |
| Product Width | 5.2 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9025.11.4000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 2.75 IN |
| Shipping Length | 10.60 IN |
| Shipping Width | 5.95 IN |
