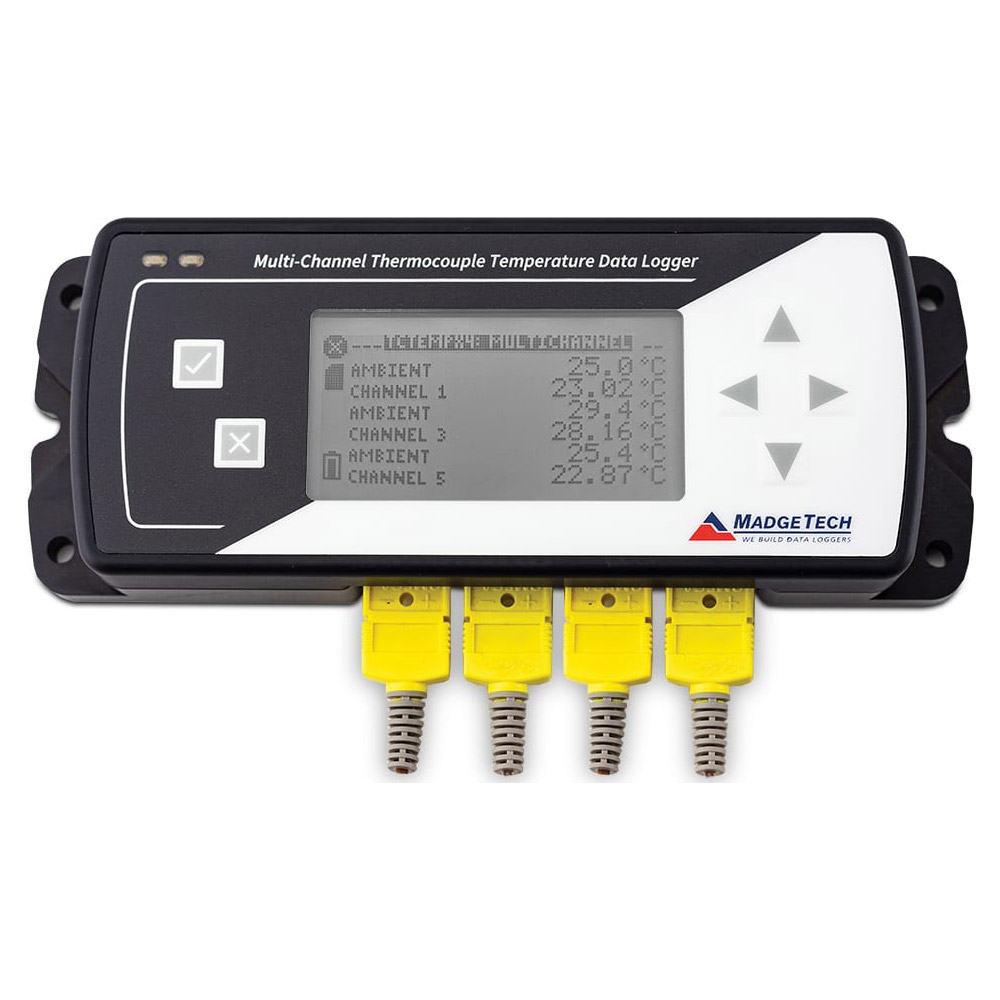

Madgetech TCTempX8LCD – 8-Channel Thermocouple Based Temperature Recorder with LCD Display
- High speed downloading
- On-screen statistics
- External power or user replaceable battery
- Low battery indicator
- User-Friendly Front Panel
The TCTempX8LCD is eight channel thermocouple data loggers with an LCD screen. The device features on-screen minimum, maximum and average statistics, as well as a user configurable screen that allows for any combination of channels to be displayed. The device accepts J, K, T, E, R, S, B and N type thermocouples.
The TCTempX8LCD is ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location. Data from all channels is simultaneously logged and displayed on-screen for real-time monitoring. It can then be downloaded to a PC for further analysis.
MadgeTech 4 Software Features
- Multiple graph overlay
- Statistics
- Digital calibration
- Zoom in/ zoom out
- Lethality equations (F0, PU)
- Mean Kinetic Temperature
- Full time zone support
- Data annotation
- Min./Max./Average lines
- Summary view
Statistics
Export to Excel
Tabular Data View
Automation
Applications
- Warehouse Monitoring
- Refrigerator Monitoring
- Medical and Pharmaceutical
- Oven Monitoring
- Smoke Houses
- Food Processing
- HVAC
- Engine Studies
Benefits
- Simple Setup and Installation
- Minimal Long-Term Maintenance
- Long-Term Field Deployment
Manufacturer Specs
| Internal Channels | |
| Temperature Range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Calibrated Accuracy | ±0.5 °C (0 °C to 50 °C), ±0.9 °F (32 °F to 131 °F) |
| Remote Channels | |
| Remote Channel Thermocouple Types | J, K, T, E, R, S, B,N |
| Thermocouple Connection | Female subminiature (SMP) |
| Cold Junction Compensation | Automatic, based on internal channel |
| Maximum Thermocouple Resistance | 1000 Ω, <100 Ω recommended |
| Thermocouple | Range (°C) | Resolution | Accuracy* |
| J | -210 to +760 | 0.1 °C | ±0.5 °C |
| K | -270 to +1370 | 0.1 °C | ±0.5 °C |
| T | -270 to +400 | 0.1 °C | ±0.5 °C |
| E | -270 to +980 | 0.1 °C | ±0.5 °C |
| R | -50 to +1760 | 0.5 °C | ±2.0 °C |
| S | -50 to +1760 | 0.5 °C | ±2.0 °C |
| B | +50 to +1820 | 0.5 °C | ±2.0 °C |
| N | -270 to +1300 | 0.1 °C | ±0.5 °C |
| *Thermocouple accuracy specified with 24 AWG diameter thermocouple wires. | |||
| General | |
| Start Modes Software | programmable immediate start or delay start up to six months in advance |
| Real Time Recording | May be used with PC to monitor and record data in |
| real time | |
| Memory(all channels enabled) | 8-channel: 262,016 readings per channel |
| LEDs | 1 per channel and 2 status LEDs |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Calibration | Digital calibration through software |
| Calibration | Date Automatically recorded within device |
| Battery Type | 9 V lithium battery included, user replaceable |
| Battery Life | 18 months typical with display off. 3 months typical with continuous display use |
| Data Format | Date and time stamped °C, °F, K, °R, mV, V |
| Time Accuracy | ±1 minute/month |
| Computer Interface | USB-A to micro USB cable (included); 460,800 baud |
| Operating System Compatibility | Windows XP SP3 or later |
| Software Compatibility | Standard Software version 4.2.21 or later Secure Software version 4.2.18 or later |
| Operating Environment | -20 ºC to +60 ºC (-4 ºF to +140 ºF), 0 %RH to 95 %RH non-condensing |
| Dimensions | 8-channel: 7.25 in x 2.70 in x 1.68 in (184.15mm x 65.58 mm x 42.672 mm) |
| Weight 8-channel: | 20.1 oz (569 g) |
| Material | Black anodized aluminum |
| Approvals | CE |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| HTS/Schedule B Number | 9025.80.5000 |
| ECCN Number | 3A992.A |
| Country of Origin | United States |
