Descripción

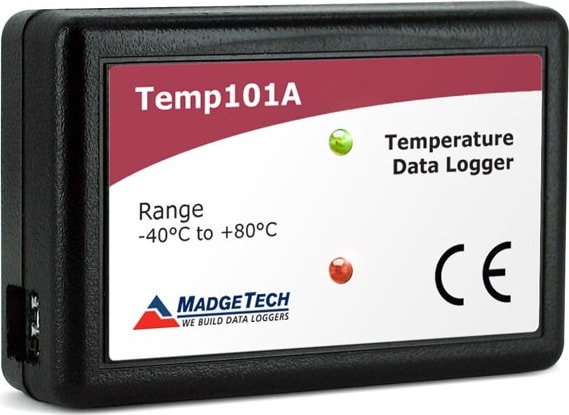

Madgetech Temp101A – Temperature Data Logger
- 10 Year Battery Life
- ±0.5 °C (±0.9 °F) Accuracy
- Multiple Start/Stop Function
- Ultra High Speed Download
- 2 Million Reading Storage Capacity
The Temp101A is second to none in the compact, portable and low cost data logger class. This device can measure and record ambient temperature from -40 °C to 80 °C and is approximately the size of a matchbox which allows for easy placement even in tight spaces. The Temp101A features a pushbutton start/ stop on the device or can be configured to start and stop using the MadgeTech Data Logger Software, with the ability to schedule a delayed start up to eighteen months in advance. These features combined with the ability to store up to 2,000,000 readings makes the Temp101A the ideal solution for long term temperature deployment and monitoring cycles. Some common applications for the Temp101A include but are not limited to cold chain and shipping applications, warehouse and facility mapping, HVAC or refrigerator and freezer monitoring.
Manufacturer Specs
| General Specifications | |
| Memory | 1,000,000 readings; software configurable memory wrap 330,000 readings in multiple start/stop mode |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Alarm | Yes |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Single/Multi-Use | Multi-use |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | ABS plastic |
| Dimensions | 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Weight | 0.0688 LBS |
| Temperature | |
| Temperature Sensor | Precision RTD Element |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (±0.9 °F) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | RTD |
| Max Temperature | 176 F (80 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 10 YEARS (87600 HR) |
| LCD Screen | No |
Test Equipment General Attributes |
|
| Product Weight | 0.05 LBS |
| Product Height | 0.6 IN |
| Product Length | 1.4 IN |
| Product Width | 2.2 IN |
| HTS/Schedule B Number | 9025.80.5000 |
| ECCN Number | 3A992.a |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
