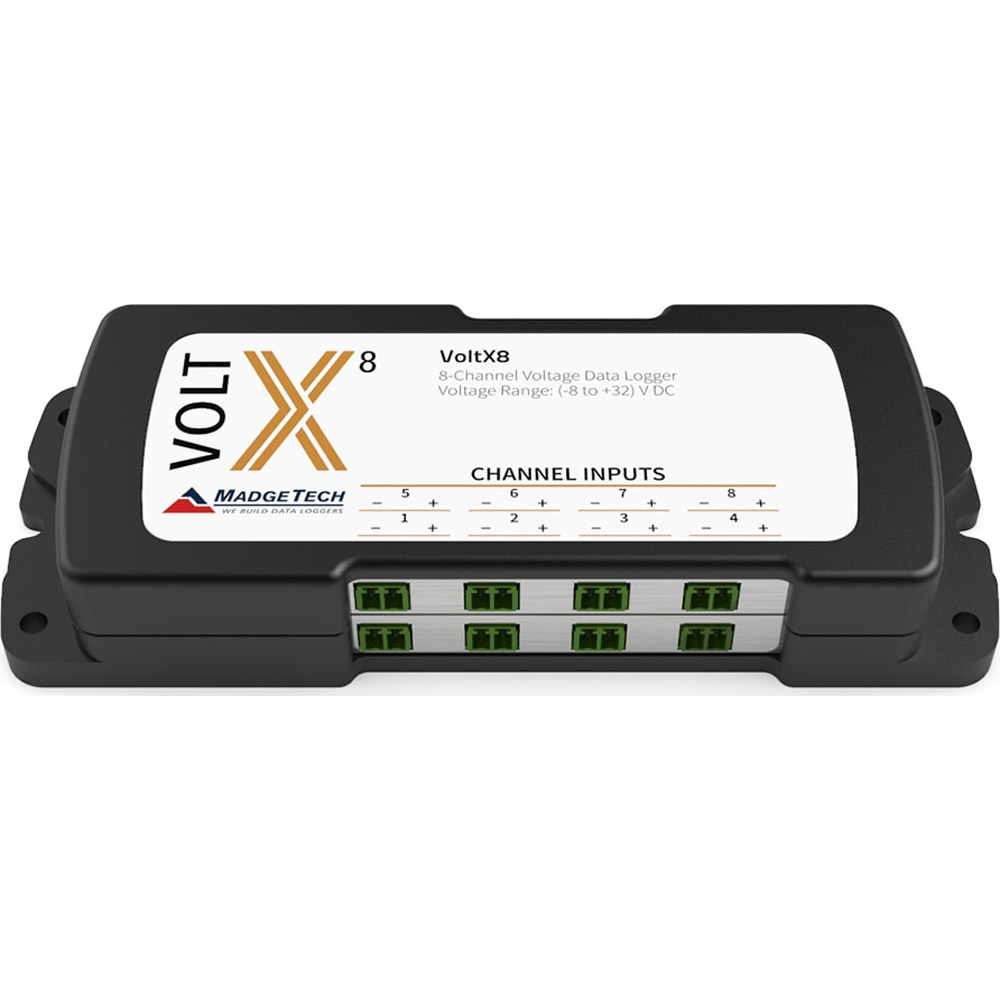

Madgetech VoltX8 – 3.2V Voltage Datalogger
8-channel, DC voltage data logger w/ 3.2V Range
- Real-time Operation
- Programmable Engineering Units
- 24-bit Readings Provide High Resolution
The new VoltX Series consists of 4, 8, 12 and 16-channel, battery powered, DC voltage data logger with a reading rate of up to 4 Hz. Improvements include the elimination of an interface cable (uses standard USB-A to Micro USB), increased memory for more readings and increased download speed.
This easy-to-use device features an 18 month typical battery life, user replaceable battery and programmable engineering units. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. To maximize memory capacity, users can enable or disable channels. For easy identification, each channel can be named with up to a ten digit title.
Using the MadgeTech Software, starting, stopping and downloading from the VoltX Series data loggers are simple and easy. Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
MadgeTech 4 Software Features
Graph View
- Multiple graph overlay
- Statistics
- Digital calibration
- Zoom in/ zoom out
- Lethality equations (F0, PU)
- Mean Kinetic Temperature
- Full time zone support
- Data annotation
- Min./Max./Average lines
- Summary view
Cooling Flags
Export to Excel
Tabular Data View
Manufacturer Specs
| General Specifications | |
| Memory | 4-channel: 698,709 readings per channel 8-channel: 349,354 readings per channel 12-channel: 232,903 readings per channel 16-channel: 174,677 readings per channel (all channels enabled) |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Channels | 4, 8, 12, 16 |
| LEDs | 1 per channel and 2 status LEDs |
| Battery Life | 18 months |
| Material | Black anodized aluminum |
| Dimensions | 4-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm) 8-channel: 2.70 in x 7.25 in x 1.22 in(65.6 mm x 184.2 mm x 31.0 mm) 12-channel: 2.70 in x 7.25 in x 1.68 in(65.6 mm x 184.2 mm x 42.7 mm) 16-channel: 2.70 in x 7.25 in x 2.14 in(65.6 mm x 184.2 mm x 54.4 mm) |
| Operating Environment | -20 ºC to +60 ºC (-4 ºF to +140 ºF),0 %RH to 95 %RH non-condensing |
| Voltage | |
| Voltage Range | ±160 mV, ±3.2 V, -8 V to +32 V |
| Voltage Resolution | 160 mV: 0.02 mV 3.2 V: 0.004 mV 32 V: 0.004 mV |
| Voltage Calibrated Accuracy | 160 mV: ±0.032 mV 3.2 mV: ±0.0032 V 32 V: ±0.02 V |
