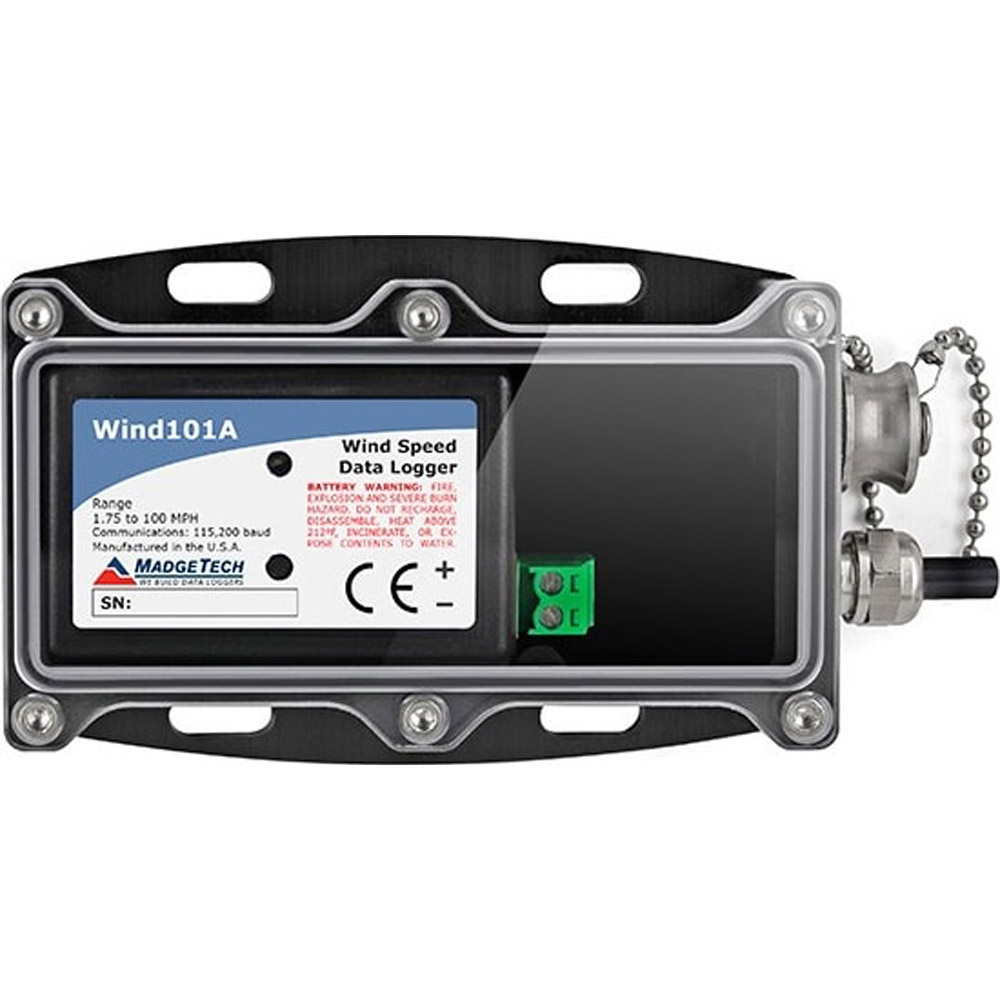

Madgetech Wind101A Datalogger
 |
|
The Wind101A is a complete system to accurately measure and record wind speed. This low cost wind speed recording system comes complete with the Wind101A (pulse) data logger, weatherproof enclosure, a three-cup anemometer and all the necessary cabling to quickly get up-and-running.
The Wind101A data logger can measure and record data for up to 500,000 readings and the storage medium is non-volatile, solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from a computer using our user-friendly software.
Manufacturer Specs
| General Specifications | |
| Memory | 500,000 readings; software configurable memory wrap 250,000 readings in multiple start/stop mode |
| Baud Rate | 115,200 |
| LED Indicators | Red and Green |
| Push-Button Start | Yes |
| Battery Life | Dependent on frequency and duty cycle. 10 months typical at 25 °C and 10 second reading rate |
| Dimensions | Data Logger: 1.4 in x 2.5 in x 0.6 in (36 mm x 64 mm x 16 mm) |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 100 %RH |
| Weight | 0.5625 LBS |
| Wind | |
| Gust Survival Speed | 214 mph (95 m/s) |
| Threshold Wind Speed | 1.75 mph (0.75 m/s) |
| Maximum Measurable Speed | 100 mph (contact factory about use at higher wind speeds) |
| Wind Resolution | 0.085 mph at a 10 second reading rate |
| Wind Accuracy | ±2 mph 0 to 10 mph, ±2.5 % of reading 10 to 100 mph |
| Rotation Diameter | 7.5 in (191 mm) |
| Mount | Accepts 0.5 in (13 mm) dia. Mast |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Power Source | Battery |
| Battery Life | 7300.01 HR |
Test Equipment General Attributes |
|
| IP Rating | IP65 |
| Product Weight | 0.5625 LBS |
| Power Supply Voltage | Battery Powered |
